MEMS VISIBLE 1XN OPTICAL SWITCH
DiCon’s MEMS Visible 1xN optical switch allows for the automated
connection between one input fiber to anyone of N output fibers.
The switch is bidirectional and can also be used in the reverse
direction as a Nx1 selector switch. Based on DiCon’s industry
proven MEMS technology, DiCon uses proprietary techniques to
optimize the performance in the visible wavelength region.
FEATURES
Proven MEMS Durability and Reliability
Lifetime > 1 Billion Switch Cycles
Compact Form Factor
APPLICATIONS
Biomedical Instrumentation
Diffuse Optical Tomography
Source or Target Selector
Specifications subject to change. Copyright © 2015 DiCon Fiberoptics, Inc. All rights reserved.
OPTICAL SPECIFICATIONS
1,2
RATING
1x2
1.6 dB max.
1x4
5
1.8 dB max.
Insertion
1x8
50 µm
2.4 dB max.
Loss
3,4
1x8
62.5 µm
3.4 dB max.
1x16
5
3.6 dB max.
50 µm
-25 dB max.
Crosstalk
6
62.5 µm
-20 dB max.
Back Reflection
-20 dB max.
Switching Time
30 ms max.
TDL
0.40 dB max.
Repeatability
7
0.04 dB max.
Durability
10
9
cycles min.
Optical Power
500 mW max.
Operating Temp
-5 to 70
o
C
Storage Temp
-40 to 85
o
C
Fiber Type
Multi-mode, Bare Fiber
1. Specifications are without connectors.
2. Aligned for broadband use, with parking state.
3. IL is measured at 632 nm, 23
o
C.
4. IL is for standard opaque model.
5. Transparent model only for 62.5 µm core fiber.
6. Power off isolation is same as crosstalk.
7. Repeatability is defined after 100 cycles.
ORDERING INFORMATION
MS2
Product
Code
MS2
MEMS Switch
Switch Configuration
1xN
1xN Switch
Specify N, where N
≤
16
I
2
C
RS232
TTL
PARAMETER
Control Interface
I2C
RS2
TTL
Wavelength Range
6
500 - 800 nm
Fiber and
Jacket
Type
50/LT
62/LT
FC
LC
SC
ST
N
1
X
50 µm core, 900 um Loose Tube
62.5 µm core, 900 um Loose Tube
FC/PC
LC/PC
SC/PC
ST/PC
NONE
1 Meter
Specify X Meters
Connector Type
Pigtail
Length
Tolerance is +/- 10 cm

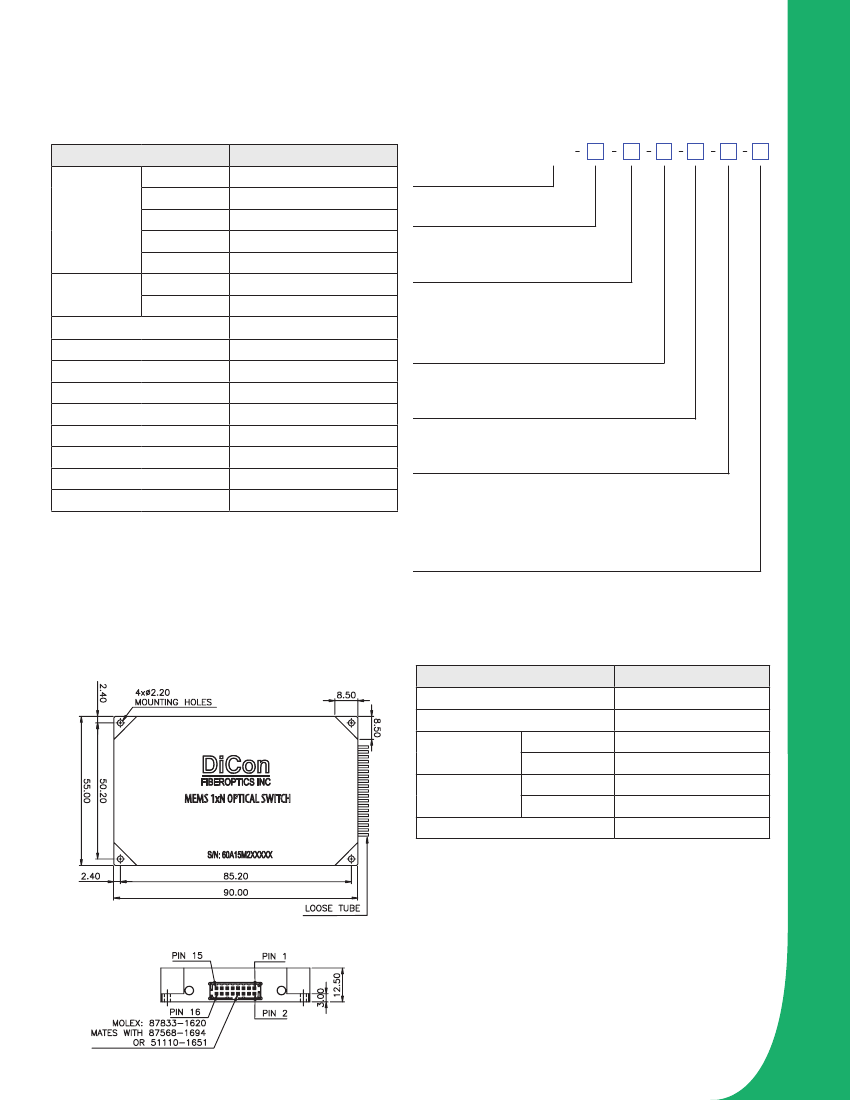

MECHANICAL DIMENSIONS
(Units: mm)
ELECTRICAL SPECIFICATIONS
PARAMETER
RATING
Latching Type
non-latching
Control Type
I
2
C, RS232 or TTL
Vcc
I2C, RS232 12 VDC
Voltage
TTL
5 VDC
Power
I2C, RS232 700 mW max.
Consumption
TTL
1.5 W max.
Connector Type
Molex 87833-1620
Top View
MEMS 1xN OPTICAL SWITCH
Side View
DiCon Fiberoptics, Inc. 1689 Regatta Blvd. Richmond, CA 94804 Tel. (510) 620-5000 Fax. (510) 620-4100 www.diconfiberoptics.com
0295A
MEMS VISIBLE 1XN OPTICAL SWITCH
SPECIFICATIONS / ORDERING INFORMATION
