412P-320302A-ROHS: DescriptionRF Coaxial Relay, DPDT, Latched, 0.32A (Coil), 12VDC (Coil), 3840mW (Coil), 12400MHz, DC Input, Panel Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size95KB，1 Pages; ManufacturerDow-Key Microwave Corporation; Environmental Compliance

Download Datasheet Parametric View All

412P-320302A-ROHS Overview

RF Coaxial Relay, DPDT, Latched, 0.32A (Coil), 12VDC (Coil), 3840mW (Coil), 12400MHz, DC Input, Panel Mount, ROHS COMPLIANT

412P-320302A-ROHS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Dow-Key Microwave Corporation
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
body width	44.5 mm
body height	58.4 mm
Body length or diameter	44.5 mm
Maximum coil current (DC)	0.32 A
Coil power	3840 mW
Coil resistance	37.5 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Maximum insertion loss	0.5 dB
Maximum isolation	60 dB
Installation features	PANEL MOUNT
Maximum operating frequency	12400 MHz
Maximum operating temperature	65 °C
Minimum operating temperature	-25 °C
physical size	44.5mm x 44.5mm x 58.4mm
Relay action	LATCHED
Relay function	DPDT
Relay type	RF COAXIAL RELAY
surface mount	NO
switching time	20 ms
Termination type	CONNECTOR
voltage standing wave ratio	1.6

Preview

Download Datasheet

View All

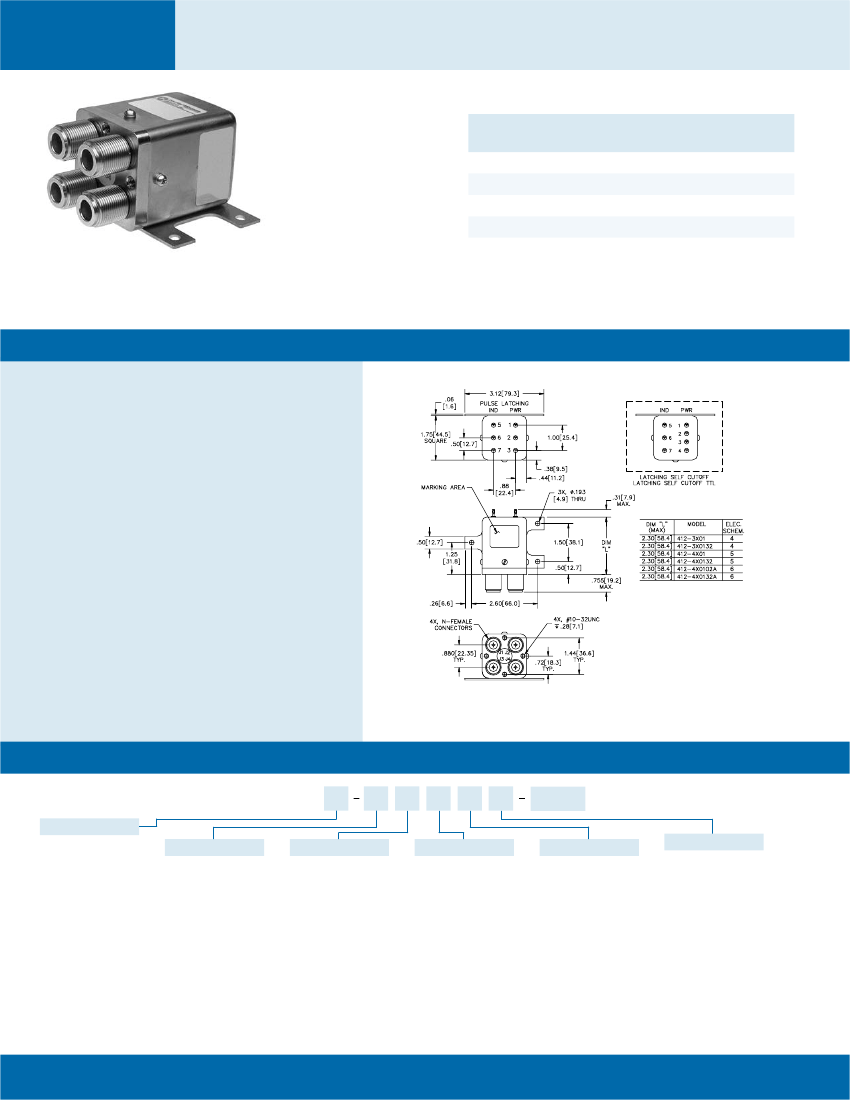

DPDT

412 Latching | N, BNC, TNC, SC

RF Characteristics

DC-2 GHz

DC-6 GHz

DC-12.4 GHz

Medium/High Power

1M Cycles

Frequency

GHz

DC-1

1-2

2-4

4-8

8-12.4

VSWR

(max)

1.15

1.20

1.25

1.45

1.60

Isolation

dB (min)

85

80

70

60

Ins. Loss

dB (max)

0.15

0.20

0.25

0.40

0.50

Note: Performance applies to N and TNC type connectors. Consult with factory for other

performances.

Specifications

Operating Voltage

(across temperature range):

12 Vdc (11-14 Vdc)

24 Vdc (20-28 Vdc)

28 Vdc (24-32 Vdc)

Coil Current (max. @ nom. Vdc & 25°C)*:

12 Vdc 320 mA

24 Vdc 240 mA

28 Vdc 185 mA

Switching Time:

20 ms maximum

Operating Temperature:

-25ºC to +65ºC (Standard)

-55ºC to +85ºC (Extended “T” Option)

Mechanical Life, Cycles:

1,000,000 minimum

Vibration, Operating:

10G RMS, 20-2000 Hz

Mechanical Shock, Non-Operating:

30 G, 1/2 Sine, 11 ms

Nominal Weight*:

14 oz. (397 g.)

* Performance and weight varies depending on selected options.

Mechanical

412-3X0132 Shown

For Electrical Schematic, see page # 2-7

Part Number Selector

412

Special Options

J

4

2

01

02

A

ROHS

Circuit Options

A = High Power

C = Special Mounting

Bracket

J = ‘D’ Connector

N = No Mounting

Bracket

P = Power Plug

R = (+) Com

S = Epoxy Seal

T = -55°C to + 85°C

W = Low PIM

2-6

Actuator

Coil Voltage

Connectors

Indicators

3 = Pulse Latching

4 = Latching Self Cutoff

7 = Pulse Latching with

Suppression Didoes

2 = 12 Vdc

3 = 28 Vdc

8 = 24 Vdc

9 = 15 Vdc

01 = N Female

02 = BNC Female

03 = TNC Female

53 = SC Female*

02 = No Indicators**

32 = Indicators

A = TTL High

**Declared only with

Circuit Options

*Consult Dow-Key for

dimensions

Note: TTL option includes suppression diode. Other options may be available

and all combinations may not be possible. Please consult with factory.

Dow-Key Microwave

www.dowkey.com

800.266.3695

AS9100/ISO-9001: 2000 Certified
