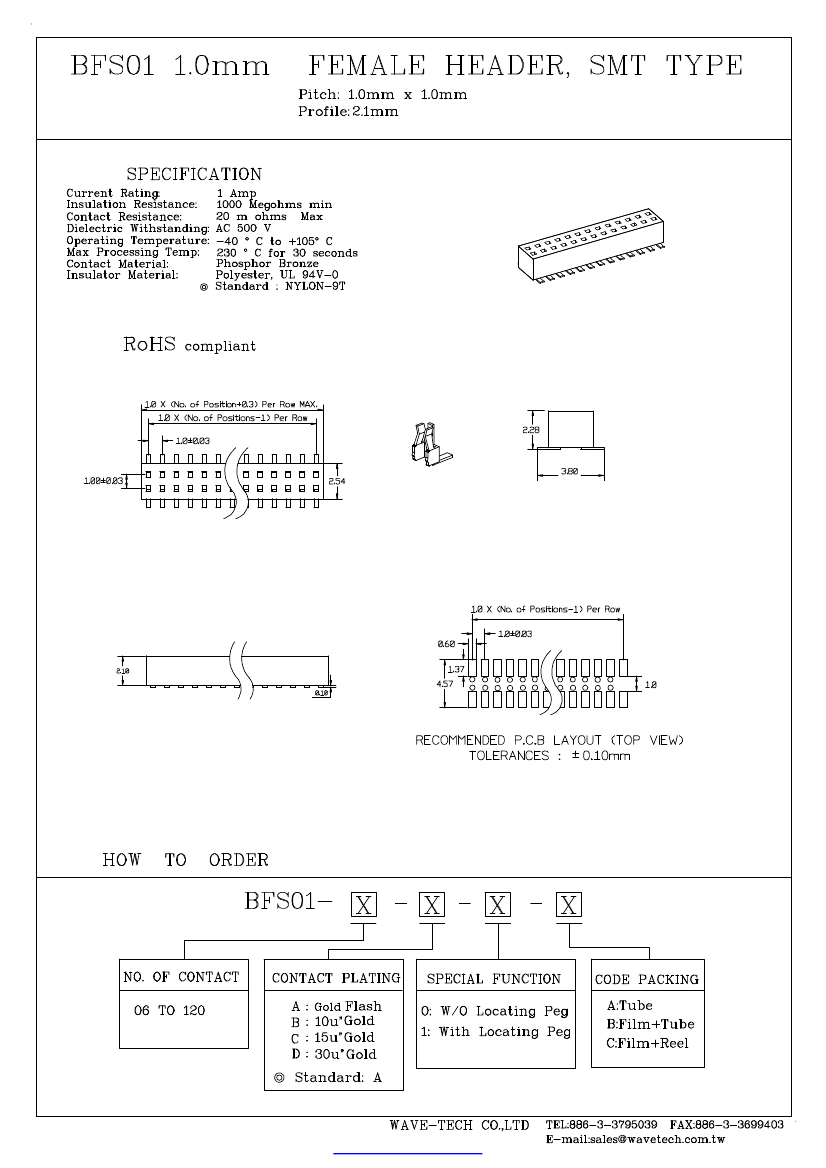

BFS01-26-A-0-A: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Plug; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerWave Tech Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

BFS01-26-A-0-A Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Surface Mount Terminal, Plug

BFS01-26-A-0-A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Wave Tech Co., Ltd.
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	TUBE PACKAGING
body width	0.1 inch
subject depth	0.083 inch
body length	0.524 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	BFS01
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	26

Preview

Download Datasheet

View All

PDF created with pdfFactory trial version

www.pdffactory.com
