2.5V HCMoS Automotive Grade SMD oscillator
Page 1 of 2
Model: FA4400 SERIES
FEATURES
•
•
•
•
•
RoHS Compliant / Pb Free / REACH Compliant
http://www.foxonline.com/need_a_sample.htm
Rev. 2/27/2012
AEC-Q200 Qualified
TS-16949 Certified
Temperature range from -40
ºC ~ +125ºC
Seam Seal
Tape and Reel
(2,000 pcs. STD)
• PART nUMbER SELECTIon
Part Number
522A-Frequency-xxxxx
521A-Frequency-xxxxx
524A-Frequency-xxxxx
523A-Frequency-xxxxx
526A-Frequency-xxxxx
Model Frequency
Number Stability
1
FA4400R
±100PPM
±100PPM
FA4400
FA4405R
±50PPM
±50PPM
FA4405
FA4406R
±25PPM
Operating
Temperature (ºC)
-40 ~ +85
-40 ~ +125
-40 ~ +85
-40 ~ +125
-40 ~ +85
7.1 Max
Frequency
Range (MHz)
2.000 ~ 75.000
2.000 ~ 48.000
2.000 ~ 75.000
2.000 ~ 48.000
2.000 ~ 75.000
#4
#1
#3
5.1 Max
#2
• ELECTRICAL CHARACTERISTICS
PARAMETERS
MAX
(unless otherwise noted)
see chart above
-55ºC ~ +150ºC
2.5V ±5%
6mA
8mA
20mA
40% ~ 60%
3
6.5nS
5nS
4nS
10% V
dd
90% V
dd
Min
2mA Min
-2mA Min
15pF
10µA
10mS
100nS
10mS
±5 PPM
260ºC / 10 Seconds
1
Au
#1
#4
5.08
1.4 Max
1.4
#2
#3
Frequency Range (F
o
)
Storage Temperature Range (T
stg
)
Supply Voltage
(V
dd
)
Input Current
(I
dd
)
2.000 ~ 9.999999 MHz
10.000 ~ 31.999999 MHz
32.000 ~ 75.000 MHz
Output Symmetry (50% V
dd
)
Rise/Fall Time (10% ~ 90% V
dd
L
eveLs
)
2.000 ~ 48.000 MHz
48.000+ ~ 49.999999 MHz
50.000 ~ 75.000 MHz
Output Voltage
(V
oL
)
(V
oh
)
Output Current
(I
oL
)
(I
oh
)
Output Load
(HCMOS)
Standby Current (I
st
)
Start-up Time
(T
s
)
Output Disable Time
2
Output Enable Time
2
Aging (per year @25C)
Maximum Soldering Temp / Time
Moisture Sensitivity Level (MSL)
Termination Finish
1
2
2.6
R e c om m e nde d
S o ld e r P a d L a y o u t
1.8
2.0
#1
5.08
P i n C o n n e c t io n s
#1 E/D #3 output
#2 GnD #4 V
D D
All dimensions are in millimeters
4.2
Inclusive of 25ºC tolerance, operating temperature range.
An internal pullup resistor from pin 1 to pin 4 allows active output if pin 1 is left open.
3
45/55 symmetry available on an inquiry basis.
Notes: A 0.01µF bypass capacitor should be placed between V
dd
(Pin 4) and GND (Pin 2) to
minimize power supply line noise.
Dimensional drawing is for reference to critical specifications defined by size measurements.
Certain non-critical visual attributes, such as side castellations, reference pin shape, etc. may
vary. All specifications subject to change without notice.
• EnAbLE / DISAbLE FUnCTIon
OUTPUT (Pin 3)
(Pin 1)
ACTIVE
OPEN
2
ACTIVE
'1' Level V
ih
≥
80% V
dd
High Z
'0' Level V
iL
≤
20% V
dd
Fox Electronics
5570 Enterprise Parkway
Fort Myers, Florida 33905
USA +1.239.693.0099
FOXonline.com
FAX +1.239.693.1554
An Integrated Device Technology, Inc. company
2.5V HCMoS Automotive Grade SMD oscillator
Page 2 of 2
Model: FA4400 SERIES
RoHS Compliant / Pb Free / REACH Compliant
http://www.foxonline.com/need_a_sample.htm
Rev. 2/27/2012

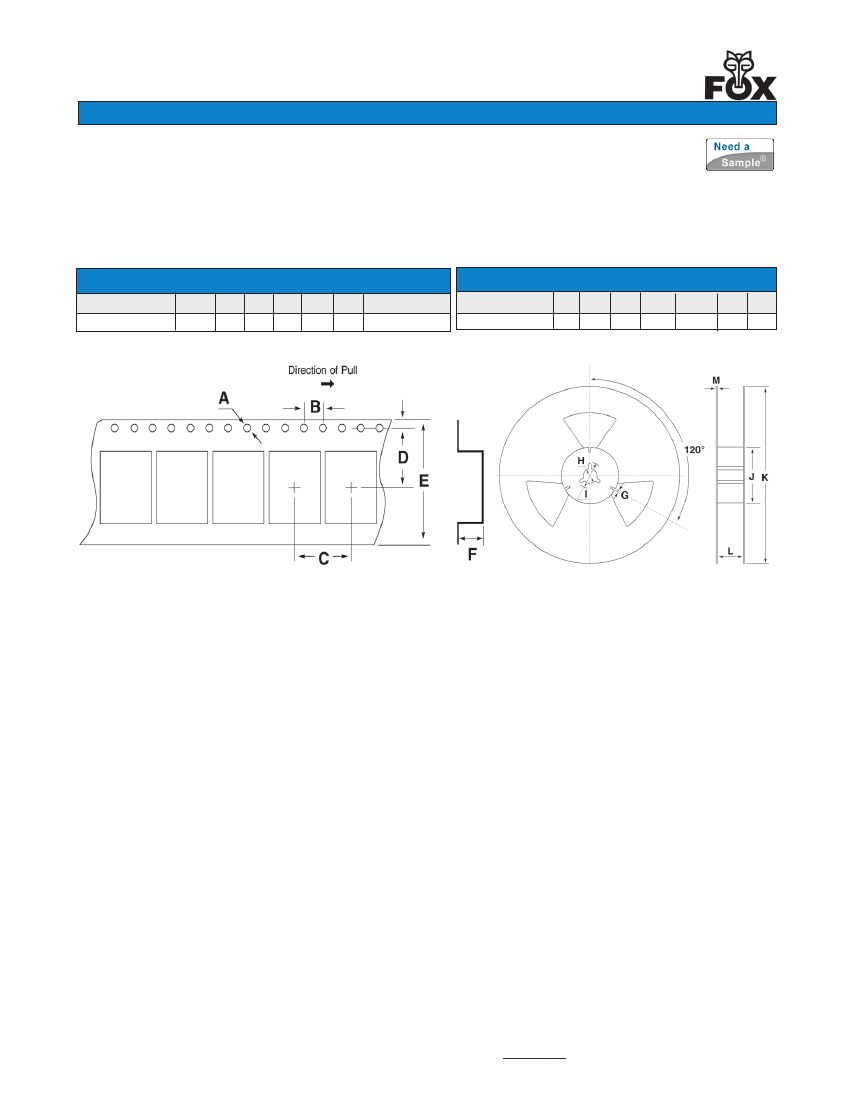

• TAPE SPECIFICATIonS
(millimeters)
• REEL SPECIFICATIonS
(millimeters)
G H
I
J
K
L M
b
C D E
F
STD Reel QTY
MoDEL
MoDEL
A
FA4400 Series
2.0
∅13 ∅21 ∅80 ∅255
17.5 2.0
2,000
FA4400 Series
∅1.5
4.0 8.0 7.5 16.0 2.15
PRODUCT USE
Performance specifications and the operating parameters of the described products are determined in the independent
state and are not guaranteed to perform the same way when installed in customer products.
FOX products are not intended for use in life support systems or similar devices where the failure or malfunction of a FOX
product can be reasonably expected to significantly affect the health or safety of users. Anyone using a FOX product in such
a manner does so at their own risk, absent an express, written agreement by FOX.
Fox Electronics
5570 Enterprise Parkway
Fort Myers, Florida 33905
USA +1.239.693.0099
FOXonline.com
FAX +1.239.693.1554
An Integrated Device Technology, Inc. company
