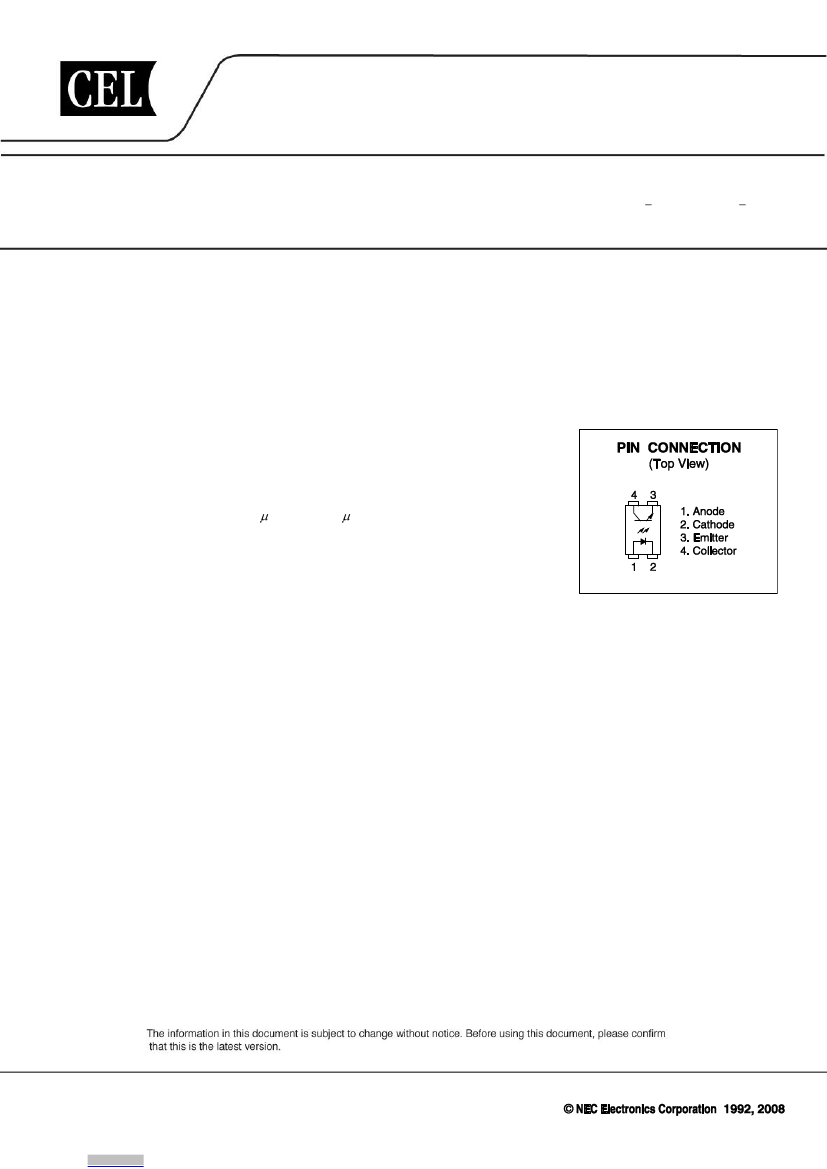

PHOTOCOUPLER
PS2561-1,PS2561L-1,PS2561L1-1,PS2561L2-1
HIGH ISOLATION VOLTAGE
SINGLE TRANSISTOR TYPE
MULTI PHOTOCOUPLER SERIES
DESCRIPTION
The PS2561-1 is optically coupled isolators containing a GaAs light emitting diode and an NPN silicon
phototransistor.
The PS2561-1 is in a plastic DIP (Dual In-line Package) and the PS2561L-1 is lead bending type (Gull-wing) for
surface mount.
The PS2561L1-1 is lead bending type for long creepage distance.
The PS2561L2-1 is lead bending type for long creepage distance (Gull-wing) for surface mount.
NEPOC Series
FEATURES
• High Isolation voltage (BV = 5 000 Vr.m.s.)
• High collector to emitter voltage (V
CEO
= 80 V)
• High current transfer ratio (CTR = 200% TYP.)
• High-speed switching (t
r
= 3 s TYP., t
f
= 5 s TYP.)
• Ordering number of taping product: PS2561L-1-E3, E4, F3, F4, PS2561L2-1-E3, E4
• Safety standards
• UL approved: No. E72422
• CSA approved: No. CA 101391
• BSI approved: No. 7112/7420
• SEMKO approved: No. 303059, 307244
• NEMKO approved: No. P03200272, P03200747
• DEMKO approved: No. 312341, 312340
• FIMKO approved: No. FI 10620, FI 11898
<R>
• DIN EN60747-5-2 (VDE0884 Part2) approved: No. 40008862 (Option)
APPLICATIONS
• Power supply
• Telephone/FAX.
• FA/OA equipment
• Programmable logic controller
Document No. PN10234EJ04V0DS (4th edition)
Date Published December 2008 NS
The mark <R> shows major revised points.
The revised points can be easily searched by copying an "<R>" in the PDF file and specifying it in the "Find what:" field.
Downloaded from
Arrow.com.

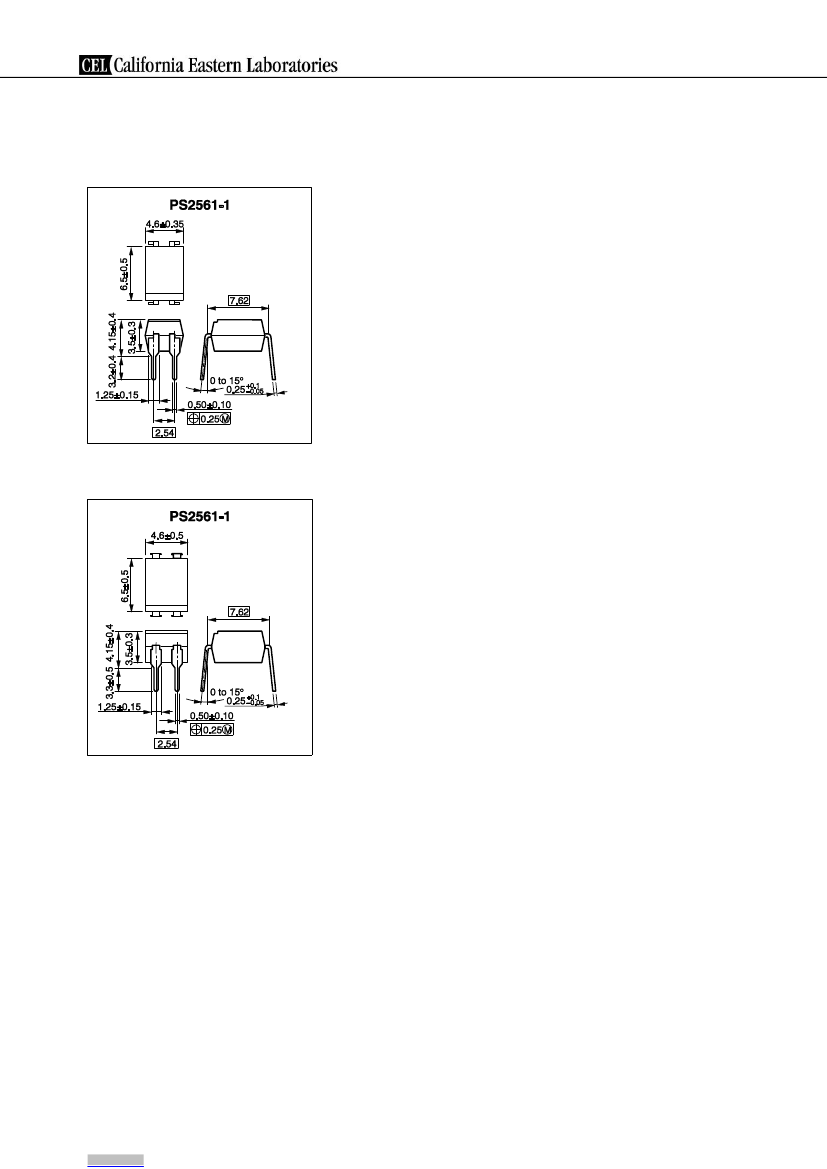

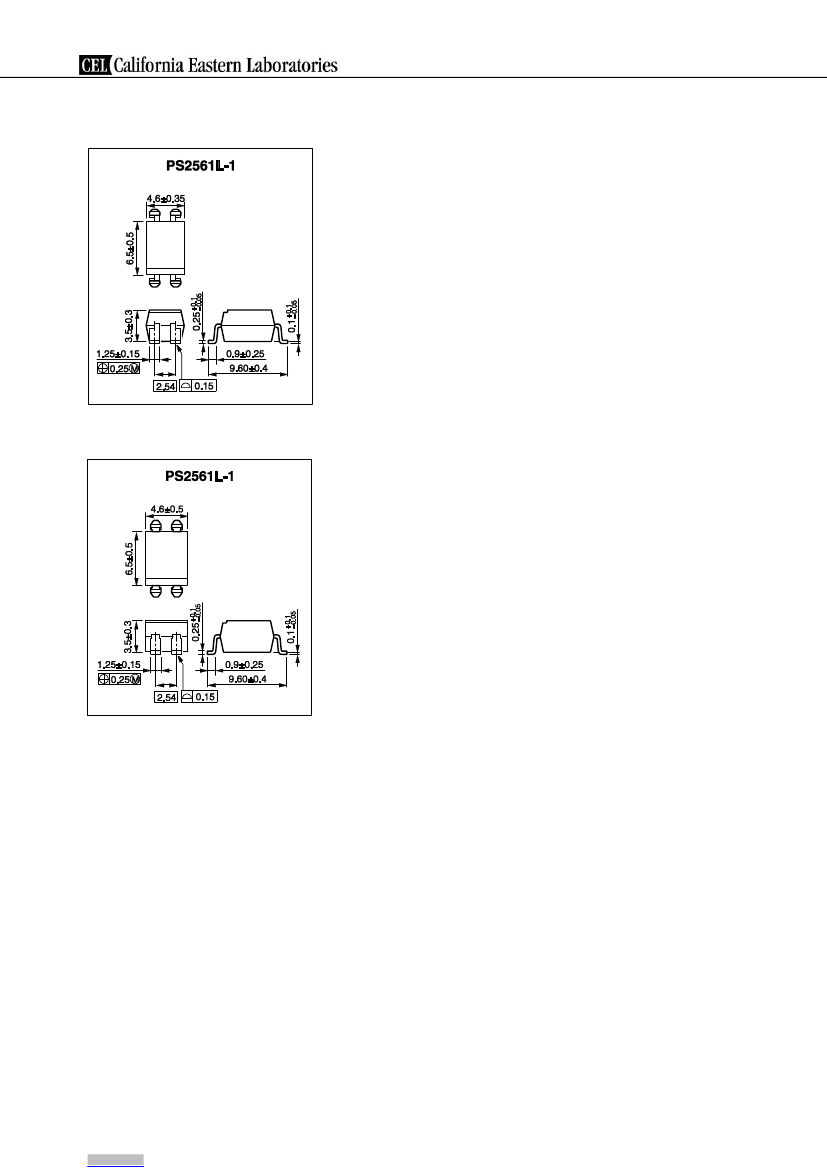

PS2561-1,PS2561L-1,PS2561L1-1,PS2561L2-1

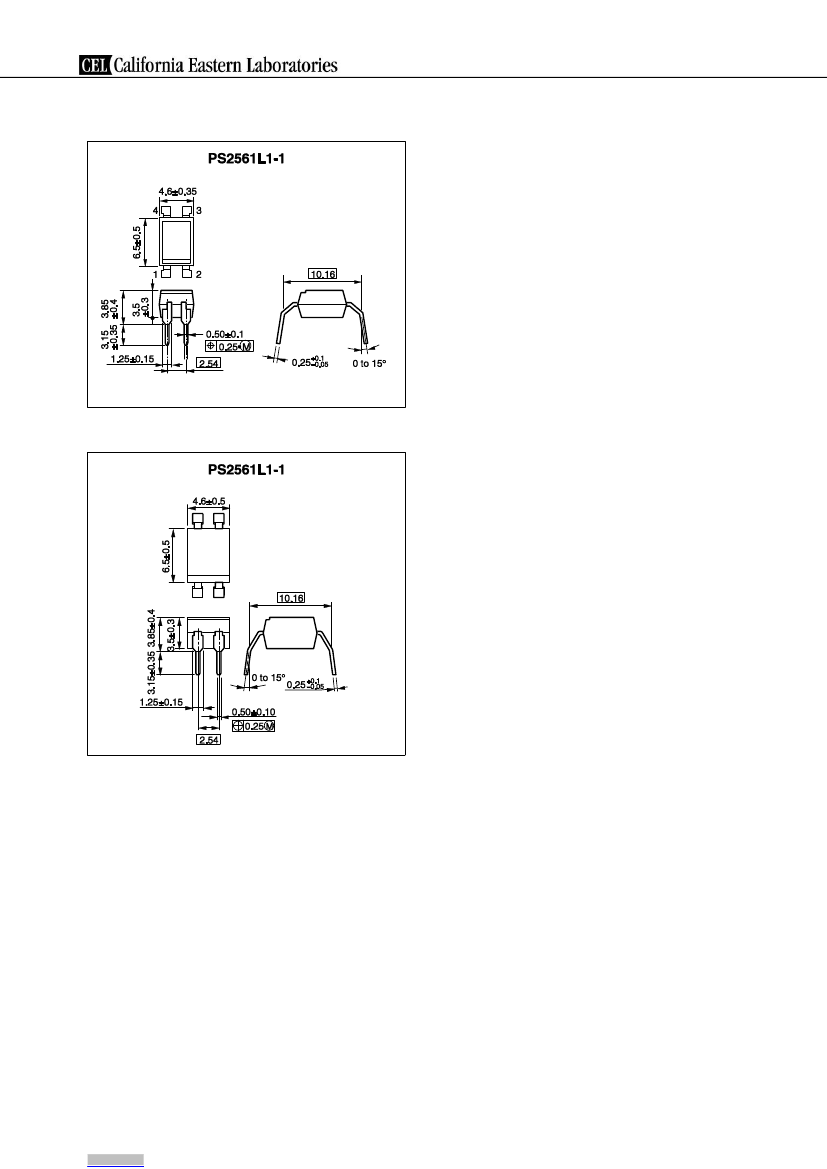

Lead Bending Type For Long Creepage Distance (New Package)
Lead Bending Type For Long Creepage Distance
4
Data Sheet PN10234EJ04V0DS
Downloaded from
Arrow.com.
PS2561-1,PS2561L-1,PS2561L1-1,PS2561L2-1

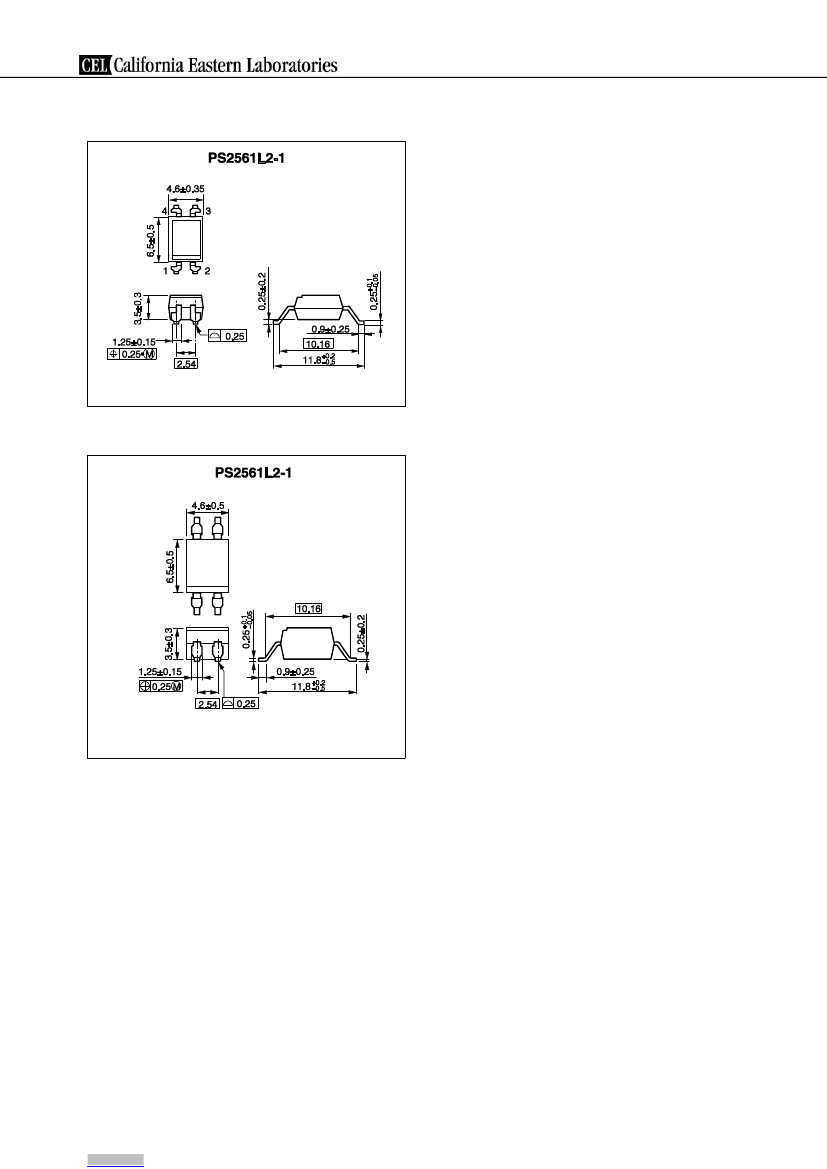

Lead Bending Type For Long Creepage Distance (Gull-Wing) (New Package)
Lead Bending Type For Long Creepage Distance (Gull-Wing)
Data Sheet PN10234EJ04V0DS
5
Downloaded from
Arrow.com.
