SLOT-1-36 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> SLOT-1-36

Preview

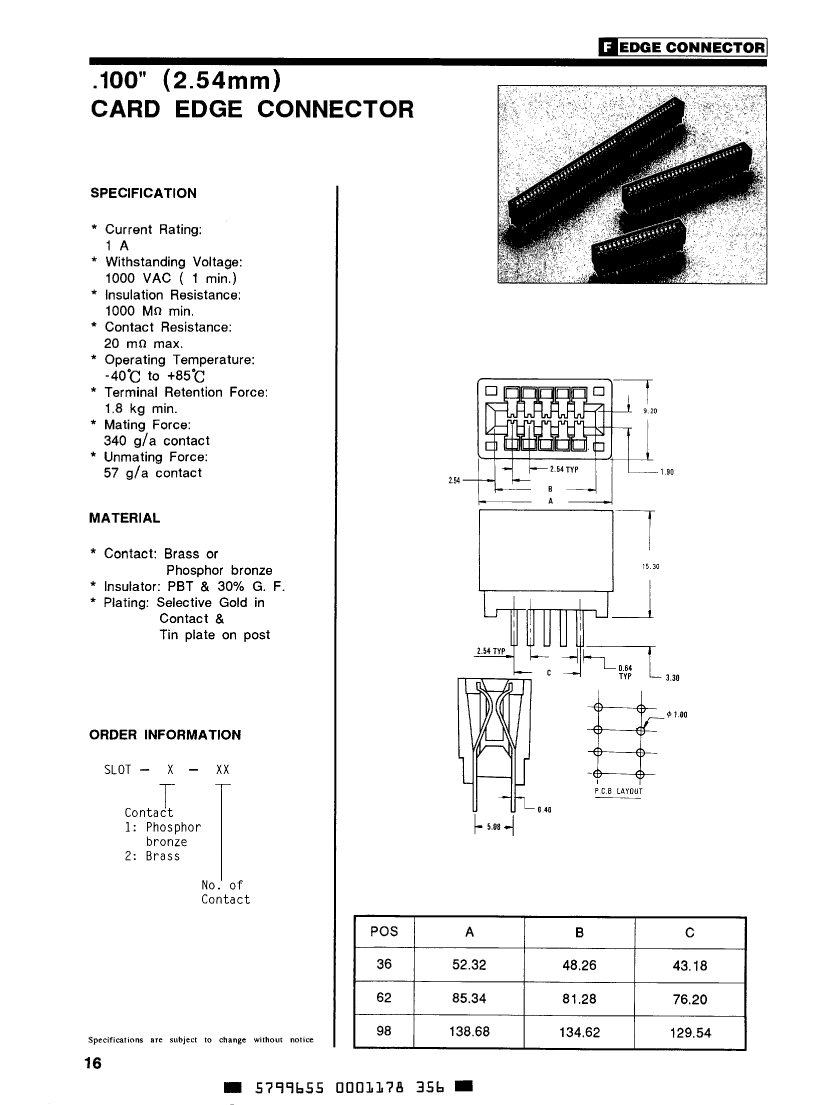

SLOT-1-36: DescriptionCard Edge Connector, 36 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size76KB，1 Pages; ManufacturerMarktech; Websitehttps://www.marktechopto.com/

Download Datasheet Parametric Compare View All

SLOT-1-36 Overview

Card Edge Connector, 36 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,

SLOT-1-36 Parametric

Parameter Name	Attribute value
Maker	Marktech
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.362 inch
subject depth	0.602 inch
body length	2.059 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V
maximum insertion force	3.336 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	SLOT
Plug contact pitch	0.1 inch
Match contact row spacing	0.075 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Rated current (signal)	1 A
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
Evacuation force-minimum value	.556 N

Preview

Download Datasheet

View All

SLOT-1-36 Related Products

	SLOT-1-36	SLOT-2-36	SLOT-1-98	SLOT-2-98
Description	Card Edge Connector, 36 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,	Card Edge Connector, 36 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,	Card Edge Connector, 98 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,	Card Edge Connector, 98 Contact(s), 2 Row(s), Straight, 0.1 inch Pitch, Solder Terminal, Receptacle,
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	0.362 inch	0.362 inch	0.362 inch	0.362 inch
subject depth	0.602 inch	0.602 inch	0.602 inch	0.602 inch
body length	2.059 inch	2.059 inch	5.459 inch	5.459 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU
Contact material	PHOSPHOR BRONZE	BRASS	PHOSPHOR BRONZE	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V
maximum insertion force	3.336 N	3.336 N	3.336 N	3.336 N
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	SLOT	SLOT	SLOT	SLOT
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Match contact row spacing	0.075 inch	0.075 inch	0.075 inch	0.075 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of rows loaded	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Rated current (signal)	1 A	1 A	1 A	1 A
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.13 inch	0.13 inch	0.13 inch	0.13 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	36	36	98	98
Evacuation force-minimum value	.556 N	.556 N	.556 N	.556 N
