Multilayer Ceramic Capacitors (High dielectric type) for Automotive (BODY & CHASSIS, INFOTAINMENT) / Industrial Applications
AMK316AB7226KLHT
Features
Item Summary
22uF±10%, 4V,
X7R, 1206/3216 (EIA/JIS)
Lifecycle Stage
Mass Production
AEC-Q200 qualified
Standard packaging quantity (minimum)
Taping Embossed 2000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
22 uF ± 10 %
1206/3216
4V
10 %
X7R
-55 to +125 ℃
150 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
3.2 ±0.20 mm
1.6 ±0.20 mm
1.6 ±0.20 mm
0.50 +0.35/-0.25 mm
2018.10.01
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

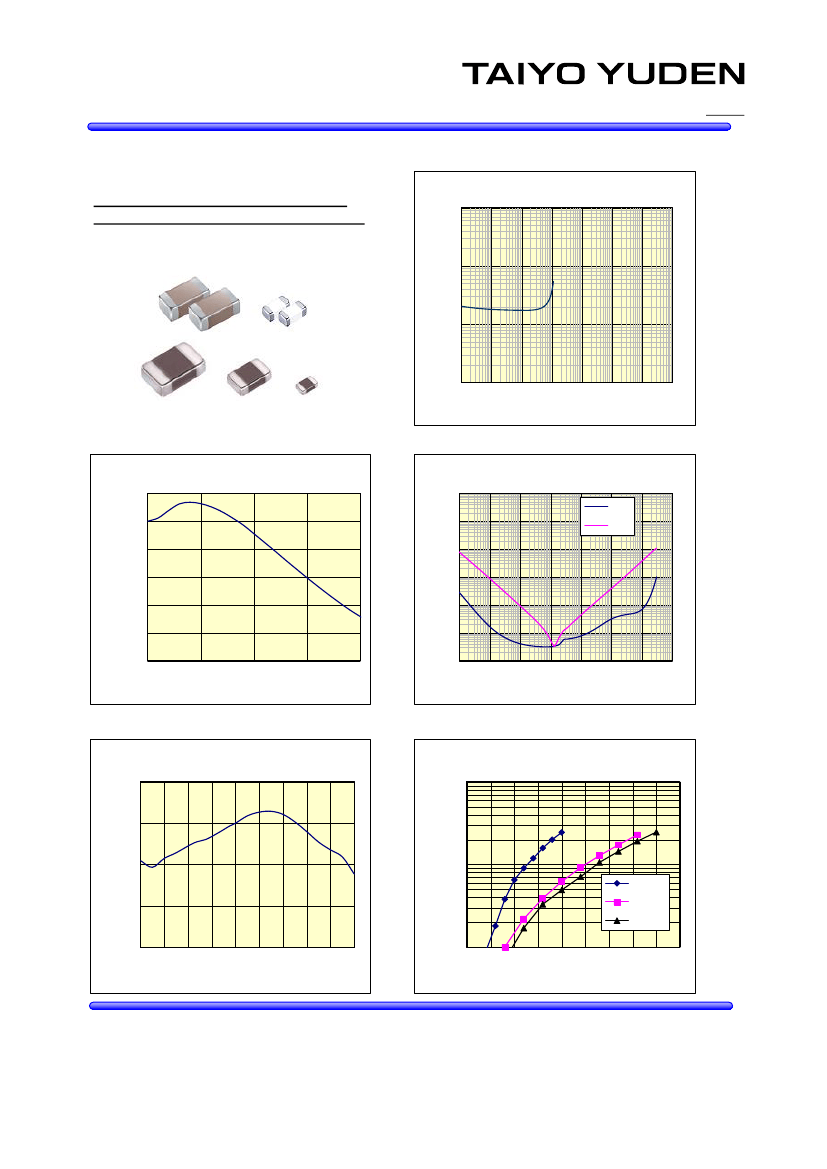

Multi Layer Ceramic Capacitor
○AMK316AB7226KLHT
4V 3216 X7R 22uF +/- 10% t=1.8mmMAX
4V 1206 X7R 22uF +/- 10% t=0.071inchMAX
1000
-Electrical Characteristics Data-
17B08
RoHS compliance product
AMK316AB7226KLHT
Capacitance Freq.
Capacitance[uF]
100
10
1
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
AMK316AB7226KLHT
DC Bias Char.
10
0
-10
1000
100
AMK316AB7226KLHT
Impedance,ESR Freq.
ESR
Z
-20
-30
-40
-50
Z,ESR[OHM]
0
1
2
3
DC Bias Voltage[V]
4
10
1
dC/C[%]
0.1
0.01
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
AMK316AB7226KLHT
Capacitance Temp.
10
100
AMK316AB7226KLHT
Ripple Current
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
1
0
0.5
1
1.5 2 2.5 3 3.5
Ripple Current[Arms]
4
4.5
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
Notice for TAIYO YUDEN Products
for
High Quality Equipment
