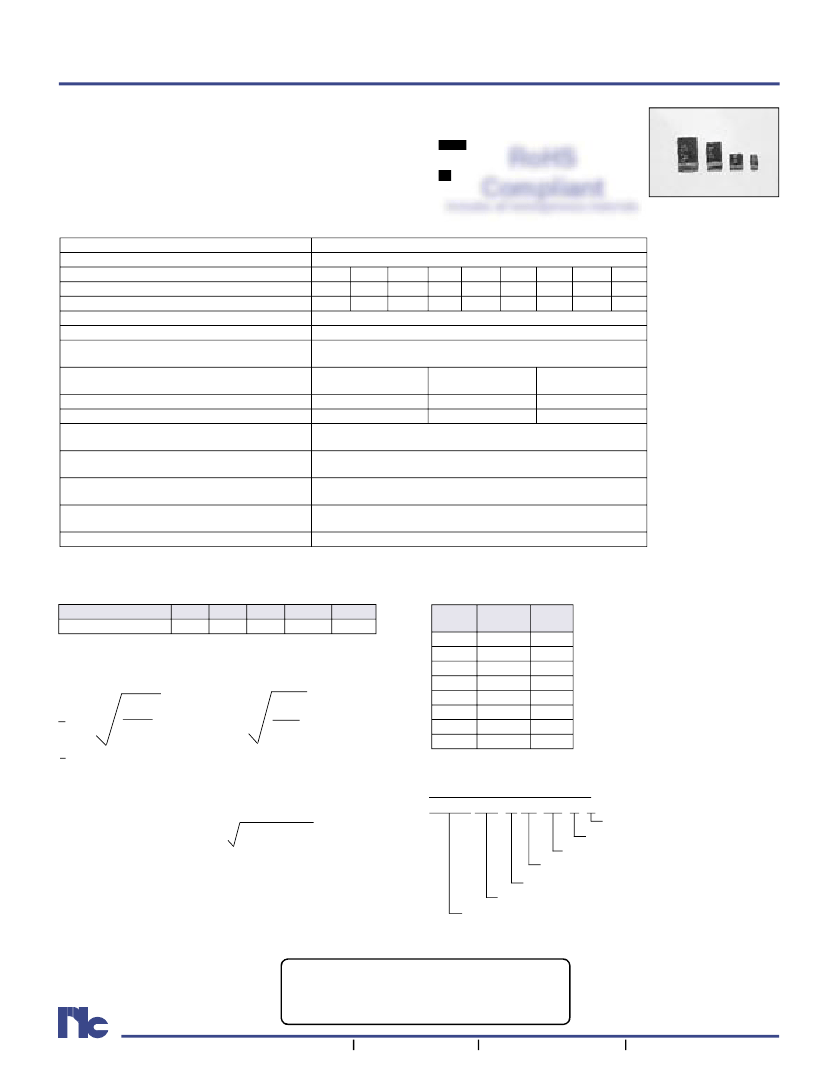

Tantalum Chip Capacitors
FEATURES
• MOLDED CONSTRUCTION FOR HIGH SOLDERING HEAT RESISTANCE
• NINE CASE SIZES, MANY NEW EXTENDED RANGE RATINGS
• BOTH FLOW AND REFLOW SOLDERING APPLICABLE
• TAPE & REEL PACKAGING COMPATIBLE WITH AUTOMATIC
PICK & PLACE EQUIPMENT
includes all homogeneous materials
NTC-T Series
RoHS
Compliant
SPECIFICATIONS & PERFORMANCE CHARACTERISTICS
*See Part Number System for Details
Capacitance Range
0.1µF to 680µF
Capacitance Tolerance
±20% (M), ±10% (K)
Rated Voltage Range @ 85°C (Vdc)
2.5
4.0
6.3
10
16
20
25
35
50
Surge Voltage Rating @ 85°C (Vdc)
3.3
5.2
8.0
13
20
28
33
46
85
Derated Voltage @ 125°C (Vdc)
1.8
2.5
4.0
6.3
10
13
16
22
32
Operating Temperature Range
-55°C to +85°C (to +125°C with Derating)
Dissipation Factor
See Case Size and Specifications Table
Leakage Current @ +25°C
Not More Than 0.01CV or 0.5µA, whichever is greater
(After 5 Minutes at Rated Voltage)
Capacitance Change
-55°C
+85°C
+125°C
With Temperature
A2, A, B2, B, C, D & E Case Size
∆C
- 12%
∆C
± 12%
∆C
± 12%
J & P Case Size
∆C
- 20%
∆C
± 20%
∆C
± 20%
Resistance to Soldering Heat
∆C
± 5%* Max, LC = Less than initial specification.
(+260°C for 5 Seconds)
DF = Less than initial specification
Moisture Resistance
∆C
± 5%* Max, LC = Less than initial specification.
(500 hours; 90~95% RH @ 40°C)
DF = 150% of initial specification
Temperature Cycling
∆C
± 5%* Max, LC = Less than initial specification.
(5 cycles; -55°C ~ +125°C)
DF = Less than initial specification
Load Life (at Rated Voltage)
∆C
± 10%* Max, LC = 125% of initial specification.
(2,000 hours @ 85°C)
DF = Less than initial specification
1%/1000 hours at 60% confidence level (+85°C)
Base Failure Rate (1.0Ω/Volt)
*±12% ~ ±15% for extended values, ±20% for J & P case size values
POWER DISSIPATION @ 25°C (FREE AIR) &
EQUIVALENT SERIES INDUCTANCE (ESL)
Case Pd Max.
ESL
Code
(W)
(nH)
P
0.025
1.00
A2
0.050
1.20
A
0.070
1.20
B2
0.070
1.50
B
0.080
1.50
C
0.110
2.70
D
0.150
3.00
E
0.165
3.00
RIPPLE CURRENT CORRECTION FACTOR:
Ambient Temperature 25°C +55°C +85°C +105°C +125°C
Correction Factor
1.0
0.90 0.80
0.40
0.15
RIPPLE CURRENT/VOLTAGE RATINGS:
Tmax. =
Pd
ESR
Tmax. = Ripple Current rating (Arms)
Pd = Power dissipation (watt)
ESR = Equivalent series resistance (ohm)
V max. = Ripple voltage rating (Vrms)
Z = The capacitors impedance (ohm) =
(ESR)
2
+(XL-XC)
2
V max. = Z
•
Pd
ESR
PART NUMBER SYSTEM
NTC-T 106 M 16 TR B F
Series
RoHS Compliant
Case Code
Packaging: TR=Tape/Reel
Voltage
Tolerance Code: K=±10%, M=± 20%
Capacitance Code
®
Please review the notes on correct use, safety and precautions found on
pages T10
&
T11
of NIC’s
Electrolytic Capacitor catalog.
Also found at
www.niccomp.com/precautions
If in doubt or uncertainty, please review your specific application - process details with
NIC’s technical support personnel:
tpmg@niccomp.com
PRECAUTIONS
152
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
