URZ2D151MHH1TN: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 150uF, Through Hole Mount, RADIAL LEADED, CAN; CategoryPassive components capacitor; File Size47KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric View All

URZ2D151MHH1TN Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 20% +Tol, 20% -Tol, 150uF, Through Hole Mount, RADIAL LEADED, CAN

URZ2D151MHH1TN Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Nichicon
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	150 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e0
leakage current	1.3 mA
Manufacturer's serial number	RZ
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	AMMO PACK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
ripple current	510 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WIRE

Preview

Download Datasheet

View All

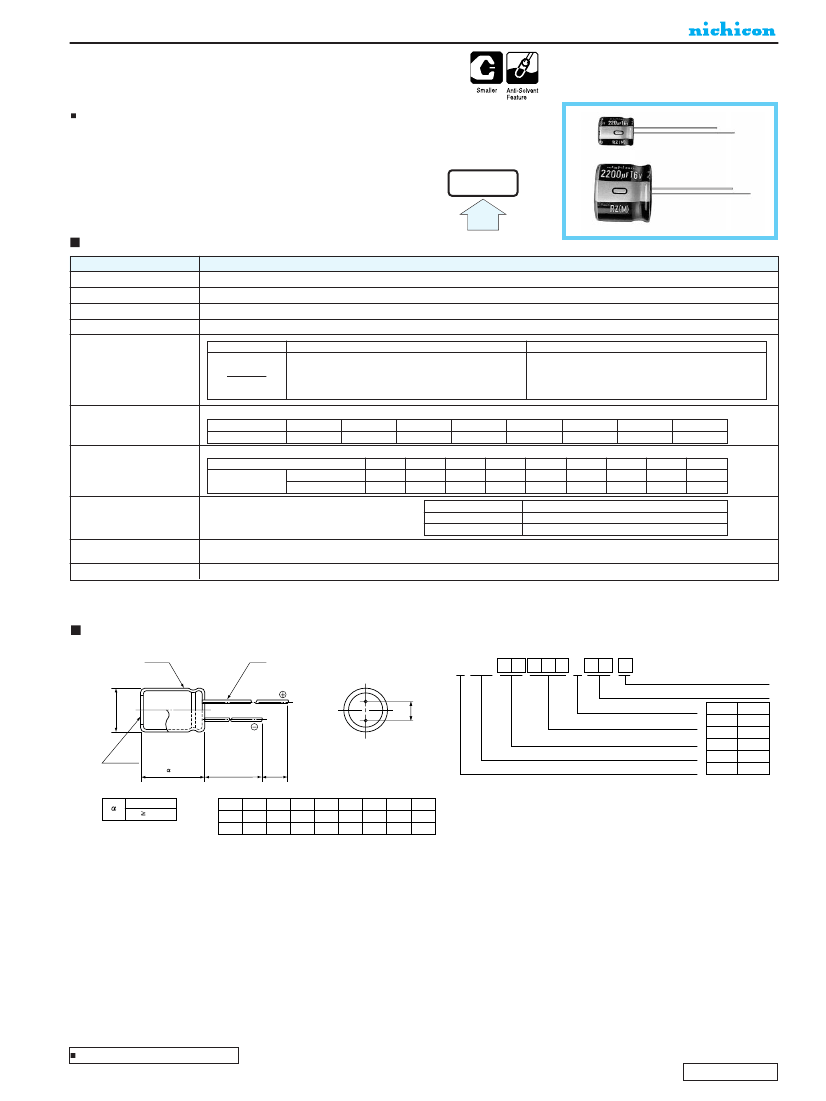

ALUMINUM ELECTROLYTIC CAPACITORS

RZ

Compact & Low-Profile Sized, Wide Temperature Range

series

(Through 100V only)

Very small case sizes same as RS series, but operating over wide

temperature range of —55 (—40) ~ +105˚C.

RZ

High

Temperature

Specifications

Item

Category Temperature Range

Rated Voltage Range

Rated Capacitance Range

Capacitance Tolerance

RS

Performance Characteristics

—55 ~ +105˚C (6.3 ~ 50V) , —40 ~ +105˚C (160 ~ 400V)

6.3 ~ 400V

0.1 ~ 10000µF

±20% at 120Hz, 20˚C

Rated voltage (V

)

6.3 ~ 50

After 1 minute's application of rated voltage, leakage current

is not more than 0.03CV or 4 (µA), whichever is greater.

After 2 minutes' application of rated voltage, leakage current

is not more than 0.01CV or 3 (µA), whichever is greater.

160 ~ 400

After 1 minute's application of rated voltage,

I

= 0.04CV+100 (µA) or less

Leakage Current

For capacitance of more than 1000µF, add 0.02 for every increase of 1000µF. Measurement frequency : 120Hz, Temperature : 20˚C

tan

δ

Rated voltage

(

V

)

tan

δ (

MAX.

)

6.3

0.28

10

0.24

6.3

5

10

16

0.20

10

4

8

25

0.16

16

3

6

25

2

4

35

0.14

35

2

3

50

0.12

50

2

3

160 ~ 250

0.20

160 • 200

3

4

250

3

6

400

0.25

400

6

10

Measurement frequency : 120Hz

Stability at Low Temperature

Rated voltage (V)

Z—25˚C / Z+20˚C

Impedance ratio

ZT/Z20 (MAX.

)

Z—40˚C / Z+20˚C

Endurance

After 1000 hours' application of rated voltage

at 105˚C, capacitors meet the characteristic

requirements listed at right.

Capacitance change

tan

δ

Leakage current

Within ±20% of initial value

200% or less of initial specified value

Initial specified value or less

Shelf Life

Marking

After leaving capacitors under no load at 105˚C for 1000 hours, they meet the specified

value for endurance characteristics listed above.

Printed with white color letter on black sleeve.

Radial Lead Type

Sleeve

Type numbering system (Example : 10V 330µF)

φ

d

1

2

3

4

5

6

7

8

9 10 11

12

Case size

UR Z 1 A 3 3 1 MNH

Configuration

P±

0.5

φD

+

0.5 MAX

Capacitance tolerance(±20%)

Rated Capacitance(330µF)

Rated voltage(10V)

φ

D

5

•

6.3

8,10

×

9

10

×

12.5

12.5~18

20

Code

CH

NH

PH

HH

RH

Pressure

relief vent

(φ8UP)

Series name

L

+

MAX

15

MIN

4

MIN

Type

(φD<20)1.5

φD

5 6.3 8 10 12.5

φD

18 20 6.3

16

5

P(φD 20)2.0 3.5 5.0 5.0 7.5 7.5 10.0

2.0 2.5

P

2.0

2.5

φd

0.5 0.5 0.6 0.6 0.6

φd

0.8 1.00.5

0.8 0.5

(φD<20)1.5

(φD 20)2.0

8

3.5

0.6

10

5.0

0.6

12.5

5.0

0.6

16

7.5

0.8

18

7.5

0.8

20

10.0

1.0

Please refer to page 18, 19, 20 about the formed or taped product spec.

Please refer to page 3 for the minimum order quantity.

Dimension table in next page.
