M55342K11B200ERWA

Description
Fixed Resistor, Metal Glaze/thick Film, 0.05W, 200000ohm, 30V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, HALOGEN FREE
CategoryPassive components    The resistor
File Size101KB,4 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

M55342K11B200ERWA Overview

Fixed Resistor, Metal Glaze/thick Film, 0.05W, 200000ohm, 30V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0402, CHIP, HALOGEN FREE

M55342K11B200ERWA Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerVishay
package instructionCHIP
Reach Compliance Codecompliant
ECCN codeEAR99
Other featuresANTI-SULFUR
structureRectangular
JESD-609 codee0
Installation featuresSURFACE MOUNT
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-65 °C
Package height0.33 mm
Package length0.99 mm
Package formSMT
Package width0.51 mm
method of packingWAFFLE TRAY
Rated power dissipation(P)0.05 W
Rated temperature70 °C
GuidelineMIL-PRF-55342
resistance200000 Ω
Resistor typeFIXED RESISTOR
size code0402
surface mountYES
technologyMETAL GLAZE/THICK FILM
Temperature Coefficient100 ppm/°C
Terminal surfaceTin/Lead (Sn80Pb20) - with Nickel (Ni) barrier
Terminal shapeWRAPAROUND
Tolerance1%
Operating Voltage30 V

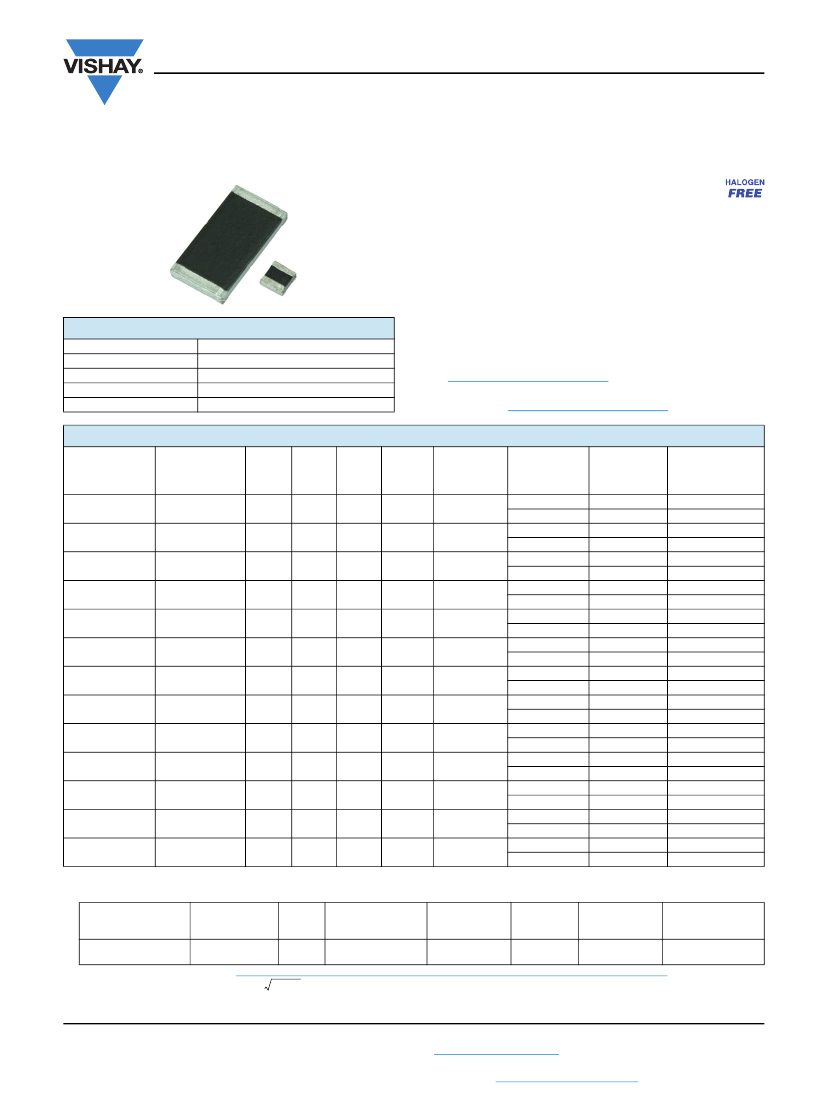

RCWPM (Military M/D55342)
www.vishay.com
Vishay Dale
Thick Film Chip Resistors, Military/Established Reliability
MIL-PRF-55342 Qualified, Type RM
FEATURES
• Fully conforms to the requirements of
MIL-PRF-55342
• Established reliability - verified failure rate; M, P, R, U, S,
V, and T levels
• Construction is sulfur impervious against a high sulfur
environment (ASTM B 809-95 test method)
• 100 % group A screening per MIL-PRF-55342
• Termination style B - tin/lead wraparound over nickel
barrier
• Operating temperature range is - 55 °C to + 150 °C
• For MIL-PRF-32159 zero ohm jumpers, see Vishay Dale’s
RCWPM
Jumper
(Military
M32159)
datasheet
(www.vishay.com/doc?31028)
• Material categorization: For definitions of compliance
please see
www.vishay.com/doc?99912
MECHANICAL SPECIFICATIONS
Resistive element
Encapsulation
Substrate
Termination
Solder finish
Ruthenium oxide
Epoxy
96 % alumina
Solder-coated nickel barrier
Tin/lead solder alloy
STANDARD ELECTRICAL SPECIFICATIONS
MIL
VISHAY DALE MIL-PRF-55342
SPEC. TERM.
MODEL
STYLE
SHEET
RCWPM-0502
RCWPM-550
RCWPM-5100
RCWPM-5150
RCWPM-7225
RCWPM-575
RCWPM-1206
RCWPM-2010
RCWPM-2512
RCWPM-1100
RCWPM-0402
RCWPM-0603
RCWPM-0302
RM0502
RM0505
RM1005
RM1505
RM2208
RM0705
RM1206
RM2010
RM2512
RM1010
RM0402
RM0603
RM0302
01
02
03
04
05
06
07
08
09
10
11
12
13
B
B
B
B
B
B
B
B
B
B
B
B
B
CASE
SIZE
0502
0505
1005
1505
2208
0705
(3)
1206
2010
2512
1010
0402
0603
0302
POWER
MAX.
RATING WORKING RESISTANCE TOLERANCE TEMPERATURE
COEFFICIENT
(2)
RANGE
P
70 °C
VOLTAGE
(1)
±%
± ppm/°C
V
W
1 to 9.1
2, 5, 10
300
0.05
40
10 to 22M
1, 2, 5, 10
100, 200, 300
1 to 9.1
2, 5, 10
300
0.125
40
10 to 22M
1, 2, 5, 10
100, 200, 300
1 to 5.6
2, 5, 10
300
0.20
75
5.62 to 22M
1, 2, 5, 10
100, 200, 300
1 to 5.6
2, 5, 10
300
0.15
125
5.62 to 22M
1, 2, 5, 10
100, 200, 300
1 to 5.6
2, 5, 10
300
0.225
175
5.62 to 22M
1, 2, 5, 10
100, 200, 300
1 to 5.6
2, 5, 10
300
0.15
50
5.62 to 22M
1, 2, 5, 10
100, 200, 300
1 to 5.6
2, 5, 10
300
0.25
100
5.62 to 22M
1, 2, 5, 10
100, 200, 300
1 to 5.6
2, 5, 10
300
0.80
150
5.62 to 22M
1, 2, 5, 10
100, 200, 300
1 to 5.6
2, 5, 10
300
1.0
200
5.62 to 22M
1, 2, 5, 10
100, 200, 300
1 to 5.6
2, 5, 10
300
0.50
75
5.62 to 22M
1, 2, 5, 10
100, 200, 300
1 to 9.1
2, 5, 10
300
0.05
30
10 to 22M
1, 2, 5, 10
100, 200, 300
1 to 5.6
2, 5, 10
300
0.10
50
5.62 to 22M
1, 2, 5, 10
100, 200, 300
1 to 9.1
2, 5, 10
300
0.04
15
10 to 22M
1, 2, 5, 10
100, 200, 300
Notes
• DSCC has created a series of drawings to support the need for 0201-sized product. Vishay Dale is listed as a resource on this drawing as
follows:
POWER RATING RES. RANGE RES. TOL. TEMP. COEF. MAX. WORKING
DSCC DRAWING VISHAY DALE
TERM.
P
70 °C
VOLTAGE
(1)
NUMBER
MODEL
±%
± ppm/°C
W
V
200
10 to 46.4
30
1, 5
07009
RCWP-0201
B
0.05
100
47 to 1M
This drawing can be viewed at:
www.landandmaritime.dla.mil/Programs/MilSpec/ListDwgs.aspx?DocTYPE=DSCCdwg.
(1)
Continuous working voltage shall be
P
x
R
or maximum working voltage, whichever is less.
(2)
Characteristics: K = ± 100 ppm/°C; L = ± 200 ppm/°C; M = ± 300 ppm/°C.
(3)
MIL case size 0705 and EIA case size 0805 are dimensionally the same.
Revision: 22-Nov-12
Document Number: 31010
1
For technical questions, contact:
ff2aresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
