SN100M0022BZF-1015 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> SN100M0022BZF-1015

SN100M0022BZF-1015: DescriptionAluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size58KB，2 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

SN100M0022BZF-1015 Overview

Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 22uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

SN100M0022BZF-1015 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	YAGEO
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	22 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
leakage current	0.069 mA
Manufacturer's serial number	SN
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
method of packing	BULK
polarity	NON-POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	100 V
ripple current	135 mA
surface mount	NO
Delta tangent	0.1
Terminal shape	WIRE

Preview

Download Datasheet

View All

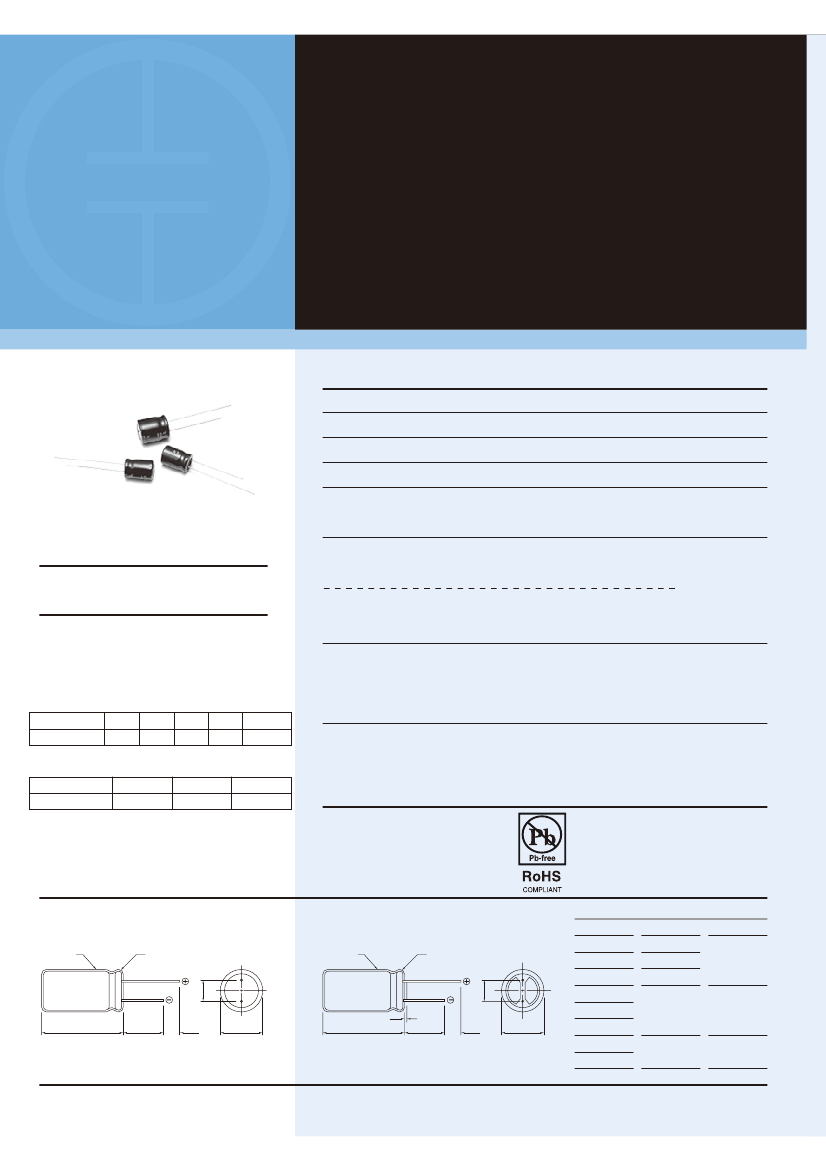

YAGEO CORPORATION

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Size Aluminum

Electrolytic Capacitors

[ For Non Polar ]

105°C Single-Ended Lead Aluminum Electrolytic Capacitors For Non-Polar General Purpose

ELECTRICAL CHARACTERISTICS

Operating Temperature : -40°C ~ +105°C

Working Voltage : 6.3 ~ 100V

Rate Capacitance Range : 0.47 ~ 2200µF

Capacitance Tolerance : -20 ~ +20%

DC Leakage Current (µA) : I = 0.03 CV + 3µA

( After 5 Minutes Application of DC Working Voltage at 25°C )

DESCRIPTION

Non-polar miniature type for used in reversing

polarity DC voltage circuits.

Dissipation Factor : at 120Hz, 25°C

WV (V) : 6.3

D.F (%) : 26

addition of 1000µF.

Load Life : 1000 Hours at 105°C with the Polarity Inverted Every 250 Hours

(a) Capacitance Change : Within 25% of Initial Value

(b) Dissipation Factor : Not Exceed 150% of Initial Requirement

100

For capacitor whose capacitance exceeds 1000µF. The value of D.F(%) is increased by 2% for every

Frequency(Hz)

Factor

0.75

120

1.00

300

1.20

1K 10K~100K

1.32

1.65

Shelf Life : 500 Hours, No Voltage Applied, at 105°C

(a) Capacitance Change : Within 25% of Initial Value

(b) Dissipation Factor : Not Exceed 200% of Initial Requirement

Temperature(°C)

Factor

1.30

1.20

105

1.00

DIAGRAM OF DIMENSIONS

Rubber Stand-off

Dø

4.0

5.0

Rubber End Seal

Dimensions : mm

1.5

2.0

2.5

3.5

5.0

dø

0.45

0.5

Vinyl Sleeve

(P.V.C)

Rubber End Seal

Vinyl Sleeve

(P.V.C)

6.0

8.0

10.0

12.0

13.0

16.0

18.0

22.0

F 0.5

0.4Max.

15Min.

0.6

15Min.

5Min.

D 0.5

5Min.

D 0.5

7.5

10.0

0.8
