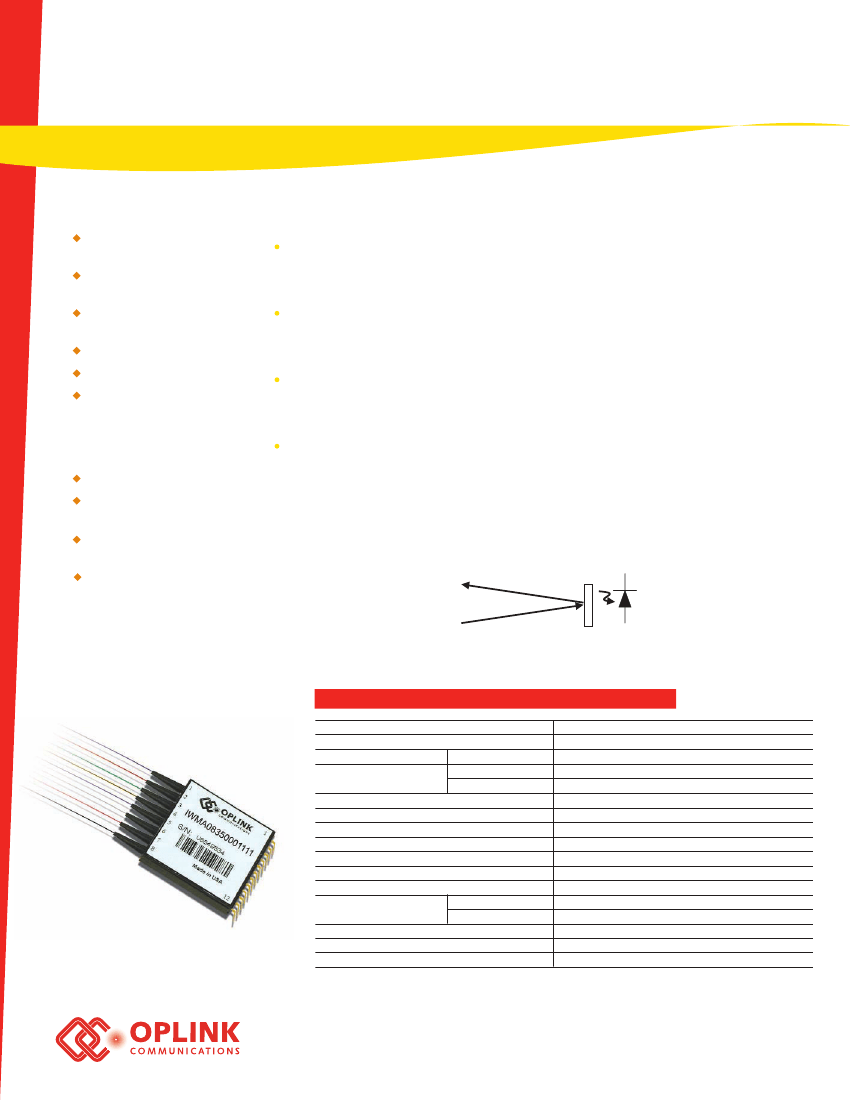

Integrated WDM Monitor Arrays
IWMA Series
Features
Standard,12-pin Package
Easily Mounted on a PCB
4 or 8 Channel
Configurations
Wide Operating Wavelength
Range
Low Insertion Loss and PDL
Low Dark Current
High Temperature Stability
Integrated WDM Monitor Arrays
Oplink's Integrated WDM Monitor Array(IWMA) is a compact, multi-channel WDM
power-monitoring device. It allows power monitoring at one set of wavelengths while
transmitting another set of wavelengths.
IWMA integrates the functionality of a WDM filter and a photodiode and delivering
low insertion loss and low dark current with high temperature stability over a wide
wavelength range. It increases module design flexibility and efficiency by significantly
reducing the number of assembly components and facilitating fiber management.
Easily mounted on a PCB, Oplink's standard 12-pin package provides power moni-
toring for up to eight channels. Applications include DWDM channel power monitor-
ing, optical network switching/protection monitoring, re-configurable optical
add/drop multiplexers, and gain/attenuation monitoring in amplifier systems.
Oplink can provide customized designs to meet specialized feature applications. Also,
Oplink offers modular assemblies that integrate other components to form a full
function module or subsystem.
Functional Diagram
B
2
(B
1
) Output (Reflecton)
B
1
(B
2
) Photocurrent
Applications
DWDM Channel Monitoring
Optical Network Switch/
Protection Monitoring
Re-configurable Optical
Add/drop Multiplexers
Gain/attenuation Monitoring
in Amplifier Systems
B
1
+ B
2
Input
Performance Specifications
Parameter
Min
1310 band
C-band
B
2
Wavelength Range
L-band
Insertion Loss for Transmitted Signal
1, 2
Polarization Dependent Loss
B
2
Output Isolation at B
1
B
1
Output Isolation at B
2
Return Loss
2
PD Responsivity
Input Optical Power
PD Bandwidth =0.5G
Dark Current@ -5V bias, 70°C
PD Bandwidth =1.0G
Operating Temperature
Storage Temperature
Fiber Type
Number of Channels
B
I
Wavelength Range
Notes:
1. Within operating wavelength range and temperature ranges specified, under all states of polarization.
2. Excluding connectors
P
E
R
IM
L
15
35
45
0.6
-5
-40
Y
R
A
N
I
Typical
Max
Units
4 or 8
1260 ~ 1360
1525 ~ 1570
1570 ~ 1620
0.03
0.6
0.05
10
10
5
70
85
nm
nm
nm
dB
dB
dB
dB
dB
A/W
dBm
nA
nA
°C
°C
Corning SMF-28
Oplink Communications, Inc.
R3.20070926
Integrated WDM Monitor Arrays
IWMA Series

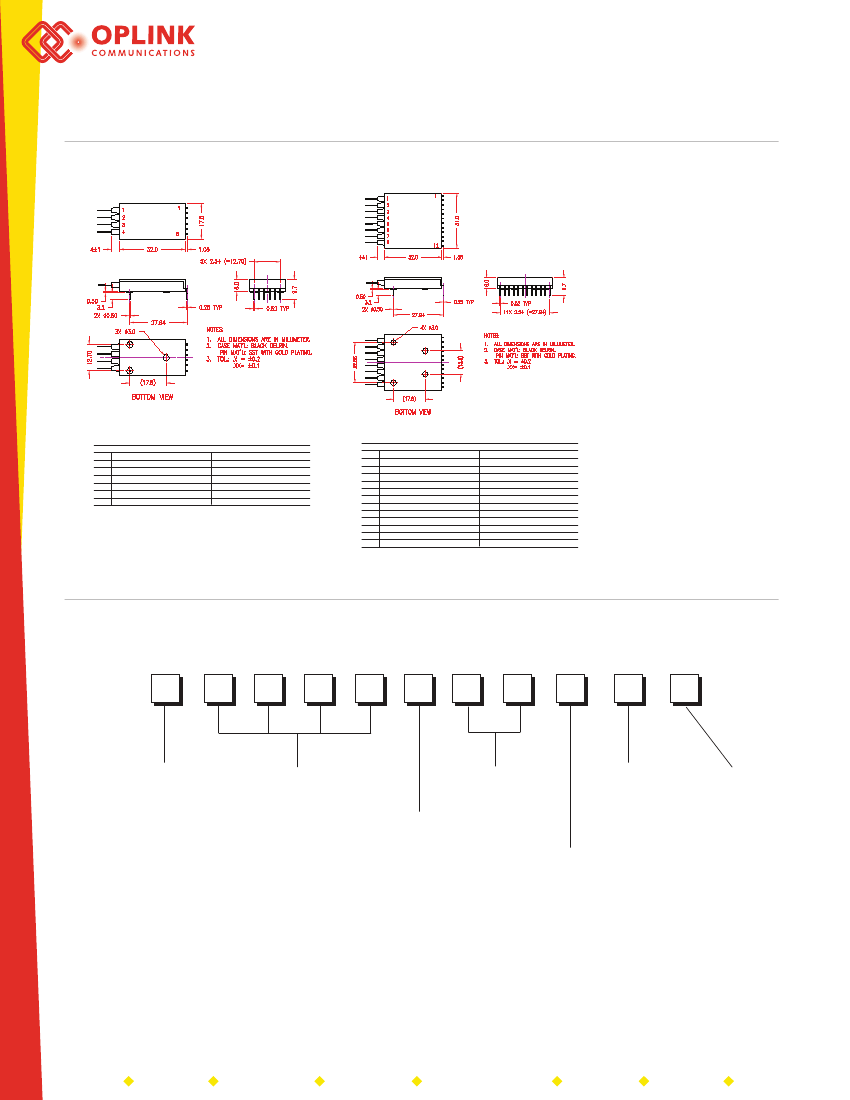

Mechanical Footprint
1) 4-ch IWMA
Dimension (unit: mm)
2) 8-Ch IWMA
Electrical Pin Assignment
Pin#: Common Cathode Assignment
Pin1: Common Cathode for Ch1 & 2
Pin2: Anode Ch1
Pin3: Anode Ch2
Pin4: Common Cathode for Ch3 & 4
Pin5: Anode Ch3
Pin6: Anode Ch4
Common Anode Assignment
Common Anode for Ch1 & 2
Cathode Ch1
Cathode Ch2
Common Anode for Ch3 & 4
Cathode Ch3
Cathode Ch4
46335 Landing Parkway Fremont, CA 94538-6407 Tel: (510 933-7200 Fax: (510) 933-7300 Email: Sales@Oplink.com
Electrical Pin Assignment
Pin#: Common Cathode Assignment
Pin1: Common Cathode for Ch1 & 2
Pin2: Anode Ch1
Pin3: Anode Ch2
Pin4: Common Cathode for Ch3 & 4
Pin5: Anode Ch3
Pin6: Anode Ch4
Pin7: Anode Ch5
Pin8: Common Cathode for Ch5 & 6
Pin9: Anode Ch6
Pin10: Anode Ch7
Pin11: Common Cathode for Ch7 & 8
Pin12: Anode Ch8
Common Anode Assignment
Common Anode for Ch1 & 2
Cathode Ch1
Cathode Ch2
Common Anode for Ch3 & 4
Cathode Ch3
Cathode Ch4
Cathode Ch5
Common Anode Ch5 & 6
Cathode Ch6
Cathode Ch7
Common Anode for Ch7 & 8
Cathode Ch8
Ordering Information
Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink's OEM design team
or account manager for your requirements and ordering information (510) 933-7200.
IWMA
No. of Channel
4 Channels = 4
8 Channels = 8
Detection Wavelength
1310nm= 1310
1550nm= 1550
1600nm= 1600
PD Bandwidth
0.5G= 05
2.0G= 20
Fiber Length
0.5
1.0
1.5
2.0
meter=
meter=
meter=
meter=
H
1
5
2
Connector
Type
None= 1
FC/PC= 2
FC/SPC= 3
FC/APC= 4
SC/PC= 5
SC/SPC= 6
SC/APC= 7
ST= 8
LC= 9
MU= A
Type
Common anode= 0
Common cathode= 1
Fiber Type
SMF-28 250µm= 1
SMF-28 with 900µm loose tube= 2
SMF-28 ribbonized = 3
RoHS:
1. IWMA is RoHS 5 compliant (RoHS permitted Lead in solder exemption is applied).
2. Add “G” to the end of the above PN for RoHS 6 Requirement.
R3.20070926
