C7 - SERIES
2 1/32" DIAMETER
SPECIFICATIONS AND ORDERING INFORMATION
1.0 AMP @ 28 VDC
The C7 Series provides a fully enclosed, modular design that enables
switching up to 24 positions. Our standard design offers 15° indexing,
and solder lug terminals.
C
SPECIFICATIONS
ELECTRICAL
Current and Voltage Rating:
Make and break resistive load
1.0 amp @ 28 VDC; 0.5 amp @ 125 VAC.
Current Carrying Capacity:
25 amps.
Dielectric Strength:
1,000 VAC between current carrying parts and
ground.
Contact Resistance:
Average initial 3 milliohms.
Insulation Resistance:
In excess of 10,000 megohms.
Hardware:
Mounting nut and lockwasher are shipped assembled.
MECHANICAL
Materials and Finishes:
All parts utilize non-corrosive materials
as standard.
Terminals and Contacts:
Brass with silver plate as standard.
Insulation:
Diallyl phthalate.
Index:
Single-ball, hill and valley.
Index Life:
25,000 cycles minimum.
Index Torque:
Switches have lowest practical torque consistent
with crisp detenting and smooth, reliable operation.
Index Angles:
15° standard, 30°, 60°, and 90° available.
Index Stops:
Fixed standard, continuous, or adj. available.
Stop Strength:
25 in. lbs. minimum.
STANDARD PART NUMBER
15
°
INDEXING - FIXED STOPS
SOLDER LUG TERMINALS
15
°
INDEXING - CONTINUOUS ROTATION
SOLDER LUG TERMINALS
ACTIVE
POLES POSITIONS
01
23
02
23
03
23
04
23
30
°
INDEXING
01
12
02
12
03
12
POLES/
DECK
1
1
1
1
1
1
1
NO. OF
DECKS
1
2
3
4
1
2
3
SHORTING
NON-
SHORTING
FIG.
CF
CF
CF
CF
CA
CA
CA
C7D0123S
C7D0223S
C7D0323S
C7D0423S
C7D0112S -30
C7D0212S -30
C7D0312S -30
C7D0123N
C7D0223N
C7D0323N
C7D0423N
C7D0112N -30
C7D0212N -30
C7D0312N -30
*
ACTIVE
POLES POSITIONS
01
24
02
24
03
24
04
24
30
°
INDEXING
01
12
02
12
03
12
POLES/
DECK
1
1
1
1
1
1
1
NO. OF
DECKS
1
2
3
4
1
2
3
SHORTING
NON-
SHORTING
C7D0124N - C
C7D0224N - C
C7D0324N - C
C7D0424N - C
FIG.
C7D0124S - C
C7D0224S - C
C7D0324S - C
C7D0424S - C
*
CG
CG
CG
CG
C7D0112S -30C C7D0112N -30C CA
C7D0212S -30C C7D0212N -30C CA
C7D0312S -30C C7D0312N -30C CA
* FIGURES ARE SHOWN ON PAGE 55.

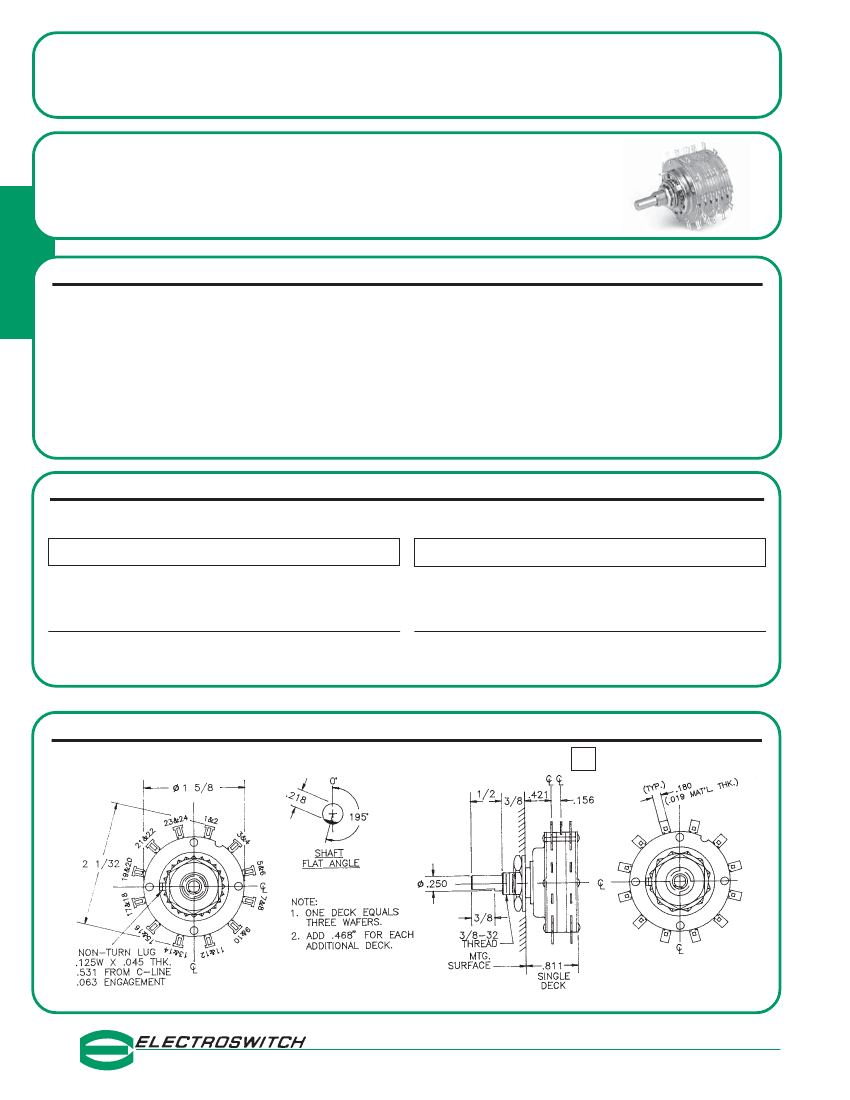

DIMENSIONS
STANDARD CONSTRUCTION - 15
°
INDEX ANGLE (3 WAFER DECK)
Q
.187 QUICK CONNECT
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
14

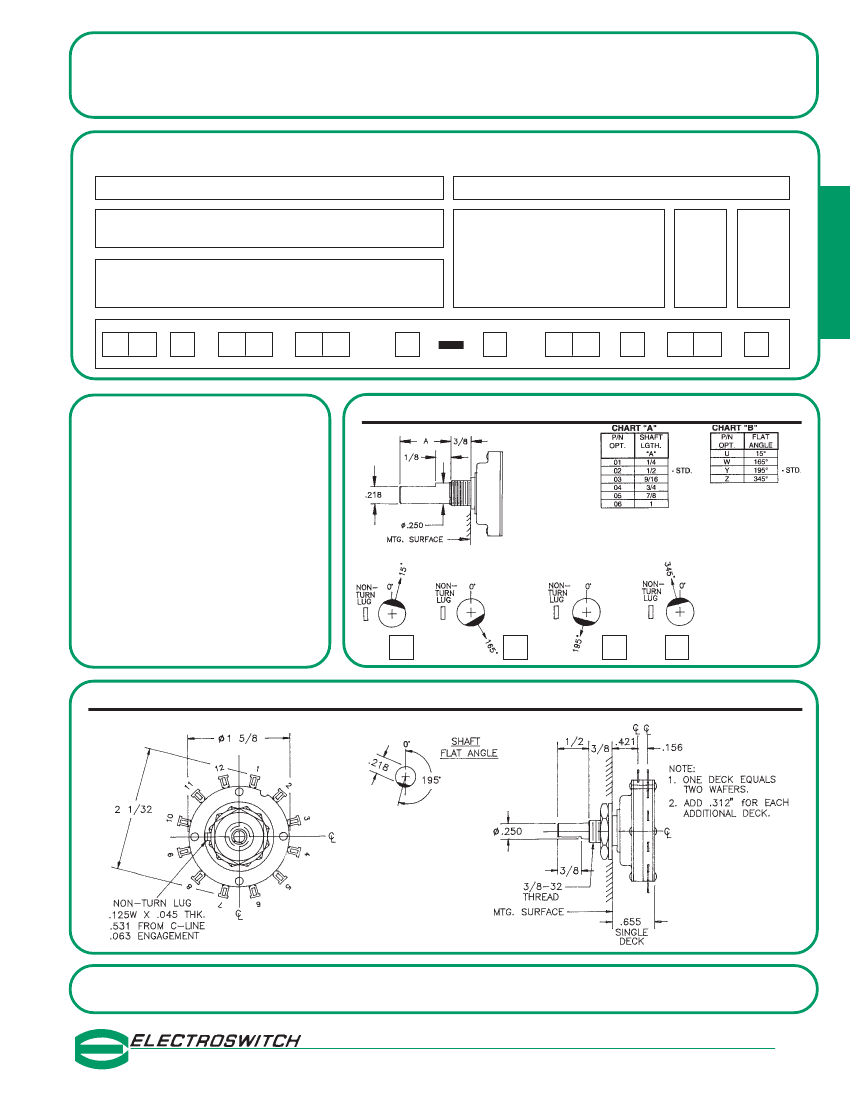

ADDITIONAL OPTIONS AND ORDERING INFORMATION
C7 - SERIES
INDEX
ANGLE
15°
STOP
TYPE
F - FIXED
23 - POS. MAX.
How to Order Additional Options:
2 DIGIT
SERIES
C7
INSULATION
TYPE
D - DIALLYL
TOTAL
POLES
01 - MIN.
ACTIVE
POSITIONS
24 - MAX @ 15°
CONTACT
TYPE
S - SHORTING
N - NON
SHORTING
S - SHORTING
N - NON
SHORTING
TERMINAL
TYPE
L - SOLDER LUG
Q - QUICK
CONNECT
SHAFT/
BUSHING
SHAFT
FLAT
C - CONT.
24 - POS. MAX.
C7
D - DIALLYL
01 - MIN.
12 - MAX @ 30°
06 - MAX @ 60°
04 - MAX @ 90°
A-
L - SOLDER LUG30°
Q - QUICK
60°
CONNECT
90°
Adjustable
A23 - POS. MAX.
SEE
CHART
"A"
SEE
CHART
"B"
C
C - CONT.
a -
Adjustable
CUSTOMERS SPECIFIED ORDER NUMBER FOR STANDARD OPTIONS
ADDITIONAL OPTIONS
(SPECIFY)
(SPECIFY)
(SPECIFY) (SPECIFY)
(SPECIFY)
C
7
D
(SPECIFY)
(SPECIFY)
(SPECIFY)
SHAFT AND FLAT OPTIONS
SHORTING AND
NON-SHORTING
SWITCHING IS
NOT GUARANTEED
ON THE 15° INDEXING
C7 SERIES.
SHAFT AS VIEWED
WITH NON-TURN LUG
AT 9 O'CLOCK AND
SHAFT IN EXTREME
CCW POSITION .
U
DIMENSIONS
STANDARD CONSTRUCTION - 30
°
INDEX ANGLE (2 WAFER DECK)
W
Y
Z
CUSTOM SWITCHES ARE AVAILABLE. CONTACT THE FACTORY WITH YOUR COMPLETE SPECIFICATIONS.
•
ELECTRONIC PRODUCTS
UNIT OF ELECTRO SWITCH CORP.
2010 Yonkers Road
Raleigh, NC 27604
Telephone: (888) ROTARYS or (919) 833-0707
Fax: (800) 909-9171 or (919) 833-8016
15
