HC1929G-R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> HC1929G-R

HC1929G-R: DescriptionBoard Connector, 58 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Red Insulator, Receptacle; CategoryThe connector The connector; File Size245KB，3 Pages; ManufacturerFOXCONN; Websitehttp://www.fit-foxconn.com/

Download Datasheet Parametric View All

HC1929G-R Overview

Board Connector, 58 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Red Insulator, Receptacle

HC1929G-R Parametric

Parameter Name	Attribute value
Maker	FOXCONN
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.196 inch
subject depth	0.1 inch
body length	2.89 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	RED
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	HC19
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.085 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	58

HC1929G-R Preview

Download Datasheet

View All

SPECIFICATIONS

BreakaWay Header

HC19 Series

T/H Type

2.54mm [.100"] Pitch

Mechanical

Contact Retention Force:

0.91Kg min.

Electrical

Current Rating:

3.0A per pin min.

Dielectric Withstanding Voltage:

500V AC

Insulation Resistance:

1000MΩ min

Physical

Housing:

Nylon 6.6, Glass Filled, UL94V-0, Color Black

Contact:

Copper Alloy

Plating:

See “ORDERING INFORMATION”

Solder Pad:

Copper Alloy

Operating Temperature:

-40℃ to +105℃

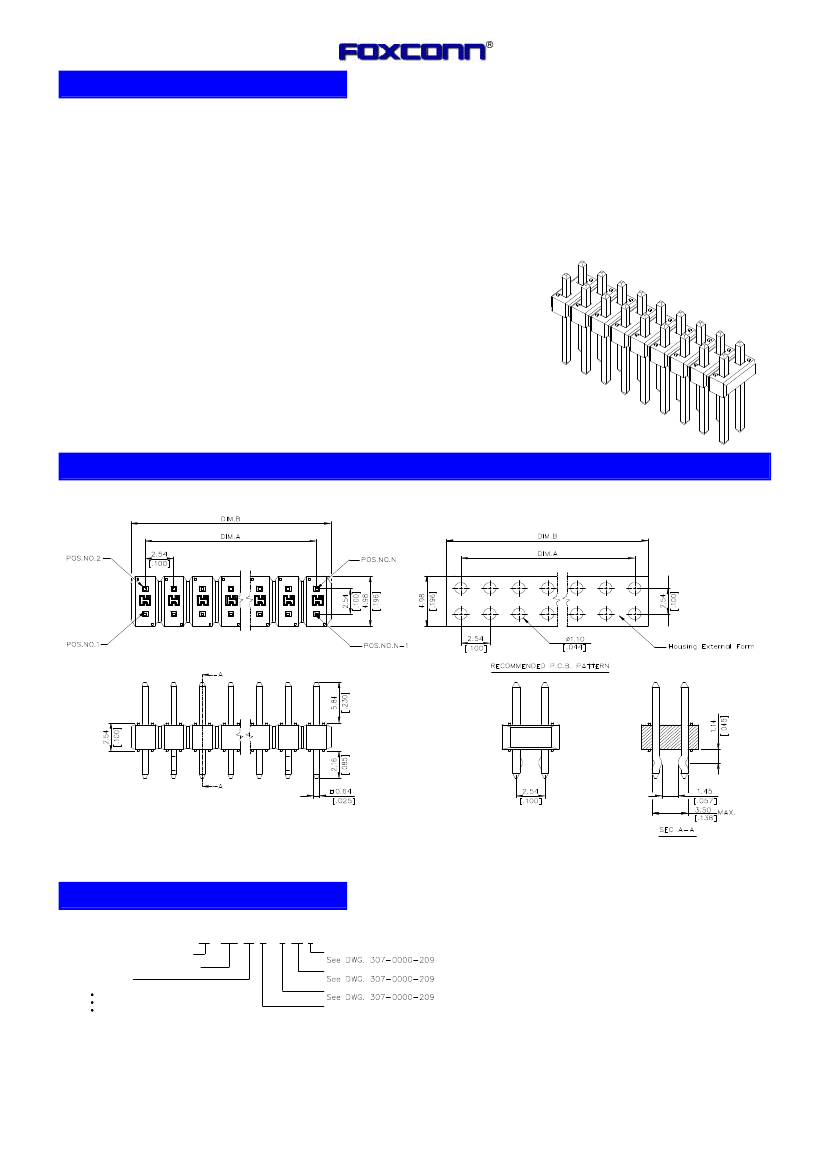

DRAWING

ORDERING INFORMATION

PRODUCT NO.:

Breakaway Header Series

Termination & Contact Type

No. Of Pos

1=2 Pos

HC 1 9 * * * - * * * *

Optional For Housing Color

Position Omitted

Optional For Kinks

Optional For Plating

0=100u" Tin/Lead over All

1=Gold Flash over All

7=15u" Gold on Contact Area

G=Gold Flash on Contact Area

C=3u" Gold on Contact Area

U=Gold Flash on Contact Area

with Lead Free "RoHS COMPLAINCE"

E=100u" min. Tin with Lead Free

"RoHS COMPLAINCE"

V=15u" Gold on Contact Area with

Lead Free "RoHS COMPLAINCE"

40=80 Pos

All specification & dimensions are subject to change, please call your nearest Foxconn sales representative for update information.
