APH-1-14-CSL(.512/.730)-SG datasheet, PDF

Datasheet> All Categories > The connector> The connector> APH-1-14-CSL(.512/.730)-SG

APH-1-14-CSL(.512/.730)-SG: DescriptionBoard Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size110KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

APH-1-14-CSL(.512/.730)-SG Overview

Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

APH-1-14-CSL(.512/.730)-SG Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.1 inch
subject depth	0.1 inch
body length	1.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
Manufacturer's serial number	APH
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	14

Preview

Download Datasheet

View All

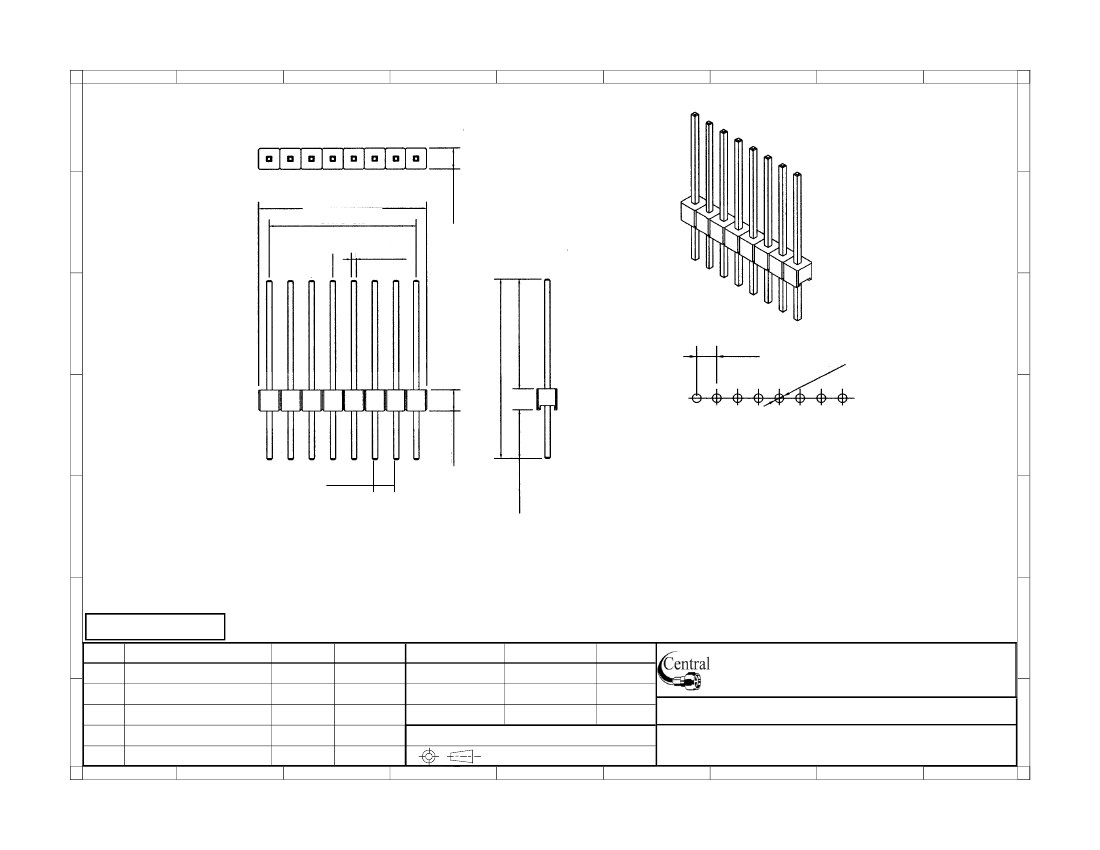

2.00±0.001

1.90±0.001

0.025 SQ.

0.100±0.006

0.730±0.01

0.512±0.01

0.100

044

0.100±0.006

PC Board Layout

0.118±0.01

SPECIFICATIONS

Contact material: Brass

Contact plating:

Tin over nickel

Insulator material: PBT

0.100 Pitch

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

APH-1-XX-CSL(.512/.730)-SG

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Custom pin header, 20 positions, 0.512” mating length,

0.118 tail length, gold plated mating end, tin tail
