Transient Voltage Suppressors Array for ESD Protection
ESDXXV26T-4L Series
Description
The ESDXXV26T-4L is designed to protect voltage sensitive
components from ESD and transient voltage events. Excellent
clamping capability, low leakage, and fast response time,
make these parts ideal for ESD protection on designs where
board space is at a premium.
SOT-26
Feature
u
u
u
u
u
u
u
u
350 Watts Peak Pulse Power per Line (tp=8/20μs)
Protects four or five directional I/O lines
Low clamping voltage
Working voltages : 5V, 12V, 15V and 24V
Low leakage current
IEC61000-4-2 (ESD)
±15kV
(air),
±8kV
(contact)
IEC61000-4-4 (EFT) 40A (5/50ηs)
IEC61000-4-5 (Lightning) 12A (8/20μs)

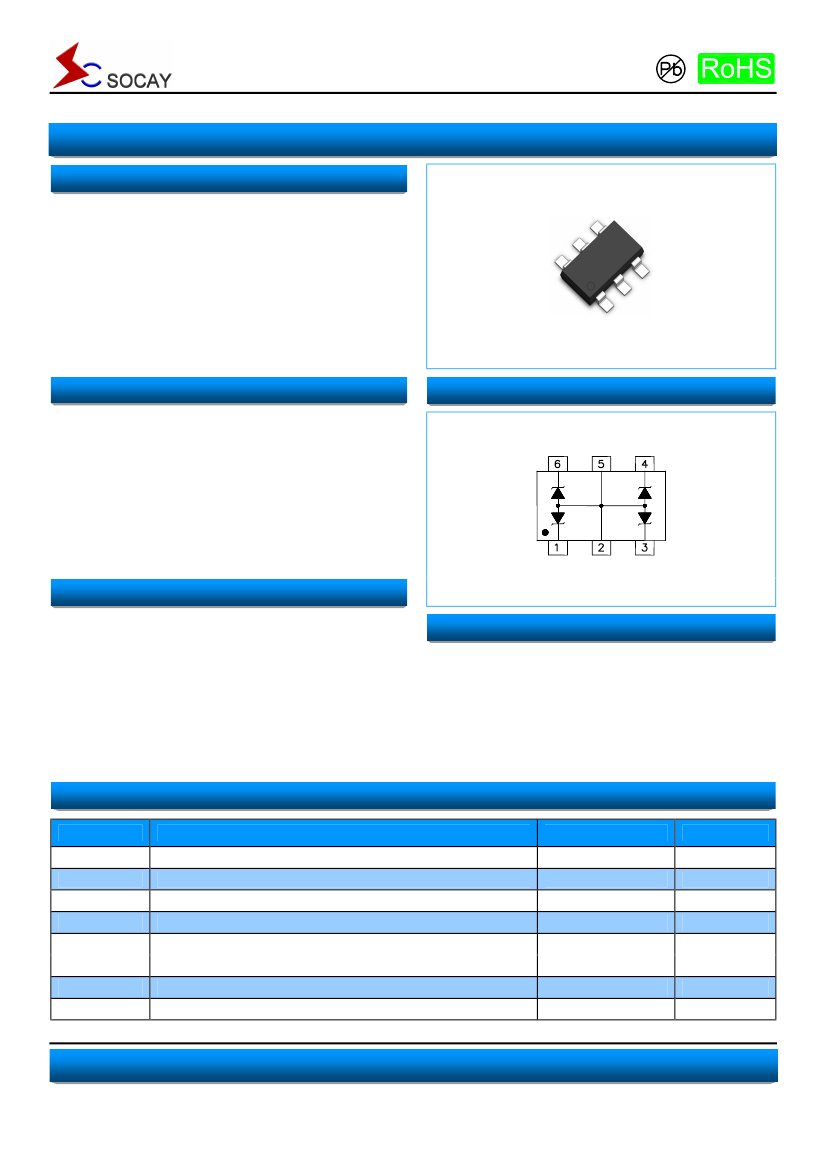

Functional Diagram
Applications
u
u
u
u
u
u
RS-232, RS-422 & RS-423 Data Lines
Audio/Video Inputs
Wireless Network Systems
Digit Video Interface (DVI)
Medical Sensors
Notebook Computers
u
u
u
u
u
u
JEDEC SOT-26 Package
Molding Compound Flammability Rating : UL 94V-0
Weight 14.0 Milligrams (Approximate)
Quantity Per Reel : 3,000pcs
Reel Size : 7 inch
Lead Finish : Lead Free
Mechanical Characteristics
Mechanical Characteristics
Symbol
P
PP
T
L
T
STG
T
J
Parameter
Peak Pulse Power (tp=8/20μs waveform)
Lead Soldering Temperature
Storage Temperature Range
Operating Temperature Range
IEC61000-4-2 (ESD)
Air Discharge
Contact Discharge
IEC61000-4-4 (EFT)
IEC61000-4-5 ( Lightning )
Value
350
260 (10sec)
-55 to +150
-55 to +150
±15
±8
40
12
Units
W
ºC
ºC
ºC
KV
A
A
SOCAY Electronics Co., Ltd.
Revision January 06, 2014
www.socay.com
1/3
@ SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Transient Voltage Suppressors Array for ESD Protection
ESDXXV26T-4L Series
Electrical Characteristics
(@ 25℃ Unless Otherwise Specified )
Device
Marking
TU3
TUA
TUB
TUC
TUD
V
RWM
(V)
(Max.)
3.3
5.0
12.0
15.0
24.0
V
B
(V)
(Min.)
4.5
6.0
13.3
16.7
26.7
I
T
(mA)
1
1
1
1
1
V
C
@1A
(Max.)
7.5
9.8
19.0
24.0
38.0
V
C
(Max.)
14.0
15.0
27.0
30.0
46.0
(@A)
25
24
15
12
8
I
R
(μA)
(Max.)
5
5
1
1
1
C
(pF)
(Typ.)
250
200
90
70
50
Part Number
ESD3.3V26T-4L
ESD05V26T-4L
ESD12V26T-4L
ESD15V26T-4L
ESD24V26T-4L

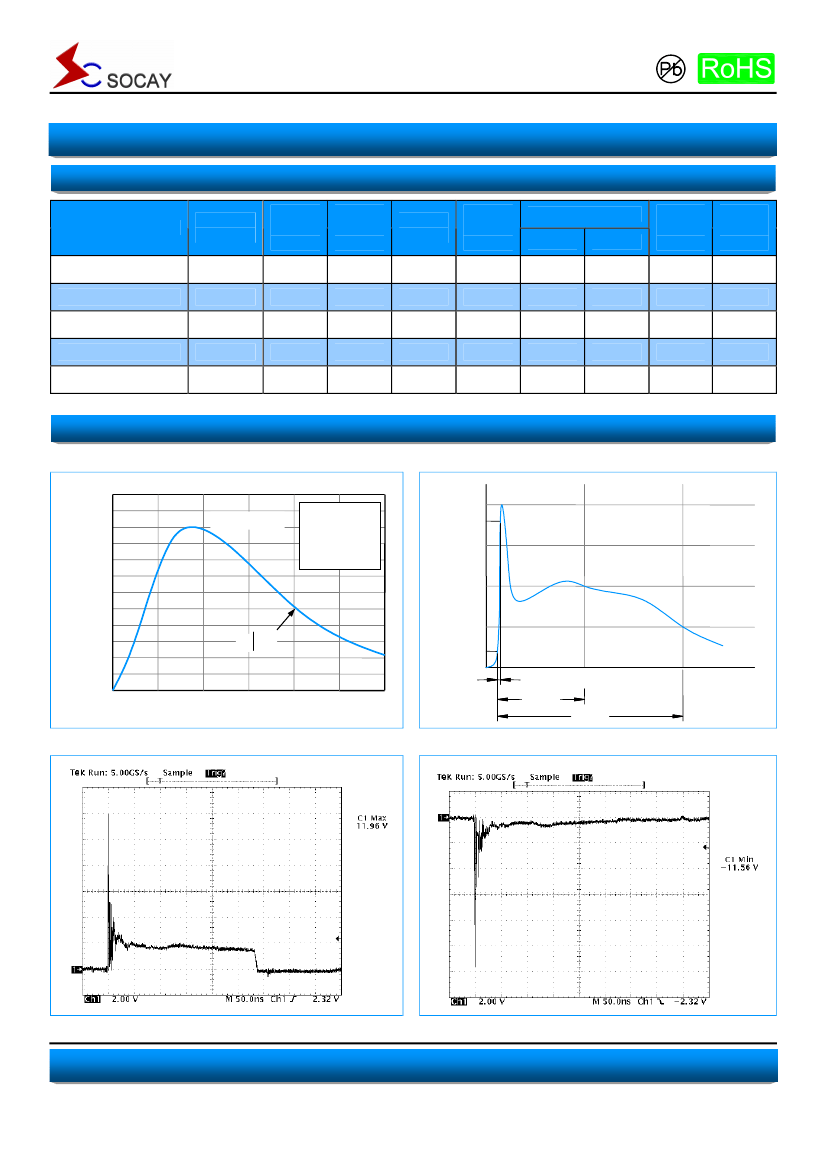

Characteristic Curves
Fig1.
8/20μs Pulse Waveform
Fig2. ESD Pulse Waveform (according to IEC 61000-4-2)
100%
Percent of Peak Pulse Current %
90%
120
I
PP
- Peak Pulse Current - % of I
PP
100
80
60
40
t
d
=t I
PP
/2
20
0
0
5
10
15
t - Time (μs)
20
25
30
t
r
Peak Value I
PP
TEST
WAVEFORM
PARAMETERS
t
r
=8μs
t
d
=20μs
10%
tr = 0.7~1ns
30ns
60ns
Time (ns)
Fig3.
ESD Clamping (+8KV Contac per IEC61000-4-2)
Fig4.
ESD Clamping (-8KV Contac per IEC61000-4-2)
SOCAY Electronics Co., Ltd.
Revision January 06, 2014
www.socay.com
2/3
@ SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
Transient Voltage Suppressors Array for ESD Protection
ESDXXV26T-4L Series

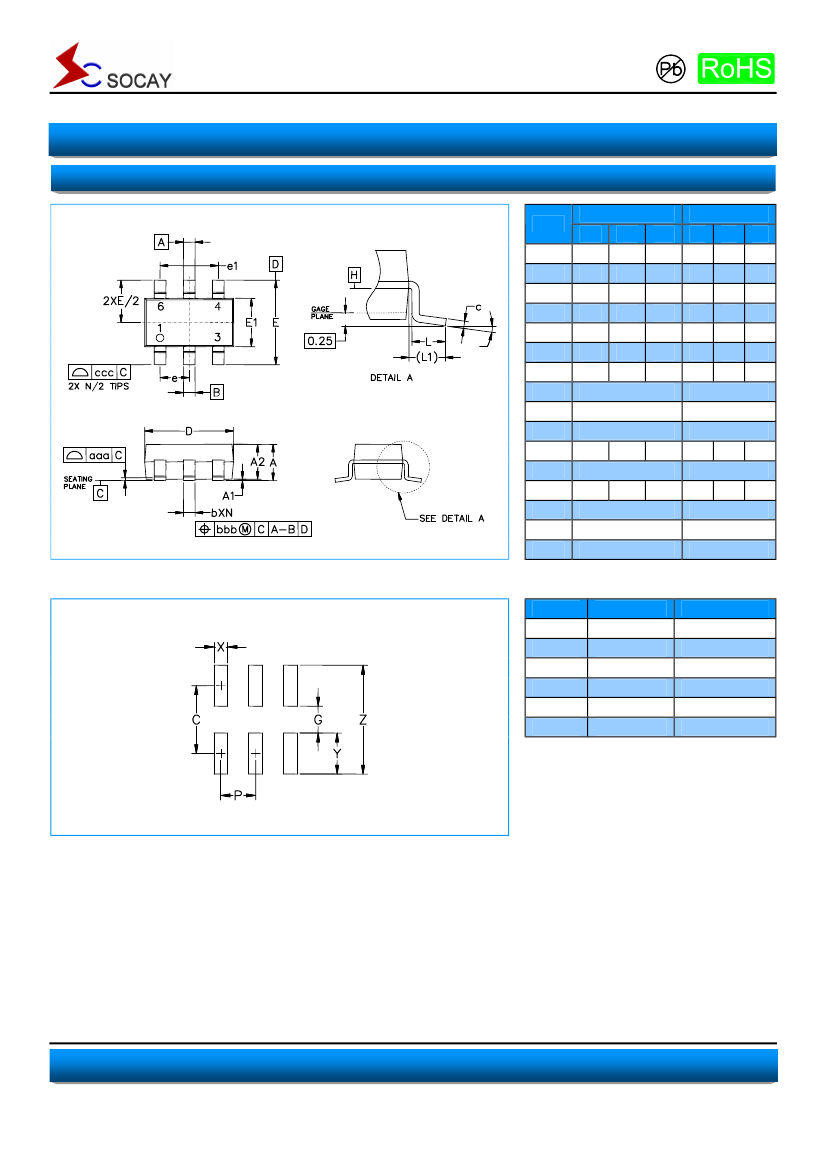

SOT-26 Package Outline & Dimensions
Inches
Min.
A
A1
A2
b
c
0.035
0.000
Millimeters
Symbol
Nom. Max. Min. Nom. Max.
-
-
0.057 0.90
0.006 0.00
-
-
1.45
0.15
0.035 0.045 0.051 0.90 1.15 1.30
0.010
0.003
-
-
0.020 0.25
0.009 0.08
-
-
0.50
0.22
θ
D
E1
E
e
e1
L
L1
θ
aaa
bbb
ccc
0.110 0.114 0.122 2.80 2.90 3.10
0.060 0.063 0.069 1.50 1.60 1.75
0.110 BSC
0.037 BSC
0.075 BSC
2.80 BSC
0.95 BSC
1.90 BSC
0.012 0.018 0.024 0.30 0.45 0.60
(0.024)
0°
-
0.004
0.008
0.008
10°
0°
(0.60)
-
0.10
0.20
0.20
10°
Soldering Footprint
Symbol
C
G
P
X
Y
Z
Inches
(0.098)
0.055
0.037
0.024
0.043
0.141
Millimeters
(2.50)
1.40
0.95
0.60
1.10
3.60
SOCAY Electronics Co., Ltd.
Revision January 06, 2014
www.socay.com
3/3
@ SOCAY Electronics Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.socay.com for current information.
