BHD-06-ST-TN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BHD-06-ST-TN

BHD-06-ST-TN: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size141KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BHD-06-ST-TN Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

BHD-06-ST-TN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.346 inch
subject depth	0.358 inch
body length	0.6 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	1000 Cycles
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
Manufacturer's serial number	BHD
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

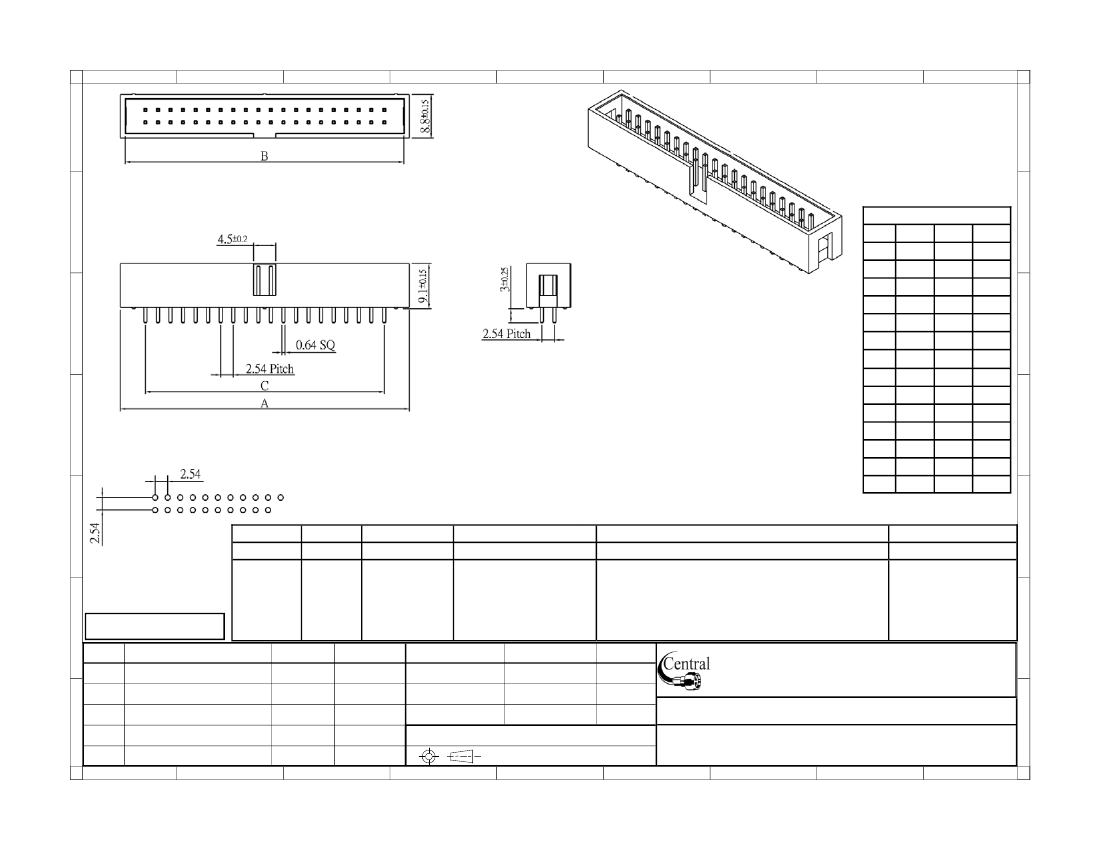

PC Board Layout

SPECIFICATIONS

Contact material:

Contact plating:

Insulator material:

Brass

Tin, gold or gold flash on contact area

Tin on solder tails

PBT

Dimensions

Pos. A

6 15.24 12.94

8 17.78 15.48

10 20.32 18.02

14 25.40 23.10

16 27.94 25.64

20 33.02 30.72

24 38.10 35.80

26 40.64 38.34

30 45.72 43.42

34 50.80 48.50

40 58.32 56.12

50 71.12 68.82

60 83.82 81.52

64 88.90 86.60

5.08

7.62

10.16

15.24

17.78

22.86

27.94

30.48

35.56

40.64

48.26

60.96

73.66

78.74

Series

Positions

Mounting

Plating

BHD

Box header See chart ST=Straight

TN=Tin

RA=Right angle GDXX=Gold

SGXX=Selective gold

XX=[Flash if Blank]15µ”,

RoHS compliant

30µ”, 50µ” gold

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Latches

[blank]=None

SLC=Short side latch holder

SL=Short latch (3.9mm) LLC=Long side latch holder

LL=Long latch (7.68mm) NLC=Empty side latch holder

NL=Empty latch holder

Date

08/06/07

08/06/07 Part No.:

Options

[blank]=None

PF=Press Fit

SM=Surface mount

SPL=Special pin length

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BHD-XX-ST-XX-XX-XX

0.00 ± 0.20 Angles ± 3°

UNIT: mm

Description: Box header, DIP type, 2.54mm pitch
