BHD-16-ST-GD-SLC

Description
Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size105KB,1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric View All

BHD-16-ST-GD-SLC Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

BHD-16-ST-GD-SLC Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerCentral Semiconductor
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresROHS COMPLIANT
body width0.362 inch
subject depth0.404 inch
body length1.1 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1000VAC V
Durability1000 Cycles
Insulation resistance5000000000 Ω
insulator materialPOLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberBHD
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation option 1LOCKING
Installation option 2SHORT LATCH
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyPOLARIZED HOUSING
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts16
1
2
3
4
5
6
7
8
9
A
B
SPECIFICATIONS
Current rating:
Contact material:
Contact plating:
Insulation material:
Insulation resistance:
Withstanding:
Operating temperature:
A
3 amps
Copper alloy
Gold, duplex or tin
PBT, UL94V-0
5,000 megohms min.
1,000VAC for 1 min.
-40°C to +105°C
B
C
C
D
D
E
E
Series
BHD
Box header
F
RoHS compliant
Rev.
Description
Date
Approved
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
1
2
3
4
Positions
Style
Plating
XX
XX
XX
6, 8,10,12,14,16, 20, RA=Right angle GD=Gold
24, 26, 30, 34, 36, 40, ST=Straight
SG=Duplex
44, 50, 56, 60, 64
TN=Tin
Date
08/10/99
08/10/99
08/10/99 Part No.:
Options
SLC=Short latch clip
LLC=Long latch clip
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
BHD-XX-XX-XX-XLC
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

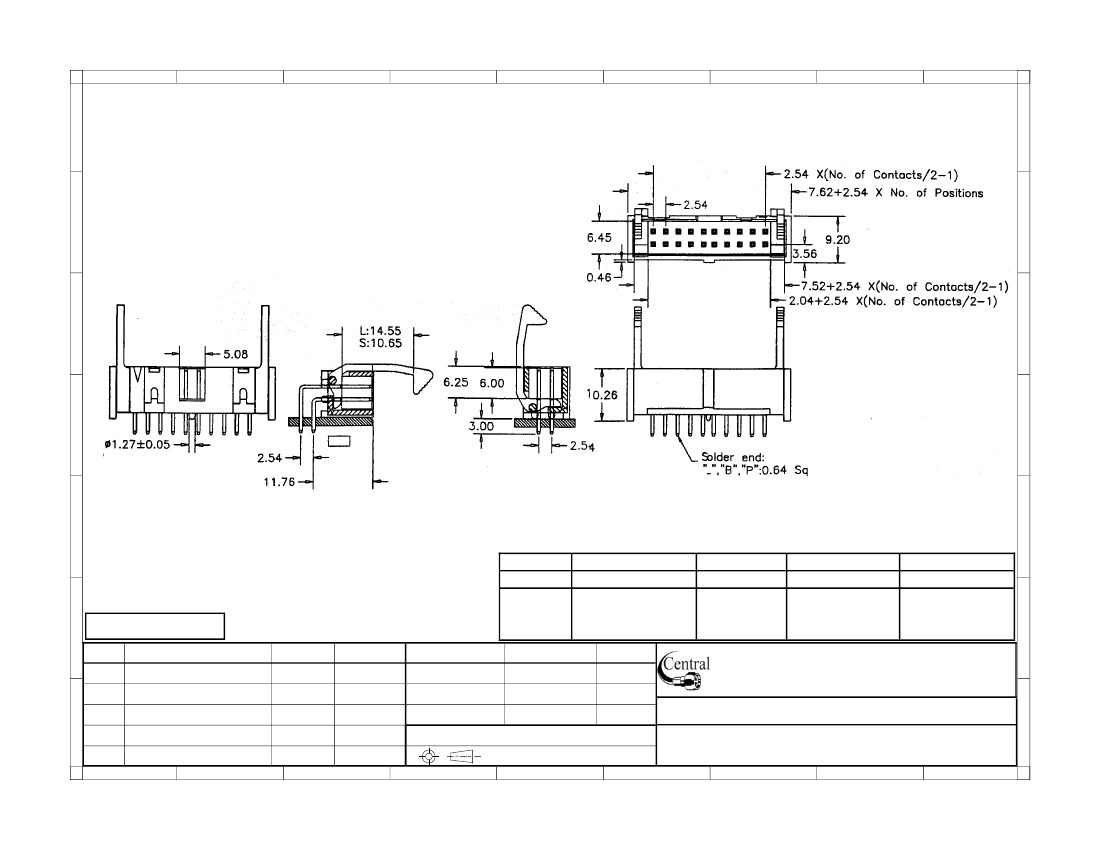

Description: Box header with side latch clips
G
