ST7271J1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> ST7271J1

ST7271J1: Description8-BIT HCMOS MCUs WITH EEPROM AND TV/MONITOR DEDICATED FUNCTIONS; CategoryThe embedded processor and controller Microcontrollers and processors; File Size4MB，84 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

ST7271J1 Overview

8-BIT HCMOS MCUs WITH EEPROM AND TV/MONITOR DEDICATED FUNCTIONS

ST7271J1 Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	DIP,
Contacts	42
Reach Compliance Code	unknow
Has ADC	YES
bit size	8
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
JESD-30 code	R-PDIP-T42
Number of terminals	42
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
RAM (bytes)	192
rom(word)	8192
ROM programmability	MROM
speed	4 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

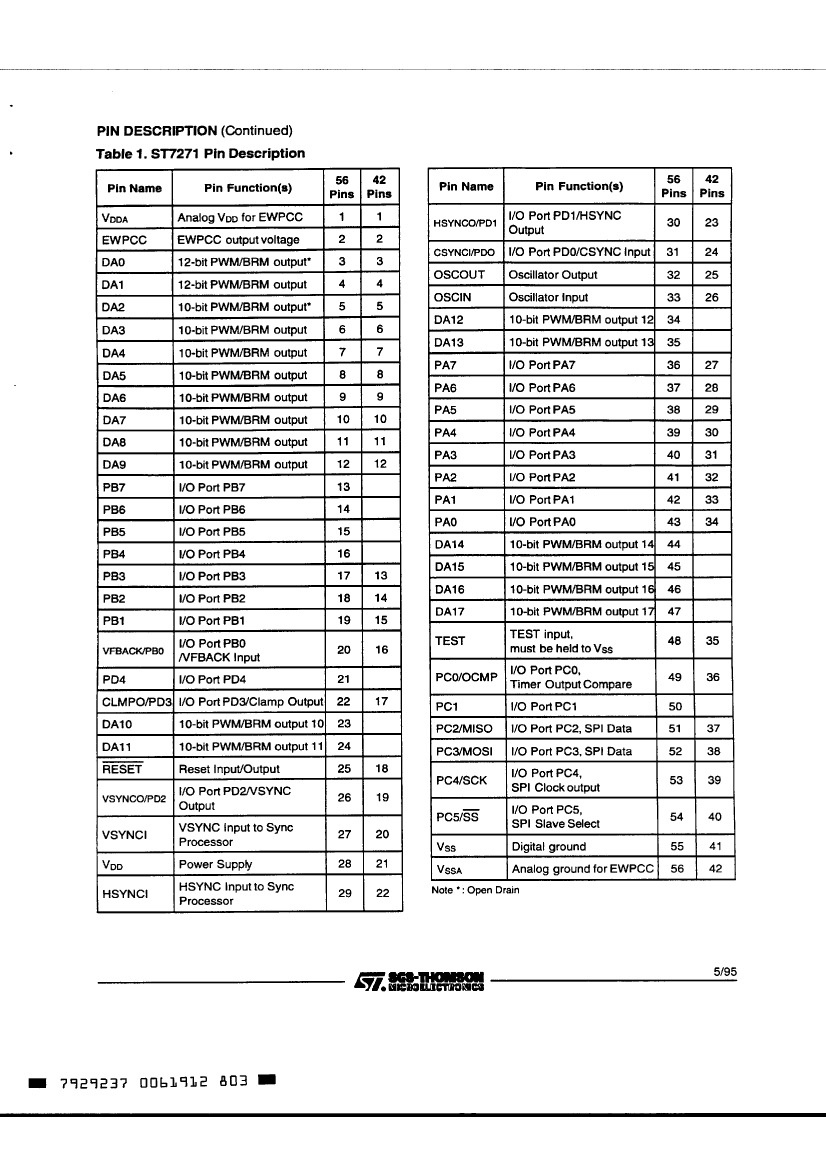

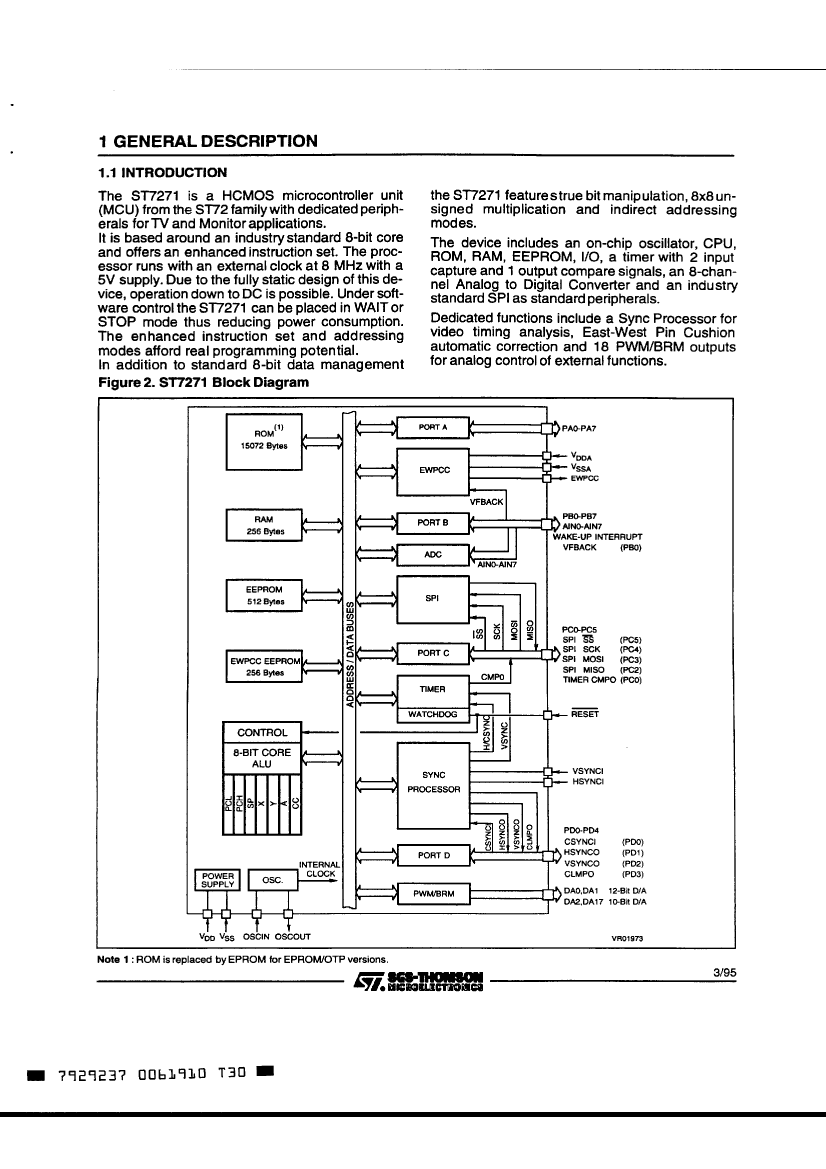

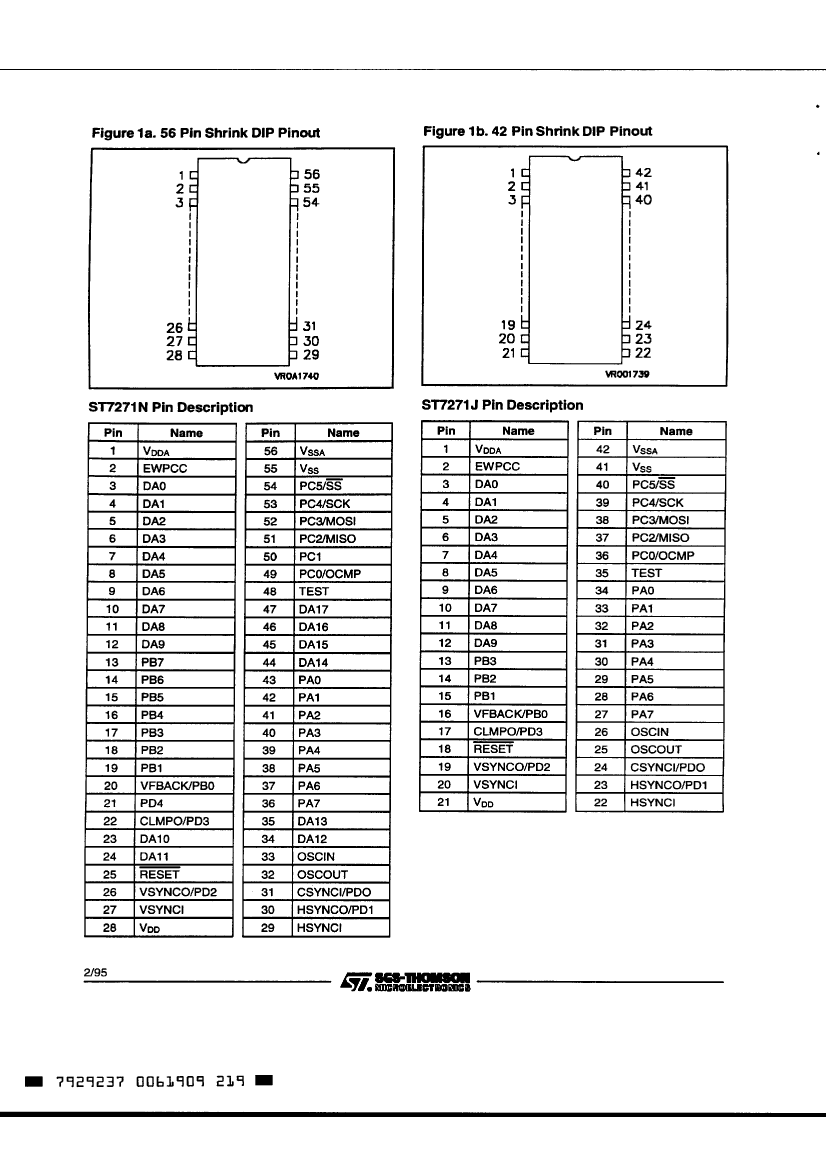

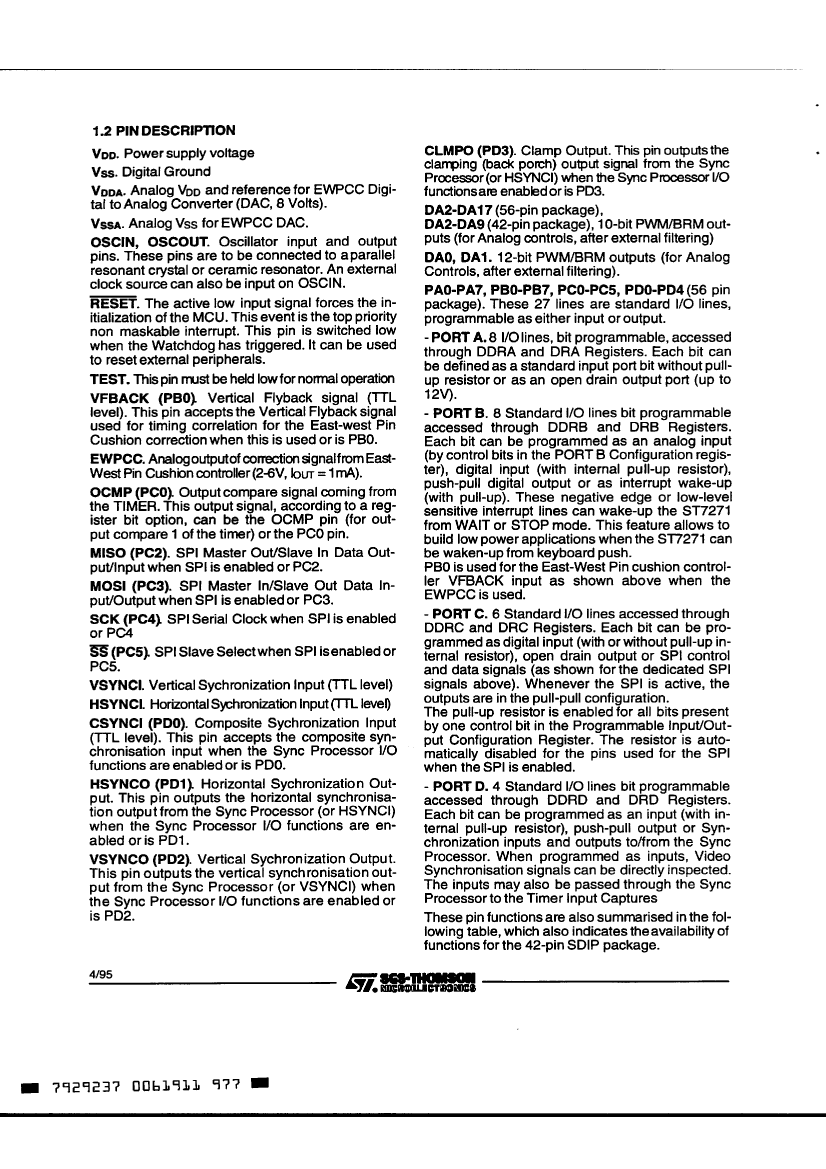

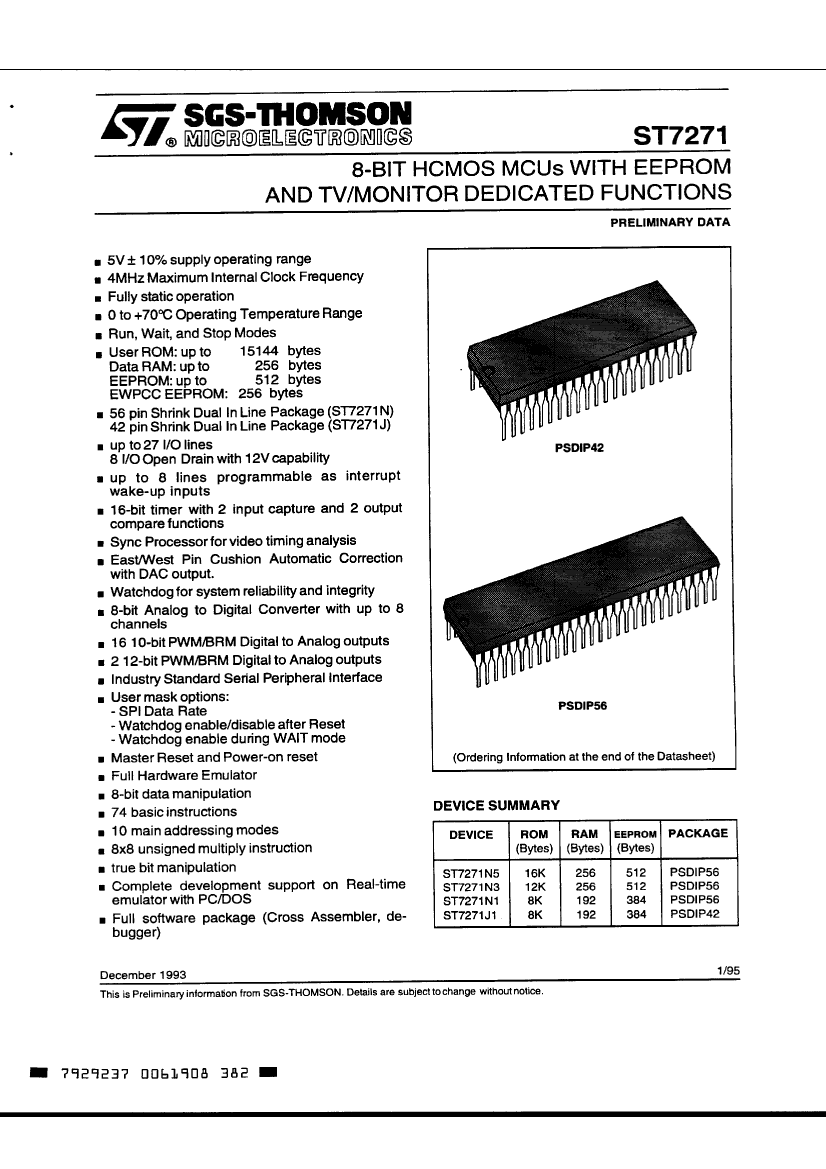

Preview

Download Datasheet

View All

Printed from www.freetradezone.com, a service of Partminer, Inc.

This Material Copyrighted By Its Respective Manufacturer

ST7271J1 Related Products

	ST7271J1	ST7271N3	ST7271N5	ST7271N1	ST7271
Description	8-BIT HCMOS MCUs WITH EEPROM AND TV/MONITOR DEDICATED FUNCTIONS	8-BIT HCMOS MCUs WITH EEPROM AND TV/MONITOR DEDICATED FUNCTIONS	8-BIT HCMOS MCUs WITH EEPROM AND TV/MONITOR DEDICATED FUNCTIONS	8-BIT HCMOS MCUs WITH EEPROM AND TV/MONITOR DEDICATED FUNCTIONS	8-BIT HCMOS MCUs WITH EEPROM AND TV/MONITOR DEDICATED FUNCTIONS
Maker	STMicroelectronics	STMicroelectronics	-	STMicroelectronics	-
Parts packaging code	DIP	DIP	-	DIP	-
package instruction	DIP,	SHRINK, PLASTIC, DIP-56	-	SHRINK, PLASTIC, DIP-56	-
Contacts	42	56	-	56	-
Reach Compliance Code	unknow	compli	-	compli	-
Has ADC	YES	YES	-	YES	-
bit size	8	8	-	8	-
maximum clock frequency	4 MHz	4 MHz	-	4 MHz	-
DAC channel	NO	NO	-	NO	-
DMA channel	NO	NO	-	NO	-
JESD-30 code	R-PDIP-T42	R-PDIP-T56	-	R-PDIP-T56	-
Number of terminals	42	56	-	56	-
Maximum operating temperature	70 °C	70 °C	-	70 °C	-
PWM channel	YES	YES	-	YES	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	-
encapsulated code	DIP	DIP	-	DIP	-
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	-
Package form	IN-LINE	IN-LINE	-	IN-LINE	-
Certification status	Not Qualified	Not Qualified	-	Not Qualified	-
ROM programmability	MROM	MROM	-	MROM	-
speed	4 MHz	4 MHz	-	4 MHz	-
Maximum supply voltage	5.5 V	5.5 V	-	5.5 V	-
Minimum supply voltage	4.5 V	4.5 V	-	4.5 V	-
Nominal supply voltage	5 V	5 V	-	5 V	-
surface mount	NO	NO	-	NO	-
technology	CMOS	CMOS	-	CMOS	-
Temperature level	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	-
Terminal location	DUAL	DUAL	-	DUAL	-
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	-	MICROCONTROLLER	-
