SP2-018-SH606/01-95 datasheet, PDF

Datasheet> All Categories > The connector> The connector> SP2-018-SH606/01-95

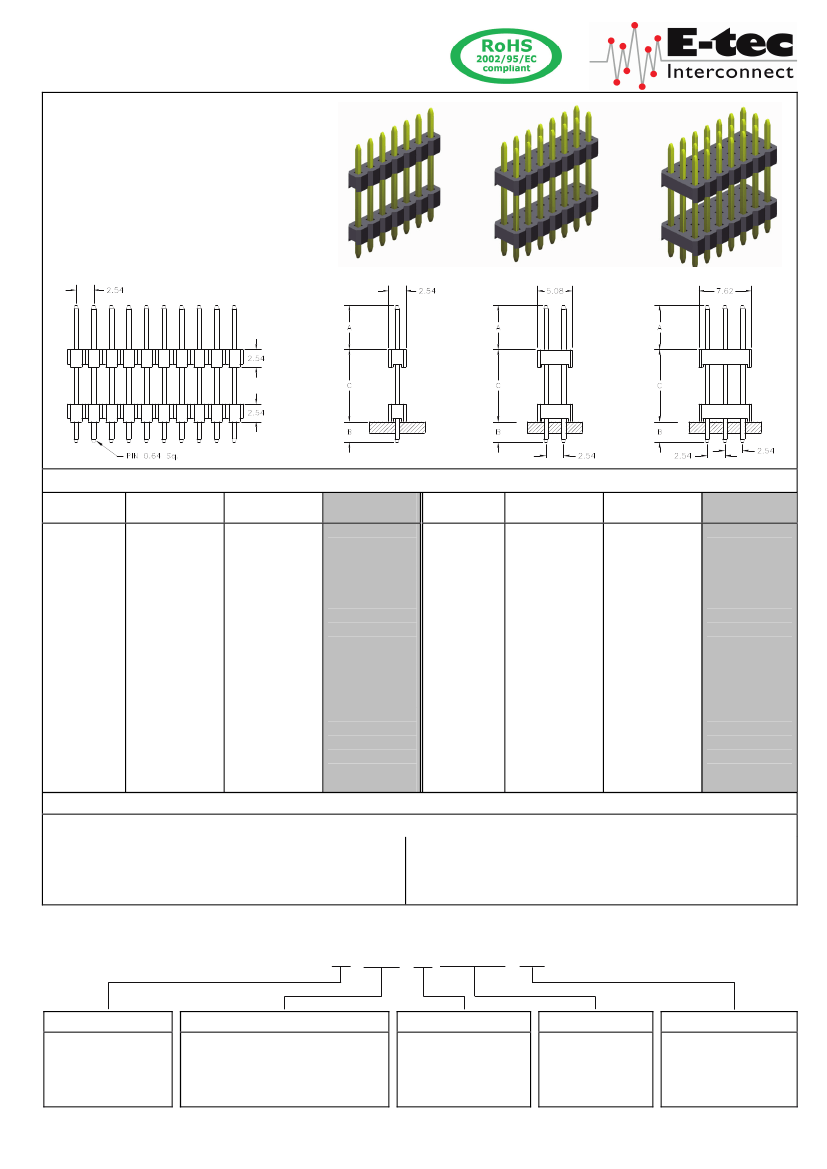

SP2-018-SH606/01-95: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size291KB，1 Pages; ManufacturerE-tec Interconnect Ltd.; Environmental Compliance

Download Datasheet Parametric View All

SP2-018-SH606/01-95 Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

SP2-018-SH606/01-95 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	E-tec Interconnect Ltd.
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.2 inch
subject depth	2.028 inch
body length	0.9 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	SP
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.122 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	18

Preview

Download Datasheet

View All

2.54mm pitch

Board Spacer

- THT - single, dual & triple row

PIN STYLE

Pin code

113 / 01

249 / 09

185 / 02

137 / 01

260 / 01

147 / 08

216 / 08

198 / 02

184 / 13

198 / 03

216 / 10

198 / 01

211 / 01

235 / 01

255 / 01

249 / 07

216 / 02

290 / 08

238 / 01

DIM “A”

mm/inch

DIM “B”

mm/inch

DIM “C”

mm/inch

Pin code

240 / 03

249 / 06

290 / 04

249 / 08

216 / 05

263 / 01

340 / 01

290 / 01

276 / 01

308 / 03

342 / 01

342 / 02

352 / 01

378 / 02

378 / 01

408 / 04

516 / 01

606 / 01

DIM “A”

mm/inch

DIM “B”

mm/inch

DIM “C”

mm/inch

3.00/.118

15.00/.590

8.50/.335

3.00/.118

13.90/.547

3.00/.118

6.30/.248

6.00/.236

5.30/.209

6.50/.256

5.50/.217

6.00/.236

7.00/.275

9.00/.354

8.80/.346

5.30/.209

7.25/.285

5.90/.232

3.30/.130

3.90/.153

3.00/.118

2.30/.090

3.60/.142

3.00/.118

6.30/.248

3.00/.118

2.50/.984

2.70/.106

3.60/.142

2.50/.984

2.90/.114

3.60/.142

2.50/.984

7.25/.285

3.20/.126

5.00/.197

6.00/.236

7.00/.276

8.40/.331

8.50/.335

8.70/.343

9.00/.354

10.40/.409

10.60/.417

11.50/.453

11.80/.465

12.20/.480

12.90/.508

13.60/.535

13.80/.543

14.50/.571

14.70/.279

6.00/.236

6.50/.256

5.30/.209

1.95/.077

5.50/.216

9.00/.354

6.50/.256

3.20/.126

6.00/.236

6.10/.240

3.00/.118

7.30/.287

5.30/.209

5.80/.228

6.80/.268

6.00/.236

3.00/.118

3.40/.134

6.50/.256

2.60/.102

1.95/.077

2.80/.110

6.00/.236

2.50/.098

3.20/.126

3.30/.130

6.10/.240

9.20/.362

3.30/.130

2.50/.984

3.30/.130

3.10/.122

15.00/.590

15.50/.610

16.00/.630

17.00/.669

17.70/.697

18.00/.709

19.00/.748

20,00/.787

21.20/.835

21.50/.846

22.00/.866

23.00/.905

27.20/1.071

30.00/1.181

32.50/1.280

41.50/1.634

51.50/2.028

Many other dimensions available on request

SPECIFICATIONS

Current rating

Insulator resistance

Withstanding voltage

Breakdown voltage

1000 MΩ min.

500 V AC

1800 V

RMS

min.

Operating temperature

Insulator material

(RoHS compliant)

Contact material

(RoHS compliant)

- 40°C to +105°C

P.B.T. or Nylon UL 94 V-0

Standard :

P.B.T

Brass

How to order

SP x - xxx - S xxx/xx -

Rows

single row

dual row

triple row

Nbr of pins

single row =

dual row =

triple row =

002

004

009

040

080

120

Insulator

= P.B.T.

See above table

= Nylon

Pin code

Plating

= gold

(standard)

= tin

(leadfree)

tin/gold

(tin leadfree)

Other platings on request
