5434-2-24-21 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5434-2-24-21

5434-2-24-21: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size177KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

5434-2-24-21 Overview

Board Connector, 24 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Surface Mount Terminal, Locking, Plug

5434-2-24-21 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.207 inch
body length	1.381 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact point gender	FEMALE
contact mode	STAGGERED
Contact resistance	10 mΩ
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
maximum insertion force	4.8928 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5434
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	4.4958 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	24
Evacuation force-minimum value	.973 N

Preview

Download Datasheet

View All

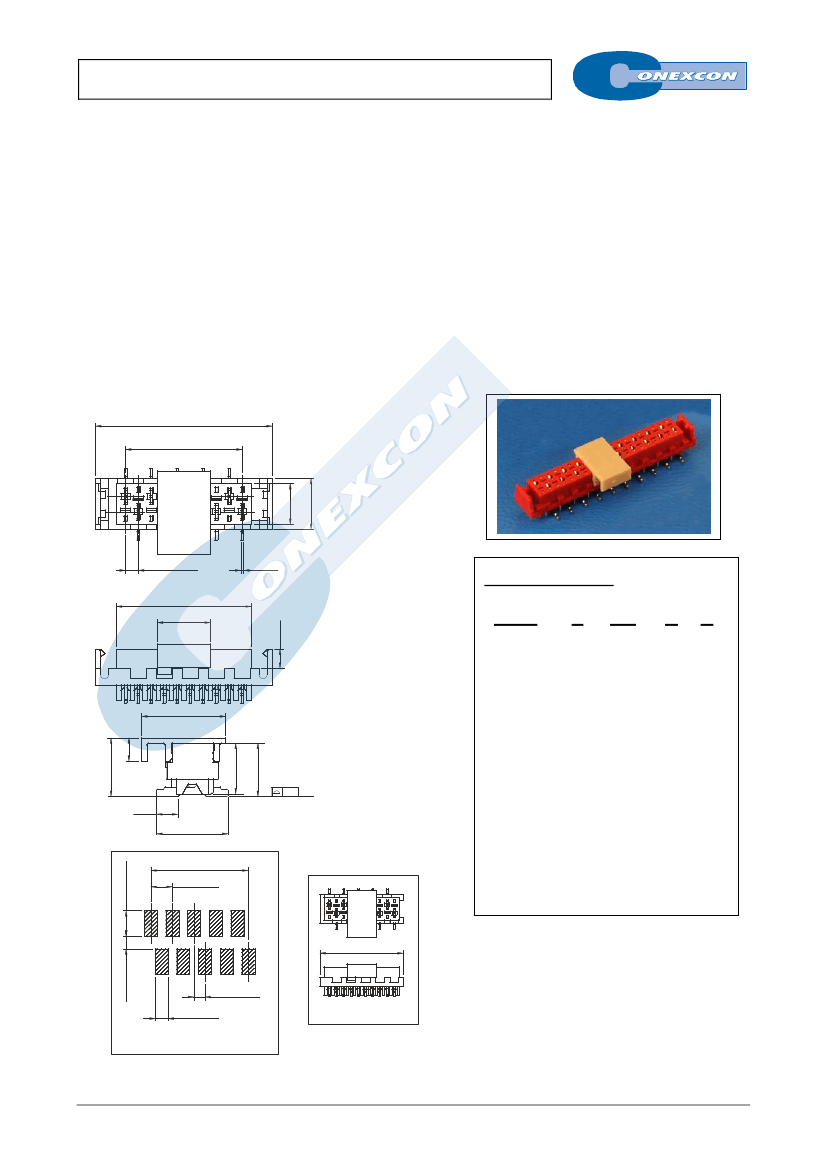

D/ ROW TOP ENTRY PCB SMT FEMALE CON.

5434 SERIES.

2.54 x 2.54 mm. (0.100 x 0.100”) pitch.

General Features

Electrical Features



Available in 4 through 26 circuits

Mates with 2.54 mm PCB connectors 5427, 5728,

5429 and 5430 series

Allows connections cable to PCB

With/Without latch



Voltage rating: < 250V

Current rating: < 1.50 A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: PBT + 15% GF UL 94V-0

Terminal: Phosphor bronze

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features

Pin retention force to insulator: > 0.50 Kgf

Mating force: < 0.50 Kgf per contact

Un-mating force: > 0.10 Kgf per contact

Durability: 25 Cycles

Dimension Information

B± 0.30

A± 0.10

1.27 ± 0.05

.050 ± .002

C± 0.20

0.25

.010

4.00

.157

5.0

.197

Ordering Information:

1.90

.075

5.2

.205

5434 -

T-

XX-

1. Connector Series

8.2

.323

.091

2.3

2. (T) Contact Plating



5.00

.197

5.25

.207

T =

Tin plated

3. (XX) Number of circuits

5.75

.226



0.1

Available in 4 through 26 circuits

4. (S) Latch Type

2.10

.083

7.0

.276

3.0 ± 0.10

.118 ± .004

A± 0.10

2.54 ± 0.05

TYP.

.100 ± .002



S =

Without latch

S =

With latch

5. (E) Packing Options

E =

Tube+Pad

E =

Reel+Pad

D± 0.30

1.50 ± 0.05

.059 ± .002

Dimensions:

= 1.27 x (XX-1)

= 1.27 x (XX)+4.60

= 1.27 x (XX)+0.53

= 1.27 x (XX)+2.00

(XX) = Number of circuits

1.27 ± 0.05

.050 ± .002

1.50 ± 0.05

.059 ± .002

Without Ears

RECOMMENDED HOLE PATTERN

A-XX

FULL LINE CATALOGUE
