TS0406F datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TS0406F

Preview

TS0406F: DescriptionFixed Attenuator, 0MHz Min, 2500MHz Max, LEAD FREE PACKAGE-4; CategoryWireless rf/communication Radio frequency and microwave; File Size118KB，2 Pages; ManufacturerSmiths Group; Environmental Compliance

Download Datasheet Parametric Compare View All

TS0406F Overview

Fixed Attenuator, 0MHz Min, 2500MHz Max, LEAD FREE PACKAGE-4

TS0406F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Smiths Group
Reach Compliance Code	compliant
Nominal attenuation	6 dB
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	30 dBm
JESD-609 code	e4
Maximum operating frequency	2500 MHz
Minimum operating frequency
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	SILVER
Maximum voltage standing wave ratio	1.25

Preview

Download Datasheet

View All

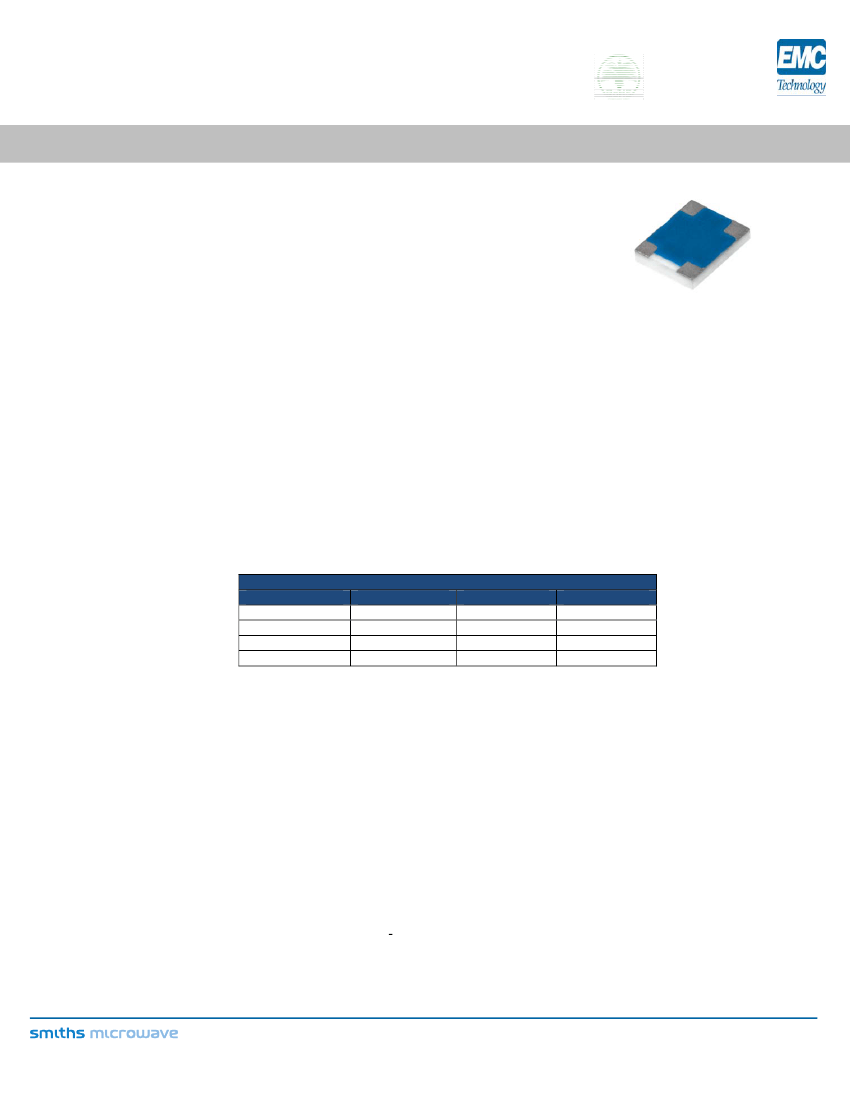

ATTENUATOR

CHIP 1 WATT

DATA SHEET

FEATURES

Small Footprint

High Power

Surface Mount

Low VSWR

Easy Installation

Wide Attenuation Offering

PART SERIES: TS04XXF

APPLICATIONS

Mobile Networks

Broadcast

High Power Amplifiers

Isolators/Circulators

Military

Instrumentation

SHEET 1 OF 2

Dwg 1010695

EN 16-1136

Revision C

GENERAL DESCRIPTION

EMC Technology offers the widest selection of chip attenuators worldwide. Chip components are offered in Alumina, Aluminum Nitride,

Beryllium Oxide, and CVD diamond for maximum performance.

ORDERING INFORMATION

Part Identifier:

TS04XXF

(XX) – dB Value

SPECIFICATIONS

1.0 ELECTRICAL

Nominal Impedance:

Frequency Range:

Attenuation Values Available:

Attenuation Accuracy:

ATTENUATION ACCURACY

dB

DC – 2.5 GHz

2.6 – 4 GHZ

4 – 6 GHz

1–3

±0.3

±0.5

4–6

±0.4

±0.5

7 – 10

±0.5

±0.75

20

±2.0

-

1 Watts full rated power to 85c, derated linearly to 0 watts at 150c.

DC – 2.5 GHz - 1.15:1

2.6 - 6 GHz - 1.25:1

50 ohms

DC – 6 GHz

1 – 10 in 1 dB increments and 20 dB

Input Power CW:

VSWR:

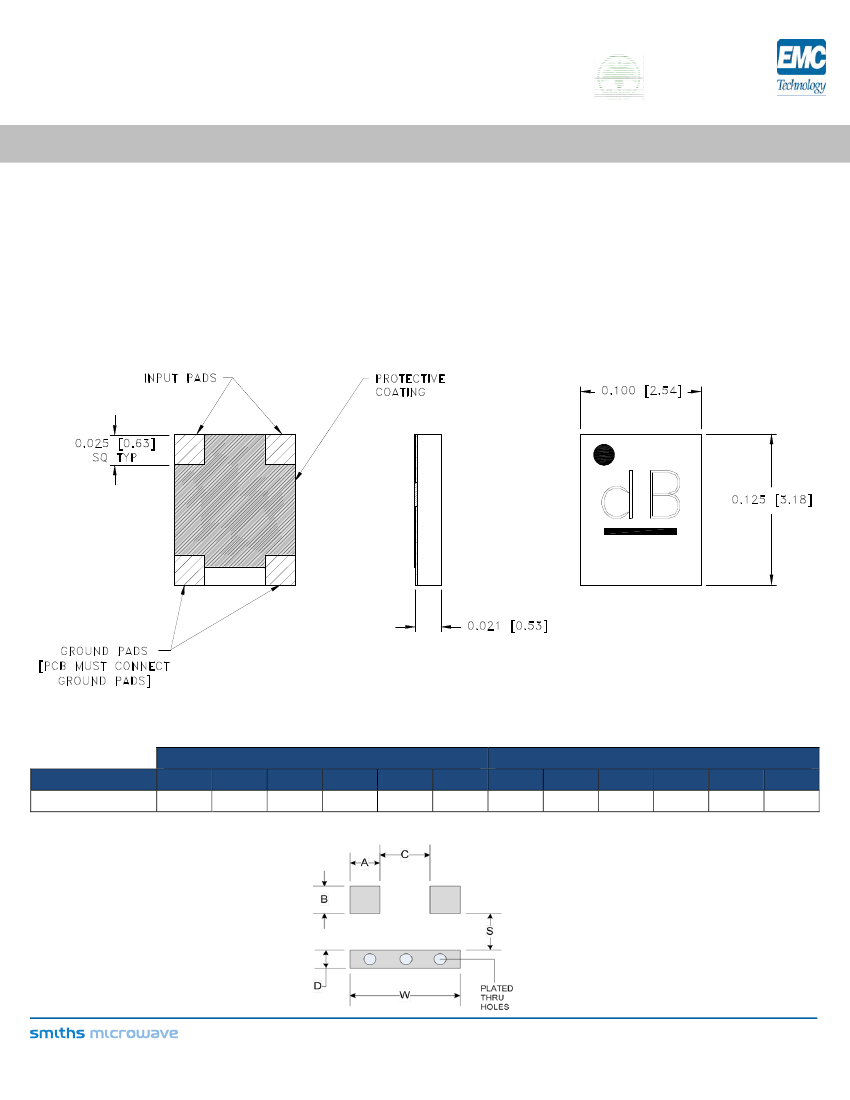

2.0 ENVIRONMENTAL

Operating Temperature:

Non-operating Temperature:

-55˚C to +150˚C

-65˚C to +150˚C

3.0 MARKING

Unit Marking:

“dB Value” and Input Dot

4.0 QUALITY ASSURANCE

Sample Inspect Per MIL-STD-105, Level II, 1.0% AQL.

Visual and Mechanical Inspection for Conformance to Outline Drawing

Measure Attenuation and VSWR

Data Retention - Standard

Form 423F110

Cage Codes: 24602 / 2Y194

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified

TS0406F Related Products

	TS0406F	TS0404F	TS0405F	TS0401F	TS0402F	TS0409F	TS0408F	TS0420F
Description	Fixed Attenuator, 0MHz Min, 2500MHz Max, LEAD FREE PACKAGE-4	Fixed Attenuator, 0MHz Min, 2500MHz Max, LEAD FREE PACKAGE-4	Fixed Attenuator, 0MHz Min, 2500MHz Max, LEAD FREE PACKAGE-4	Fixed Attenuator, 0MHz Min, 2500MHz Max, LEAD FREE PACKAGE-4	Fixed Attenuator, 0MHz Min, 2500MHz Max, LEAD FREE PACKAGE-4	Fixed Attenuator, 0MHz Min, 2500MHz Max, LEAD FREE PACKAGE-4	Fixed Attenuator, 0MHz Min, 2500MHz Max, LEAD FREE PACKAGE-4	Fixed Attenuator, 0MHz Min, 2500MHz Max, LEAD FREE PACKAGE-4
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Smiths Group	Smiths Group	Smiths Group	Smiths Group	Smiths Group	Smiths Group	Smiths Group	Smiths Group
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compli	compli
Nominal attenuation	6 dB	4 dB	5 dB	1 dB	2 dB	9 dB	8 dB	20 dB
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT	COMPONENT
Maximum input power (CW)	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm	30 dBm
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
Maximum operating frequency	2500 MHz	2500 MHz	2500 MHz	2500 MHz	2500 MHz	2500 MHz	2500 MHz	2500 MHz
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
RF/Microwave Device Types	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR	FIXED ATTENUATOR
Terminal surface	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER	SILVER
Maximum voltage standing wave ratio	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25
