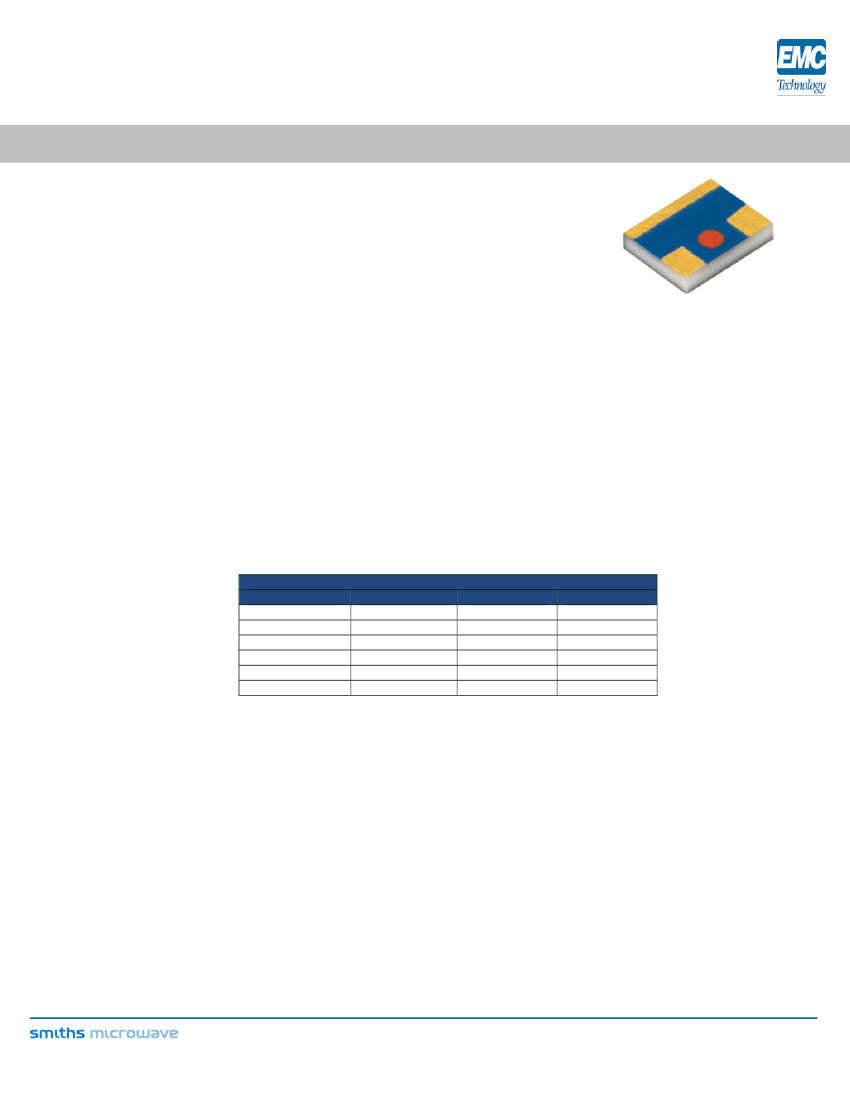

ATTENUATOR
CHIP 1 WATT
DATA SHEET
FEATURES
Small Footprint
High Power
Surface Mount
Low VSWR
Easy Installation
Wide Attenuation Offering
PART SERIES: TS05XXWB1
APPLICATIONS
Mobile Networks
Broadcast
High Power Amplifiers
Isolators/Circulators
Military
Instrumentation
SHEET 1 OF 2
Dwg 1004135
EN 16-0685
Revision K
GENERAL DESCRIPTION
EMC Technology offers the widest selection of chip attenuators worldwide. Chip components are offered in Alumina, Aluminum Nitride,
Beryllium Oxide, and CVD diamond for maximum performance.
ORDERING INFORMATION
Part Identifier:
TS05XXWB1
(XX) – dB Value
SPECIFICATIONS
1.0 ELECTRICAL
Nominal Impedance:
Frequency Range:
Attenuation Values Available:
Attenuation Accuracy:
ATTENUATION ACCURACY
dB
DC – 4 GHz
4 – 8 GHZ
8 – 12.4 GHz
0
-0,+ .3
-0,+.5
-0,+.5
1–3
±0.3
±0.5
±0.5
4–6
±0.4
±0.5
±0.5
7 – 10
±0.5
±0.5
±0.75
11 – 15
±0.75
+0.5,-3.0
+0.5,-3.5
16 - 20
±1.0
+0.5,-4.0
+1.0,-6.0
100 Milliwatts CW full rated power to 125c, derated linearly to 0 watts at 150c.
1 watt for 10us pulse width @ 1% duty cycle.
DC – 4 GHz - 1.25 Max
4 – 8 GHz - 1.35 Max
8 – 12.4 GHz - 1.50 Max
50 ohms
DC – 12.4 GHz
0 – 20 in 1 dB increments
Input Power CW:
Peak Power:
VSWR:
2.0 ENVIRONMENTAL
Operating Temperature:
Non-operating Temperature:
Temperature Coefficient:
Altitude Non-Operating
Altitude Operating:
Vibration:
Shock:
Moisture resistance:
-55˚C to +150˚C
-65˚C to +150˚C
+/-200 PPM / ˚C max
Sea level to 50,000 feet.
Sea level to 50,000 feet.
Per MIL-STD-202, METHOD 204, COND. D.
Per MIL-STD-202, METHOD 213, COND. I
Per MIL-STD-202, METHOD 106 except subcycle steps 7a and 7b and polarization and load
are not applicable.
Form 423F110
Cage Codes: 24602 / 2Y194
Specifications are Subject to Change Without Notice
www.emc-rflabs.com • +1 772-286-9300
AS 9100, ISO 9001 and 14001 Certified
ATTENUATOR
CHIP 1 WATT
DATA SHEET
3.0 MARKING
Unit Marking:
Marked only with color dot.
PART SERIES: TS05XXWB1
SHEET 2 OF 2
Dwg 1004135
EN 16-0685
Revision K
4.0 QUALITY ASSURANCE
Sample inspect per ansi/asqc z1.4 general inspection, level II, aql = 1.0.
Visual and mechanical examination for conformance to outline dwg requirements.
Perform inspection in accordance with 824W170 and 824F036 for commercial grade product.
Test data requirements:
No test data required for customer.
Data retention – 24 months packaging
Standard Packaging:
Tape and Reel
5.0 MECHANICAL
Resistive Film:
Terminal Material:
Ground Plane Material:

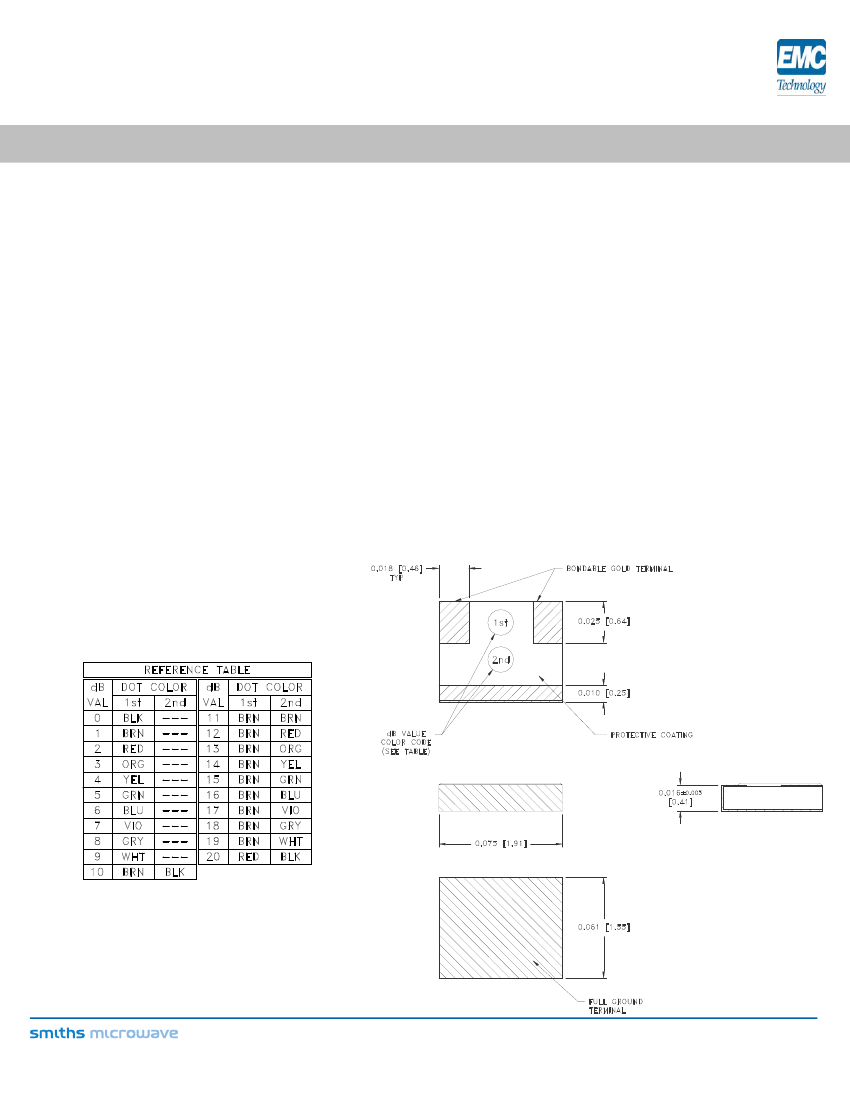

Metric Dimensions:
Workmanship
Thin Film, Tantalum Nitride
Thick Film, Bondable Gold.
Thick Film
Provided for reference only
PER MIL-PRF-55342
Unless Otherwise Specified:
TOLERANCE: X.XXX = ± 0.005
Form 423F110
Cage Codes: 24602 / 2Y194
Specifications are Subject to Change Without Notice
www.emc-rflabs.com • +1 772-286-9300
AS 9100, ISO 9001 and 14001 Certified
