BHRE60VSGA.47730 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BHRE60VSGA.47730

BHRE60VSGA.47730: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size424KB，2 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

BHRE60VSGA.47730 Overview

Board Connector, 60 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking

BHRE60VSGA.47730 Parametric

Parameter Name	Attribute value
Maker	Adam Tech
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.346 inch
subject depth	0.477 inch
body length	3.3 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	BHRE
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	60

BHRE60VSGA.47730 Preview

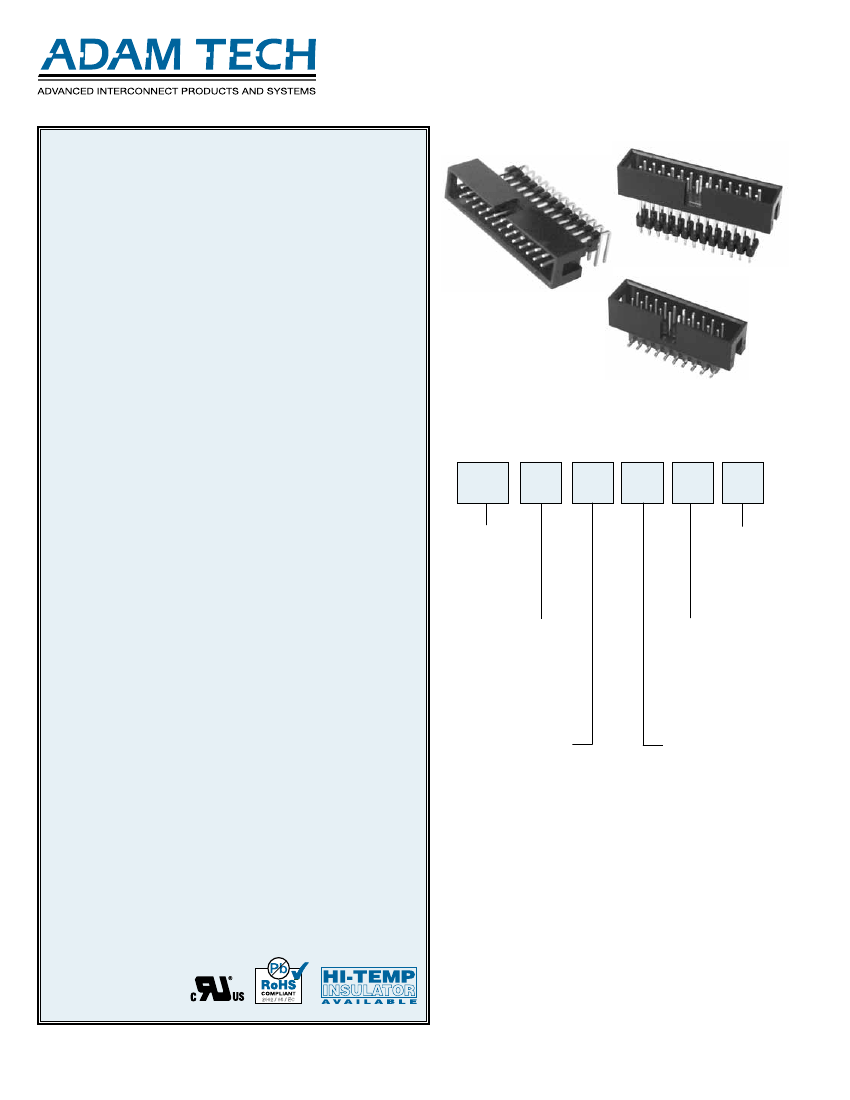

.100" ELEVATED BOx HEADERS

BHRE SERIES

INTRODUCTION:

Adam Tech BHRE Series Elevated Box Headers provide all of

the advantages of our standard Box Headers such as our Low

Profile design, snug fit & polarized mating but have additional

plastic insulators in place to stabilize rows of pins for stacking

applications. This series is available in Straight, Right Angle &

SMT mounting with standard or customer specified Stacking

Heights and PCB tail lengths.

FEATURES:

Elevated for Stacking applications

Low Profile design

Straight, Right Angle & SMT mounting options

Standard or customer specified Stacking

Heights & PCB tail lengths

MATING SOCkETS:

Adam Tech .100" X .100" dual row IDC sockets

SPECIFICATIONS:

Material:

Insulator: PBT, glass reinforeced, rated UL94V-0

Optional Hi-Temp insulator: Nylon 6T, rated UL94V-0

Insulator Color: Black (Gray optional)

Contacts: Brass

Plating:

U = Gold over nickel underplate

SG = Gold over nickel underplate on

contact area, tin over copper underplate on tails.

T = Tin over copper underplate overall

Electrical:

Operating voltage: 250V AC max.

Current rating: 1 Amp max

Contact resistance: 20 mΩmax. initial

Insulation resistance: 5000 MΩmin.

Dielectric withstanding voltage: 1000V AC for 1 minute

Mechanical:

Mating durability: 500 cycles min.

Temperature Rating:

Operating temperature: -40°C to +105°C

PACkAGING:

Anti-ESD plastic trays

SAFETy AGENCy APPROVALS:

UL Recognized & CSA Certified, File no. E224053

MOUNTING ANGLE

= Vertical

= Horizontal

.100" X .100" [2.54 X 2.54] CENTERLINE

ORDERING INFORMATION

BHRE

SERIES

INDICATOR

BHRE

.100

Elevated

Box Header

xxx

HEIGHT DIM x

Customer

specified

in inches

POSITIONS

10, 14, 16, 20,

24, 26, 30, 34,

40, 50, 60, 64

PIN LENGTHS

= Standard

solder tail

= Special length,

solder tail

customer specified

SMT

= Surface Mount

CONTACT PLATING

= Gold plated

= Tin plated

= Gold plating in

contact area,

Tin on tails

OPTIONS:

Add designator(s) to end of part number

= 30u" Gold on contact area

= Gray color insulator

= Hi-Temp insulator for Hi-Temp soldering processes

up to 260°C

(Add this option for thru-hole products only.

All SMT products are manufactured with Hi-Temp insulators)

322

www.adam-tech.com

.100" ELEVATED BOx HEADERS

BHRE SERIES

BHRE

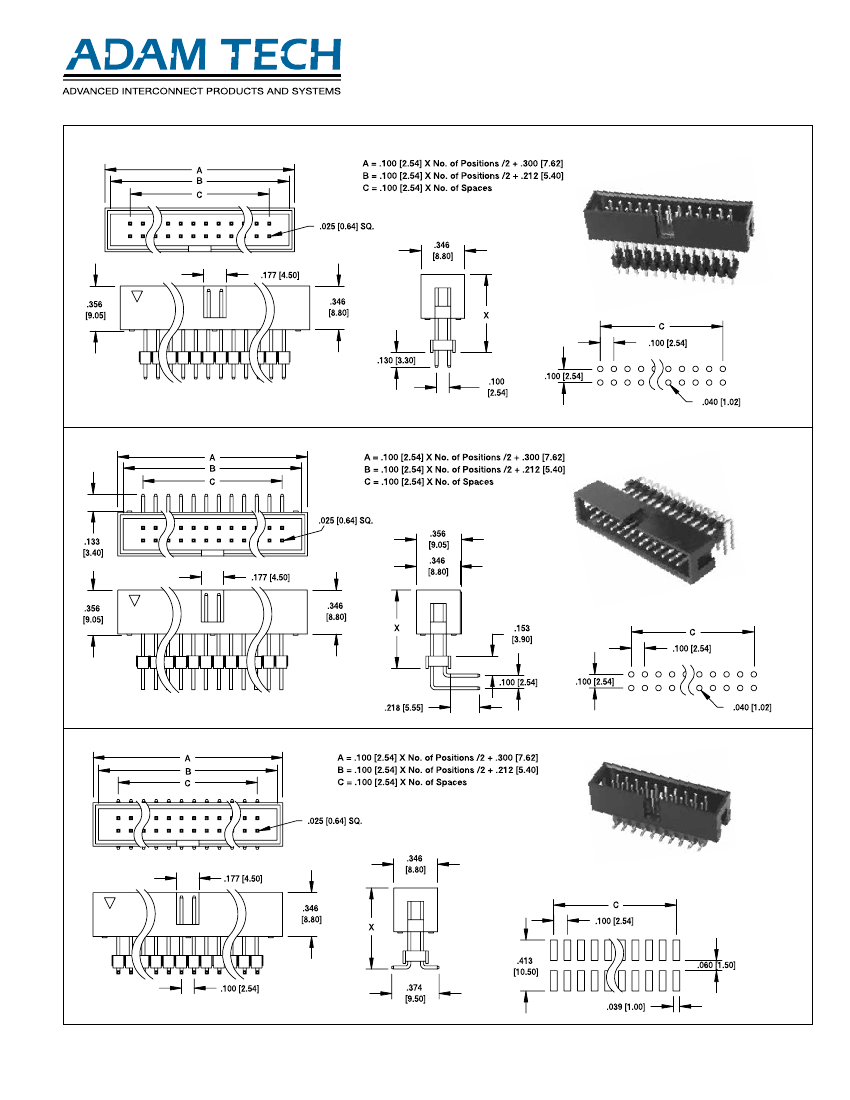

ELEVATED STRAIGHT

PCB MOUNT

.100" X .100" [2.54 X 2.54] CENTERLINE

BHRE-26-VUA-.477

BHRE

ELEVATED RIGHT ANGLE

PCB MOUNT

BHRE-26-HUA-.477

BHRE

ELEVATED SMT

BHRE-20-VU-SMT-.477

www.adam-tech.com

323
