3000R-208TB-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3000R-208TB-L

3000R-208TB-L: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.118 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size1MB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

3000R-208TB-L Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.118 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

3000R-208TB-L Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.29 inch
subject depth	0.48 inch
body length	1.089 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	3000
Plug contact pitch	0.118 inch
Match contact row spacing	0.118 inch
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.9972 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.9972 mm
Termination type	SOLDER
Total number of contacts	16

Preview

Download Datasheet

View All

Ratioplast - Electronics

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.:+49 (0) 5741 / 23661-0 / Fax: +49 (0) 5741 / 23661-20

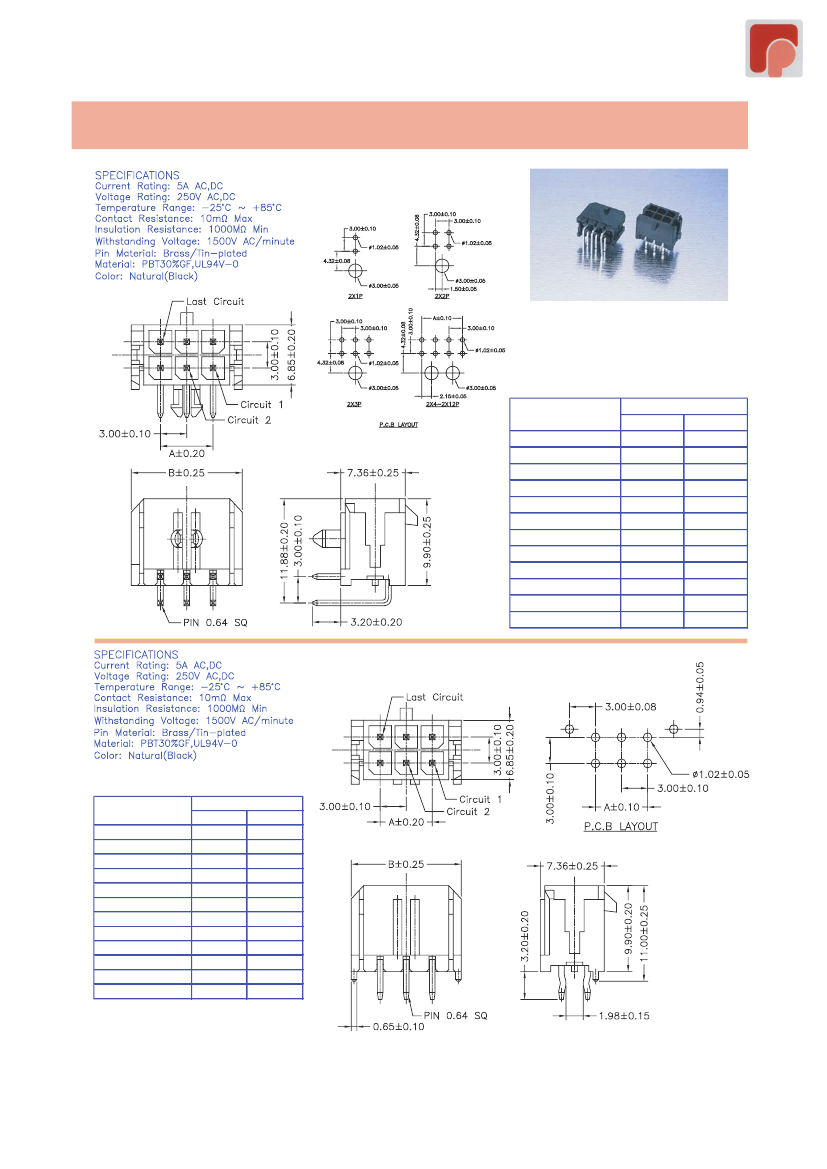

3.0mm WAFER 2 ROWS RIGHT ANGLE / STRAIGHT TYPE

Part No.:3000R-2XXTB-L

PART NO.

3000R-201TB-L

3000R-202TB-L

3000R-203TB-L

3000R-204TB-L

3000R-205TB-L

3000R-206TB-L

3000R-207TB-L

3000R-208TB-L

3000R-209TB-L

3000R-210TB-L

3000R-211TB-L

3000R-212TB-L

Dimensions

---

6.65

3.00

9.65

6.00

12.65

9.00

15.65

12.00

18.65

15.00

21.65

18.00

24.65

21.00

27.65

24.00

30.65

27.00

33.65

30.00

36.65

33.00

39.65

PART NO.

3000S-201TB-L

3000S-202TB-L

3000S-203TB-L

3000S-204TB-L

3000S-205TB-L

3000S-206TB-L

3000S-207TB-L

3000S-208TB-L

3000S-209TB-L

3000S-210TB-L

3000S-211TB-L

3000S-212TB-L

Dimensions

---

6.65

3.00

9.65

6.00

12.65

9.00

15.65

12.00

18.65

15.00

21.65

18.00

24.65

21.00

27.65

24.00

30.65

27.00

33.65

30.00

36.65

33.00

39.65

Part No.:3000S-2XXTB-L
