1155-A010-03S: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size351KB，1 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric View All

1155-A010-03S Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle

1155-A010-03S Parametric

Parameter Name	Attribute value
Maker	Tekcon Electronics Corp
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	0.5MM SQ PIN
body width	0.079 inch
subject depth	0.079 inch
body length	0.236 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	1155
Plug contact pitch	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	3

1155-A010-03S Preview

b

http://www.tekcon.com

http://www.tekcon.com.tw

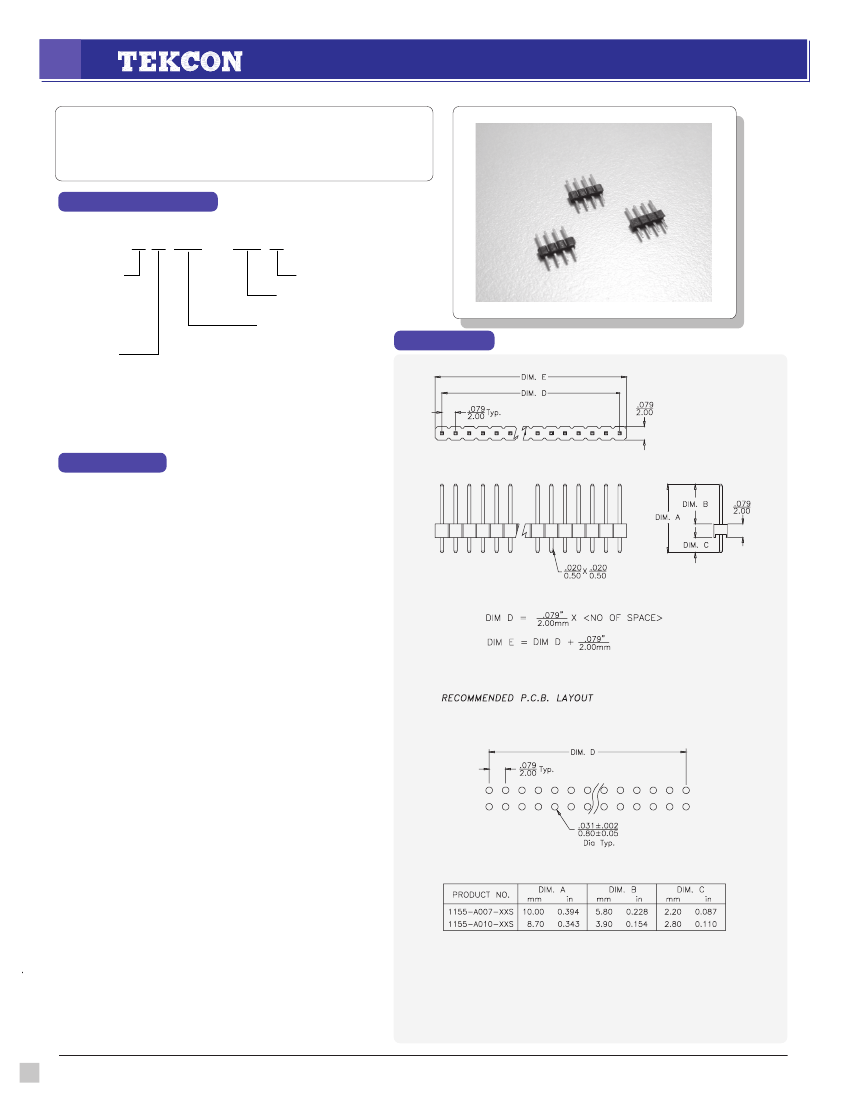

1155 Series

2.00 mm PIN Header

Single Row, Straight

Ordering Information

1155

-

X X XX

-

XX S

Contact Plating

0 - G/F / Tin

A - Gold Flash

B - 10

µ"

Gold

C - 15

µ"

Gold

D - 20

µ"

Gold

Insulator Type

0 - 2.0mm

2 - 1.5mm

3 - 2.00+1.50mm

6 - dual body

7 - 2.00+2.00+2.00mm

S - Straight

NO. of Contact

2 TO 40 Positions

PIN Type

Please refer to Drawing

Dimensions

Specification

p

Materials:

s

Insulator:

High Temperature Glass Fiber Reinforced

Thermoplastic , UL94V-0.

s

Contact:

Brass, 0.5mm Square PIN.

s

Plating:

Gold.

p

Electrical:

s

Insulation Resistance:

5000 MΩ Minimum.

s

Dielectric Withstanding Voltage:

500 VAC R.M.S.

s

Voltage Rating:

250V.

s

Current Rating:

1 AMP.

p

Enviromental

s

Temperature: -558C to +1258C

v

All Dimensions are shown in in/mm.

v

The above ordering data is for our standard

products.

For Non-Standard products, please contact

TEKCON Electronics Corporation.

TEKCON Electronics Corporation

2-10

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
