MGZ8540-6-25-2626

Description
Board Connector, 26 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size43KB,1 Pages
ManufacturerStocko Contact GmbH & Co Kg
Websitehttps://www.stocko-contact.com
Environmental Compliance
Download Datasheet Parametric View All

MGZ8540-6-25-2626 Overview

Board Connector, 26 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

MGZ8540-6-25-2626 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerStocko Contact GmbH & Co Kg
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.1 inch
subject depth0.1 inch
body length2.6 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1500VAC V
Filter functionNO
IEC complianceNO
Insulation resistance1000000000 Ω
insulator materialPOLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Manufacturer's serial numberMGZ8540
Plug contact pitch0.1 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
Rated current (signal)4 A
GuidelineUL,VDE
reliabilityCOMMERCIAL
Terminal length0.128 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts26
Serien /
Series
Raster

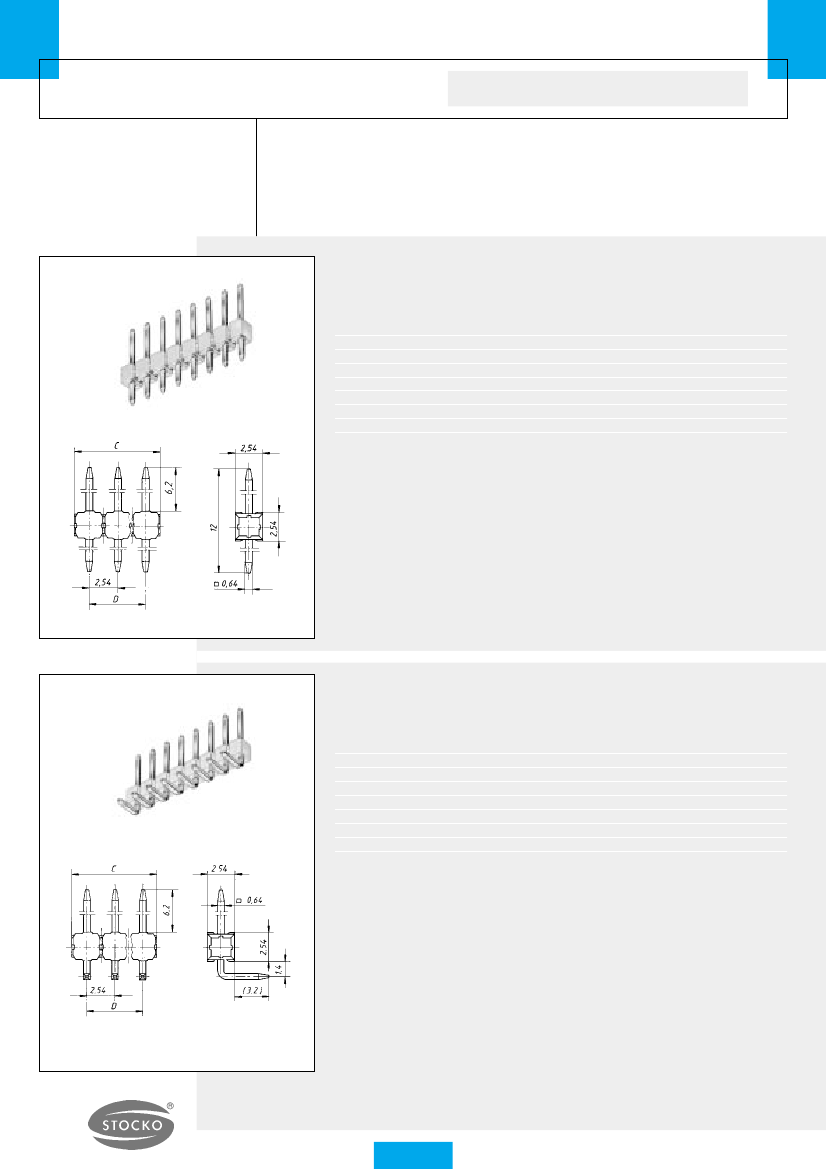

S tiftleisten, R aster 2,54 mm
Pin strips, pitch 2.54 mm
MGZ 8540, 8543
Serie MGZ 8540, stehend, einreihig
Series MGZ 8540, vertical, single row
Polzahl
Positions
1
2
3
-
-
-
50
Artikel-Nummer
Part number
MGZ
MGZ
MGZ
-
-
-
MGZ
8540 - 6 - 0 - 101
8540 - 6 - 1 - 202
8540 - 6 - 2 - 303
Abmessungen C Abmessungen D
Dimensions C
Dimensions D
2,54
5,08
7,62
-
-
-
127,00
-
2,54
5,08
-
-
-
124,46
8540 - 6 - 49 - 5050
Serie MGZ 8543, liegend, einreihig
Series MGZ 8543, horizontal, single row
Polzahl
Positions
1
2
3
-
-
-
50
Artikel-Nummer
Part number
MGZ
MGZ
MGZ
-
-
-
MGZ
8543 - 6 - 0 - 101
8543 - 6 - 1 - 202
8543 - 6 - 2 - 303
Abmessungen C Abmessungen D
Dimensions C
Dimensions
D
2,54
5,08
7,62
-
-
-
127,00
-
2,54
5,08
-
-
-
124,46
8543 - 6 - 49 - 5050
