Internationally Approved Rockers
Series JWS

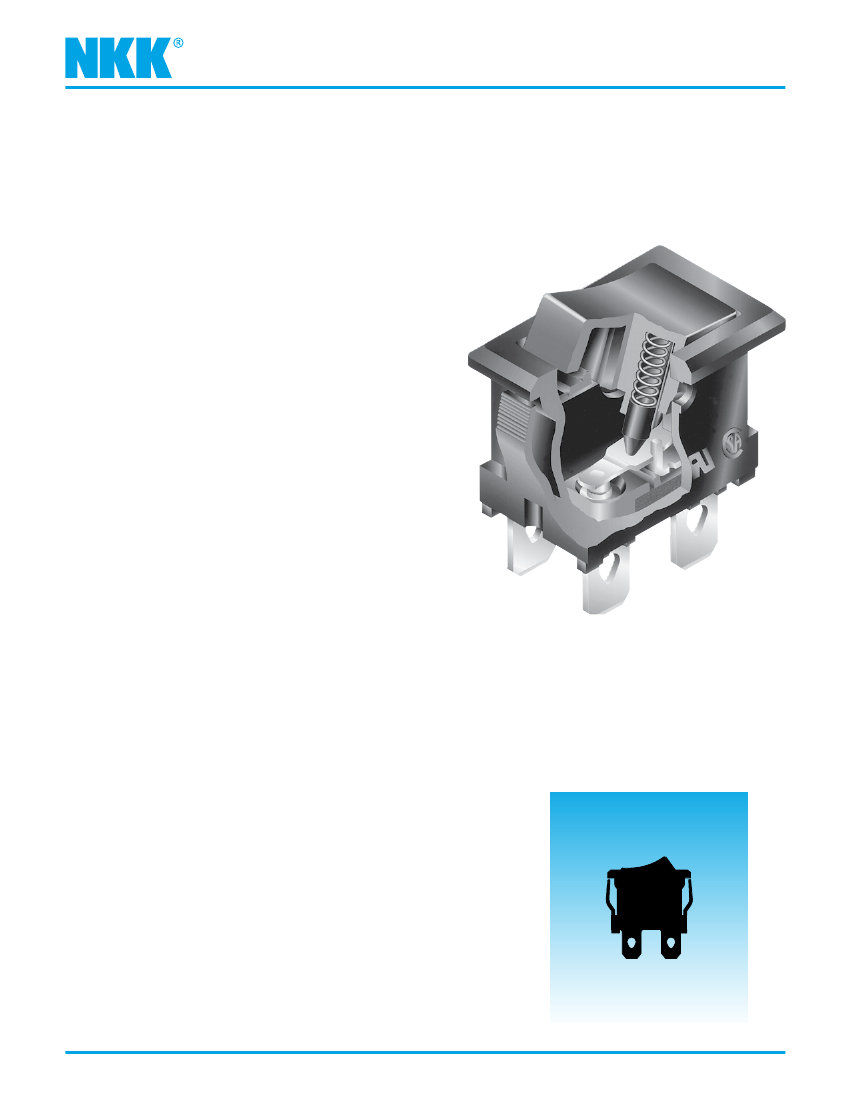

Distinctive Characteristics
Rocker caps and housing available in a variety of colors.
Protective barrier available to prevent accidental
actuation.
Constructed for dust resistance with interior cover
of polyamide between actuator and contact area.
Easy, crisp actuation.
Small size well suited for telecommunication, measuring,
automation, and consumer applications.
Terminals are molded in to lock out flux, dust, and
other contaminants.
Outer case of heat resistant resin meets UL94V-0 flammability standard.
Spot illuminated rocker available.
Actual Size
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
02-08
Internationally Approved Rockers
Series JWS
General Specifications
Electrical Capacity (Resistive Load)
Power Level:
10A @ 125/250V AC
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Nominal Operating Force:
Angle of Throw:
10 milliohms maximum
500 megohms minimum @ 500V DC
2,000V AC minimum between contacts for 1 minute minimum;
4,000V AC minimum between contacts & case for 1 minute minimum
30,000 operations minimum
10,000 operations minimum
Single Pole 3.92N & Double Pole 5.39N
30°
Materials & Finishes
Rocker:
Housing/Case:
Movable Contactor:
Movable Contacts:
Stationary Contacts:
End Terminals:
Common Terminals:
Lamp Terminals:
Polyphenylene ether (UL94V-0)
Polyamide (UL94V-0)
Copper with silver plating
Silver
Silver
Brass with silver plating
Copper with silver plating
Phosphor bronze with tin plating (illuminated models only)
Environmental Data
Operating Temp Range:
Humidity:
Vibration:
Shock:
Sealing:
–25°C through +70°C (–13°F through +158°F) for nonilluminated models;
–25°C through +50°C (–13°F through +122°F) for illuminated models
90 ~ 95% humidity for 96 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range
& returning in 15 minutes; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Dust resistant inner seal
Installation
Soldering:
Cleaning:
Manual Soldering: See Profile A in Supplement section.
These devices are not process sealed. Hand cleaning locally using alcohol based solution.
Standards & Certifications
Flammability Standards:
UL Recognized:
C–UL Recognized:
CSA Certified:
V
D E
R
VDE Approved:
UL94V-0 for rocker & housing/case
All JWS models recognized at 6A @ 125/250V AC;
UL File No. WOYR2.E44145
All JWS models recognized at 6A @ 125/250V AC;
UL File No. WOYR8.E44145
All JWS models certified at 6A @ 125/250V AC;
CSA File No. 023535-0-000
All JWS models approved at 5A (3A) @ 125/250V AC;
VDE License No. 119153
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
02-08
Internationally Approved Rockers

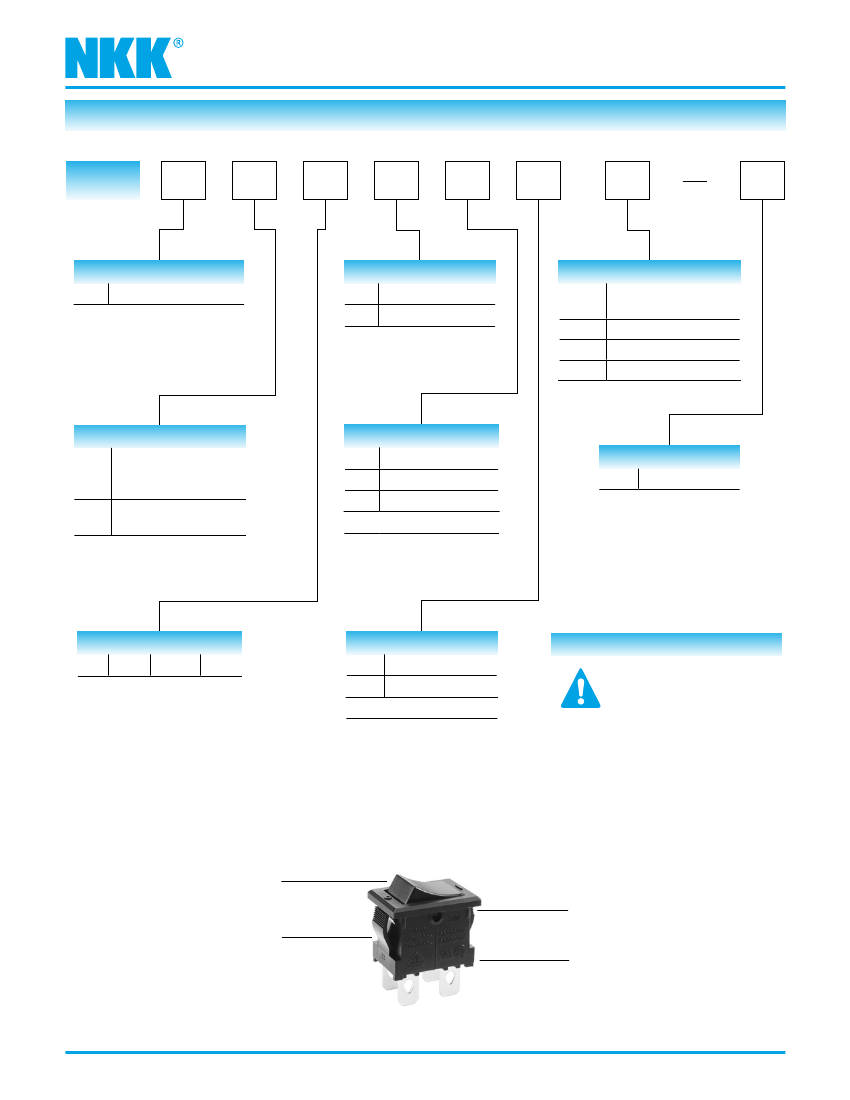

TYPICAL SWITCH ORDERING EXAMPLE
Series JWS
JW
S
RATING
2
1
R
A
A
SPOT ILLUMINATION
No
Code
C
D
F
Nonilluminated
Red LED
Amber LED
Green LED
BARRIER TYPES
R
B
No Barrier
With Barrier
S
10A @ 125/250V AC
POLES
1
2
SPST
Nonilluminated &
Illuminated
DPST
Nonilluminated only
A
*
B
C
CAP COLORS
Black
Ivory
Red
BARRIER COLOR
A
Black
* For Nonilluminated only
CIRCUIT
1
ON
NONE
OFF
HOUSING COLORS
A
*
B
Black
Ivory
IMPORTANT:
Standard markings: UL, C–UL,
& CSA on 6A models; VDE on 5A
models. Specific models & ratings
for international approvals noted
on General Specifications page.
* For Nonilluminated only
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
JWS21RAA
Black Rocker Cap
Black Housing/No Barrier
DPST
ON-NONE-OFF Circuit
Rated 6A @ 125/250V AC
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
02-08

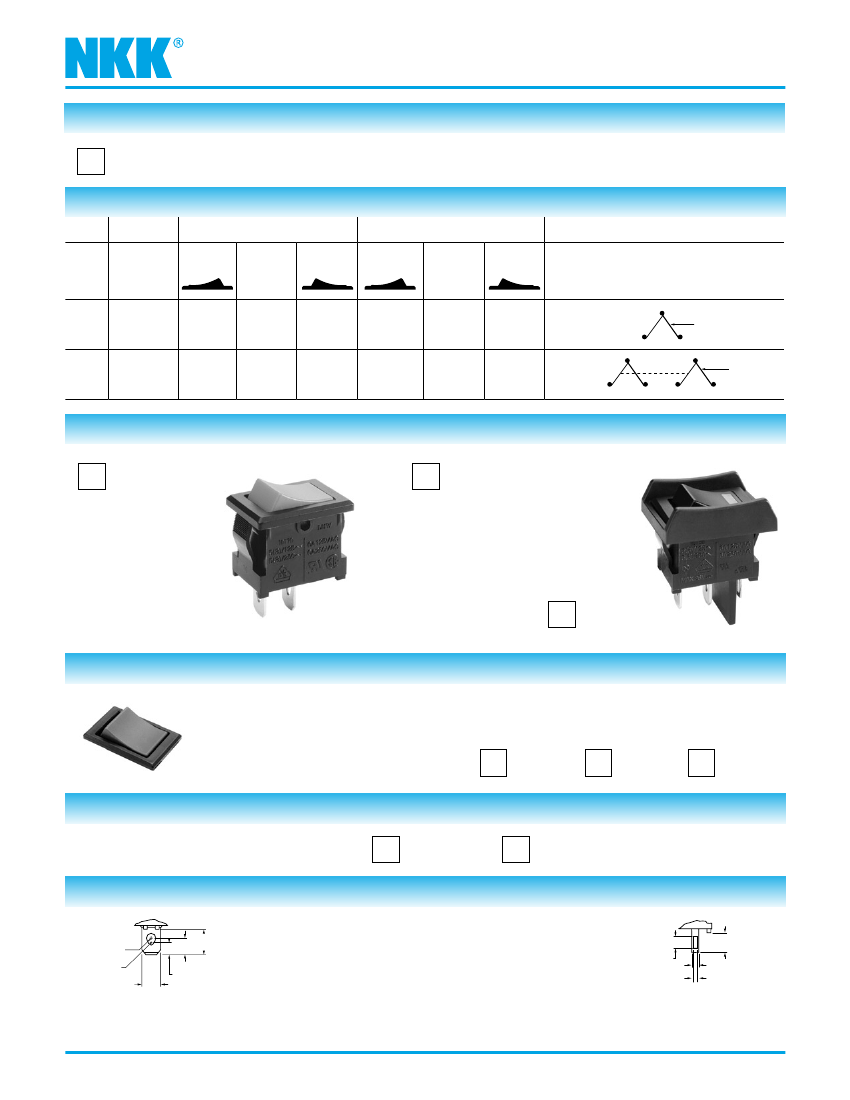

Internationally Approved Rockers
RATING
S
Power Level
6A @ 125/250V AC
Series JWS
POLES & CIRCUITS
Rocker Position
Down
Pole
SP
Model
JWS11
ON
NONE
OFF
2-3
OPEN
OPEN
Center
Up
Connected Terminals
Down
Center
Up
Throw & Schematics
Note: Terminal numbers are actually
on the switch.
SPST
INTERNAL
CONNECTION
2
3
DP
JWS21
ON
NONE
OFF
1-3 4-6
OPEN
OPEN
DPST
1
3
4
6
INTERNAL
CONNECTION
BARRIER TYPES & COLORS
R
No Barrier
B
With Barrier
No-barrier type has
a flat flange which
is an integral part
of the switch.
Barrier Material: Polyamide
Finish: Matte
Barrier AT219 is factory assembled.
Dimensions for barrier are
shown in the Accessories section.
Barrier Color Available:
A
Black
CAP COLORS
Cap Material:
Polyphenelene Oxide
Finish: Matte
Rocker cap is an integral part of the switch and not available separately.
* Ivory for nonilluminated models only.
Cap Colors
Available:
A
Black
B
* Ivory
C
Red
HOUSING
Material: Polyamide
Finish: Matte
Colors Available:
A
Black
B
Ivory (for nonilluminated models only)
TERMINALS
(1.2) R
.047
(0.65) R
.026
(4.75)
.187
(6.4)
(4.4) .252
.173
(3.25)
.128
Thk = (0.5)
.020
Solder Lug/.187” (4.75mm) Quick Connect
Switch assembly with connectors
is not UL, CSA, C-UL, or VDE approved.
(3.0)
(1.8)
.118
.071
(1.0)
.039
Thk = (0.25)
.010
(5.0)
.197
Switch
Lamp
(spot illuminated models only)
02-08
NKK Switches • email: sales@nkkswitches.com • Phone (480) 991-0942 • Fax (480) 998-1435 • www.nkkswitches.com
Internationally Approved Rockers
Series JWS
D
Amber
20mA
15mA
1.9V
5V
0.27mA/°C
–25°C ~ +50°C
LED COLORS & SPECIFICATIONS FOR SPOT ILLUMINATED MODELS
LEDs are supplied as an integral part of
illuminated devices and are not available
separately. LED polarity markings are on
the bottom of the switch.
The electrical specifications shown here are
determined at a basic temperature of 25°C.
If the source voltage exceeds the rated
voltage, a ballast resistor is required. The
resistor value can be calculated by using the
formula in the Supplement section.
(+)
(-)
C
Color
Red
25mA
20mA
2.0V
4V
0.42mA/°C
I
FM
I
F
V
F
V
RM
∆I
F
F
Green
20mA
15mA
1.95V
5V
0.27mA/°C
Forward Peak Current
Continuous Forward Current
Forward Voltage
Reverse Peak Voltage
Current Reduction Rate
Above 25°C
Ambient Temperature Range

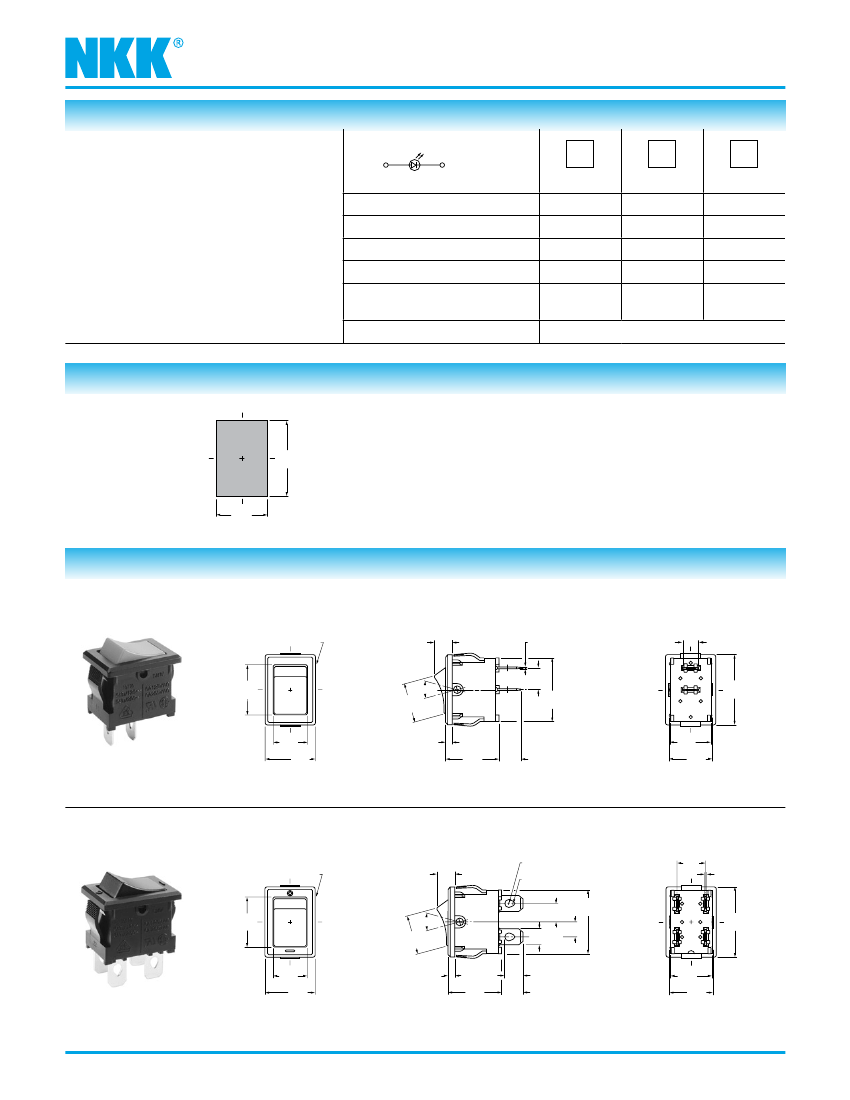

PANEL CUTOUT & PANEL THICKNESS RANGES
Panel Thickness Ranges:
(19.2)
.756
Without Barrier:
.030” ~ .079” (0.75mm ~ 2.0mm)
With Barrier:
.024” ~ .059” (0.6mm ~ 1.5mm)
(12.9)
.508
TYPICAL SWITCH DIMENSIONS
Nonilluminated • No Barrier
Part No.
Single Pole
(5.3)
.209
(0.5) Typ
.020
(6.5)
.256
(19.0)
.748
(4.75)
.187
3
2
(21.0)
.827
(15.0)
.591
30ϒ
(12.3)
.484
(10.2)
.402
(15.0)
.591
(2.0)
.079
(16.0)
.630
(6.4)
.252
(12.4)
.488
(12.8)
.504
JWS11RCA
Nonilluminated • No Barrier
Part No.
Double Pole
(5.3)
.209
(1.2)R Typ
.047
(0.65)R Typ
.026
(5.5)
.217
(19.0)
.748
(8.5)
.335
(0.5) Typ
.020
6
4
3
(21.0)
.827
(15.0)
.591
30ϒ
(12.3)
.484
(10.2)
.402
(15.0)
.591
(2.0)
.079
(5.6)
.220
(6.4)
.252
(4.5)
(4.75) Typ .177
.187
1
(16.0)
.630
(12.4)
.488
(12.8)
.504
JWS21RAA
DPST models have IEC symbols for On-Off on the flange.
02-08
