K6BGN1.5L306: DescriptionMiniature Key Switches; File Size178KB，3 Pages; ManufacturerC&K Components

Download Datasheet Compare View All

K6BGN1.5L306 Overview

Miniature Key Switches

Preview

Download Datasheet

View All

Miniature Key Switches

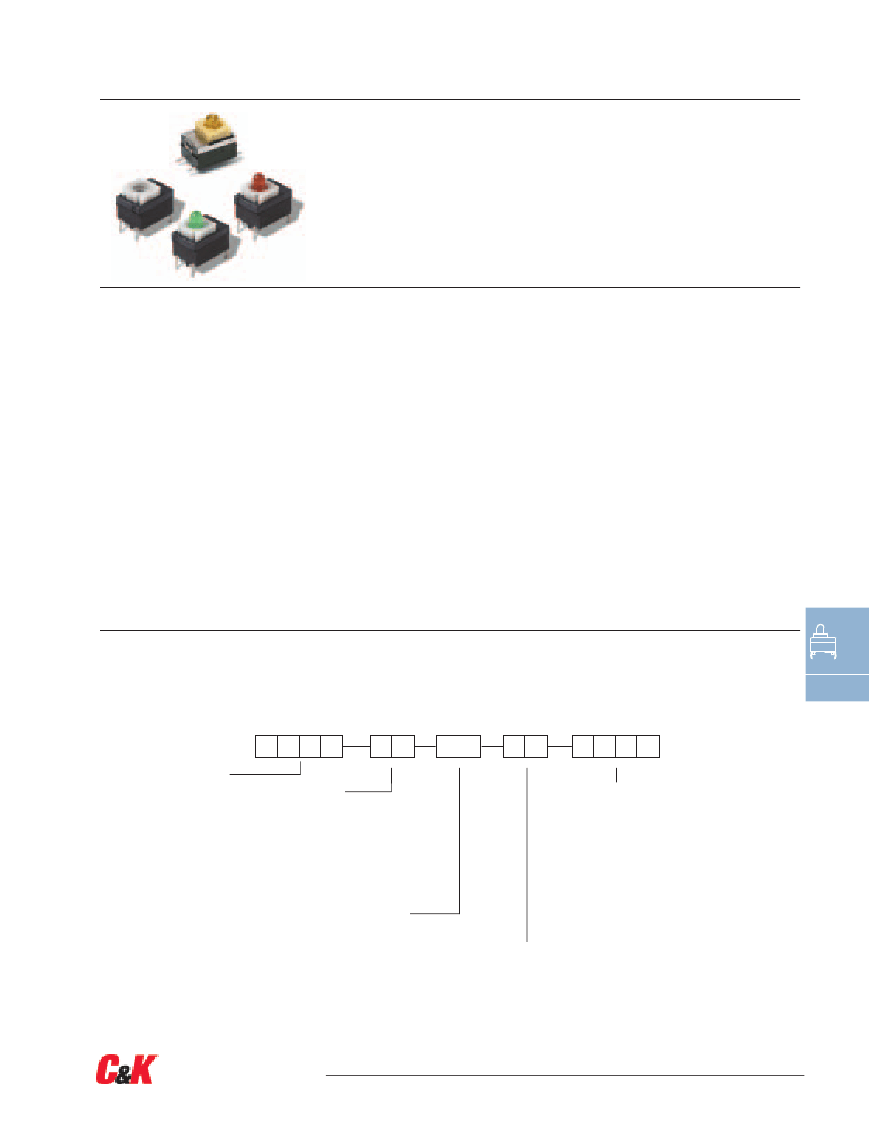

Features/Benefits

•

Excellent tactile feel

•

Wide variety of LED’s,

travel and actuation forces

Typical Applications

•

Automotive

•

Industrial electronics

•

Computers and network

equipment

•

Designed for low-level

switching

•

Detector version available

•

RoHS compliant

Construction

FUNCTION: momentary action

CONTACT ARRANGEMENT: 1 make contact = SPST, N.O.

DISTANCE BETWEEN BUTTON CENTERS:

min. 7,5 and 11,8 (0.295 and 0.465)

TERMINALS: Snap-in pins, tinned

MOUNTING: Soldered by PC pins, locating pins

PC board thickness: 1,5 (0.0591)

Electrical

SWITCHING POWER MIN./MAX.: 0.02 mW / 3 W DC

SWITCHING VOLTAGE MIN./MAX.: 2 V DC / 30 V DC

SWITCHING CURRENT MIN./MAX.: 10 µA /100 mA DC

DIELECTRIC STRENGTH (50 Hz)

1) 2)

≥

300 V

OPERATING LIFE:

≥

2 x 10

operations

≥1

X 10

operations for SMT version

CONTACT RESISTANCE: Initial

≤

50 mΩ

INSULATION RESISTANCE:

≥

Ω

BOUNCE TIME:

≤

1 ms

Operating speed 100 mm/s (3.94/s)

Mechanical

TOTAL TRAVEL/SWITCHING TRAVEL: 1,5/0,9 (0.059/0.035)

PROTECTION CLASS: IP 40 according to DIN/IEC 529

1) Voltage rise: 300 V/s

2) According to DIN 41640; IEC 512-2

3) Higher values upon request

Environmental

OPERATING TEMPERATURE: -40˚C to 85˚C.

STORAGE TEMPERATURE: -40˚C to 95˚C.

Packaging

THT: bulk in boxes of 500 pieces

SMT: bulk in boxes of 500 pieces

reels of 500 pieces (with LED) or 750 pieces (without LED)

Process

SOLDERABILITY:

THT: wave soldering, compatible with lead free soldering profile

Hand soldering, 350˚C for 3s

SMT: not compatible with lead free reflow profile

245˚C for 5s

How To Order

Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select

desired option from each category and place it in the appropriate box.

Note: Some of the configurations may not be available or could require some development.

Key Switches

Series

K6B

K6BL

with LED

K6S

SMT

K6SL

SMT with LED

1.5

LED*

NONE

Models without LED

Green

Yellow

Orange

Red

White

Blue

Travel

1.5

1,5mm (0.059)

Standard LED Code

NONE

Models without LED

L306

Green

L327

Yellow

L315

Orange

L352

Red

L302

White

L328

Blue

Operating Force

3 N 300 grams

5 N 500 grams

2N OD

2 N 200grams without snap-point

* Additional LED colors available by request.

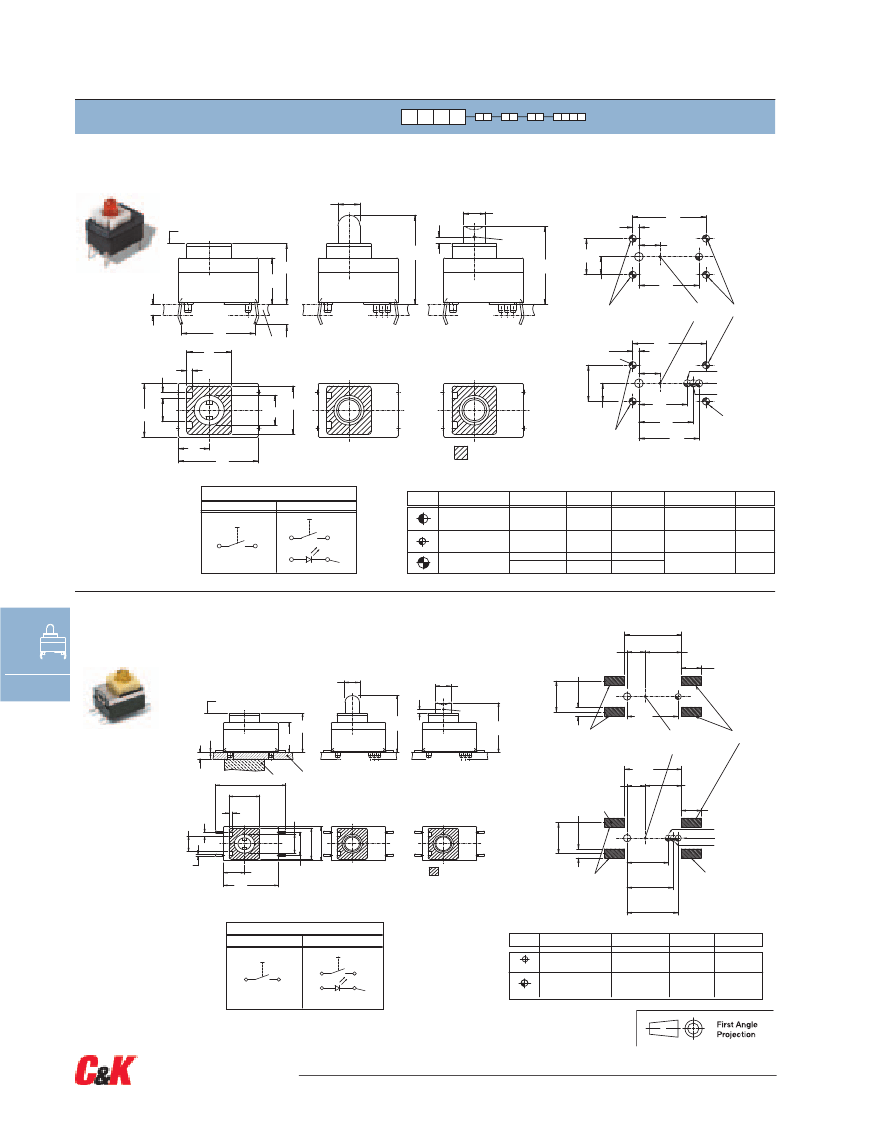

Dimensions are shown: mm

Specifications and dimensions subject to change

D–7

www.ck-components.com
