AUK CORP.
KB1608CW (KLB-16CW)
1. Descriptions
The KLB-16W is a ultra small and thin form package white LED and it's ideal for cellular phone key pad
back light, for devices of display modules and for indicators of various electrical appliances.
2. Features
◆
Small Footprint Surface Mount Package ( 1.6 L
×
0.8 W
×
0.36 H [mm])
◆
Forward Voltage(V
F
) from 2.7 to 3.5V @ Forward Current(I
F
)=10mA
◆
Operation Temperature from -30℃ to +85℃
◆
High Luminous Intensity(I
V
) is typical 175mcd @ I
F
=10mA
3. Application
◆
Cellular Phone Key Pad Back Light
◆
Indoor Display Modules
◆
Indicators for Electrical Appliances
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
Rev.O date: 01-FEB-11
AUK-LDM-001(A)
AUK CORP.
KB1608CW (KLB-16CW)

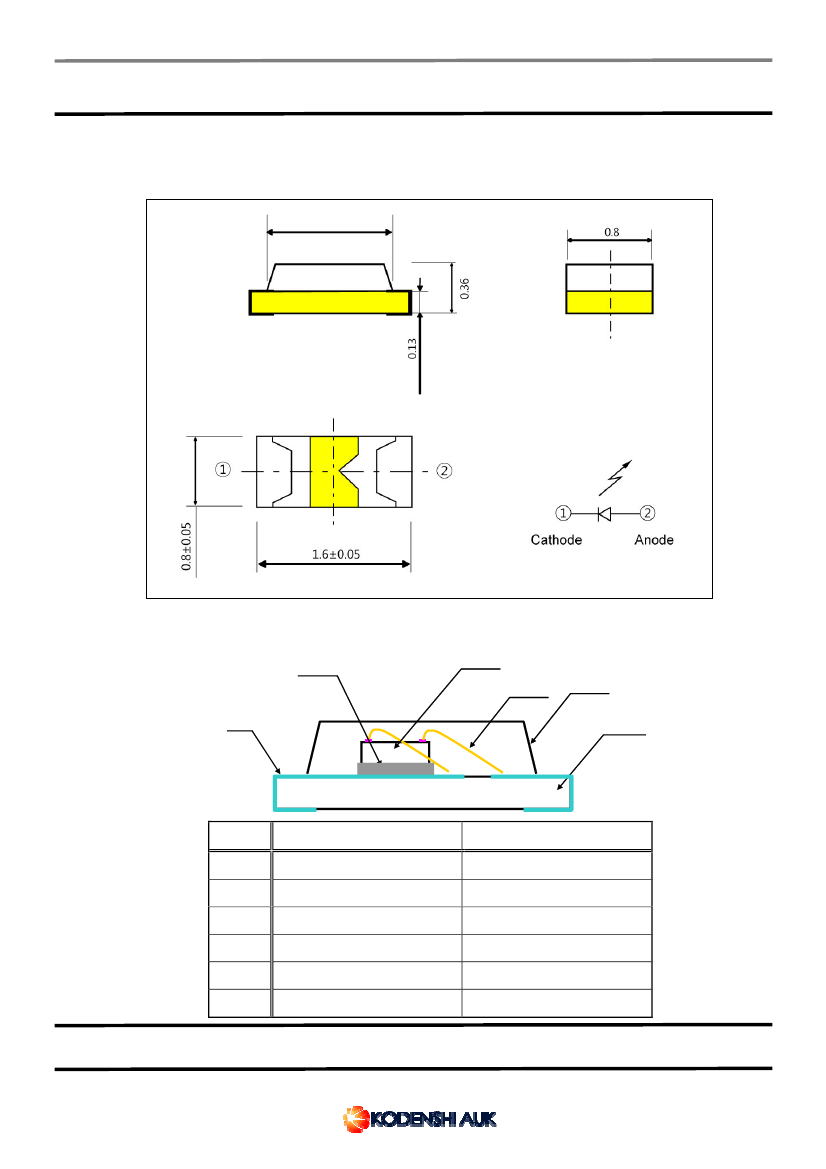

4. Outline Dimensions and Material Descriptions
◆
Outline Dimensions
◆
Material Descriptions
②
③
④
⑥
⑤
①
No.
①
②
③
④
⑤
⑥
Item
PCB
Paste
LED Chip
Wire
Encapsulant
Electrode
Material
BT Resin
Ag Epoxy
InGaN/Al
2
O
3
Au
Clear Epoxy
Au Plated Cu
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
Rev.O date: 01-FEB-11
AUK-LDM-001(A)
AUK CORP.
KB1608CW (KLB-16CW)
5. Absolute Maximums
ITEM
Forward Current
Peak Forward Current
*
Power Dissipation
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
I
F
I
FP
P
D
V
R
T
OP
Ts
T
sol
MIN
-
-
-
-
-30
-40
MAX
20
60
70
5
85
100
260
Unit
mA
mA
mW
V
℃
℃
℃
Conditions
5 Sec
* Remark : Duty Ratio
≤
1/10, Pulse Width
≤
10ms
6. Electro-Optical Characteristics (T
A
= 25℃)
ITEM
Forward Voltage
Intensity
Color Coordinate
Reverse Current
FWHM
Half angle
Symbol
V
F
I
V
X
Y
I
R
△λ
∆θ
MIN
-
-
-
-
-
-
TYP
3.0
175
0.200
0.170
-
35
160
MAX
-
-
-
-
10
-
Unit
V
mcd
Conditions
I
F
=10mA
I
F
=10mA
I
F
=10mA
µA
nm
deg
V
R
=5V
I
F
=10mA
I
F
=10mA
*1. Luminous intensity is tested at a current pulse duration of 20ms and accuracy of ±20%.
*2. Voltages are tested at a current pulse duration of 1ms and accuracy of ±0.1V.
*3. The Measurement tolerance of color coordinate is 0.01.
*4.
Θ
1/2 is the off-axis angle where the luminous intensity is 1/2 the peak intensity.
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
Rev.O date: 01-FEB-11
AUK-LDM-001(A)
AUK CORP.
KB1608CW (KLB-16CW)
◆
VF / IV / Chromaticity Rank @IF=10mA
Luminous Intensity Range[mcd]
Forward Voltage [V]
1 : 2.70 ~2.90
2 : 2.90 ~3.10
3 : 3.10 ~3.30
4 : 3.30 ~3.50
Luminuous Intensity [mcd]
a : 40 ~ 100
b : 100 ~ 200
c : 200 ~ 300
Chromaticity
A
B
C
D
E
F
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
Rev.O date: 01-FEB-11
AUK-LDM-001(A)
AUK CORP.
KB1608CW (KLB-16CW)

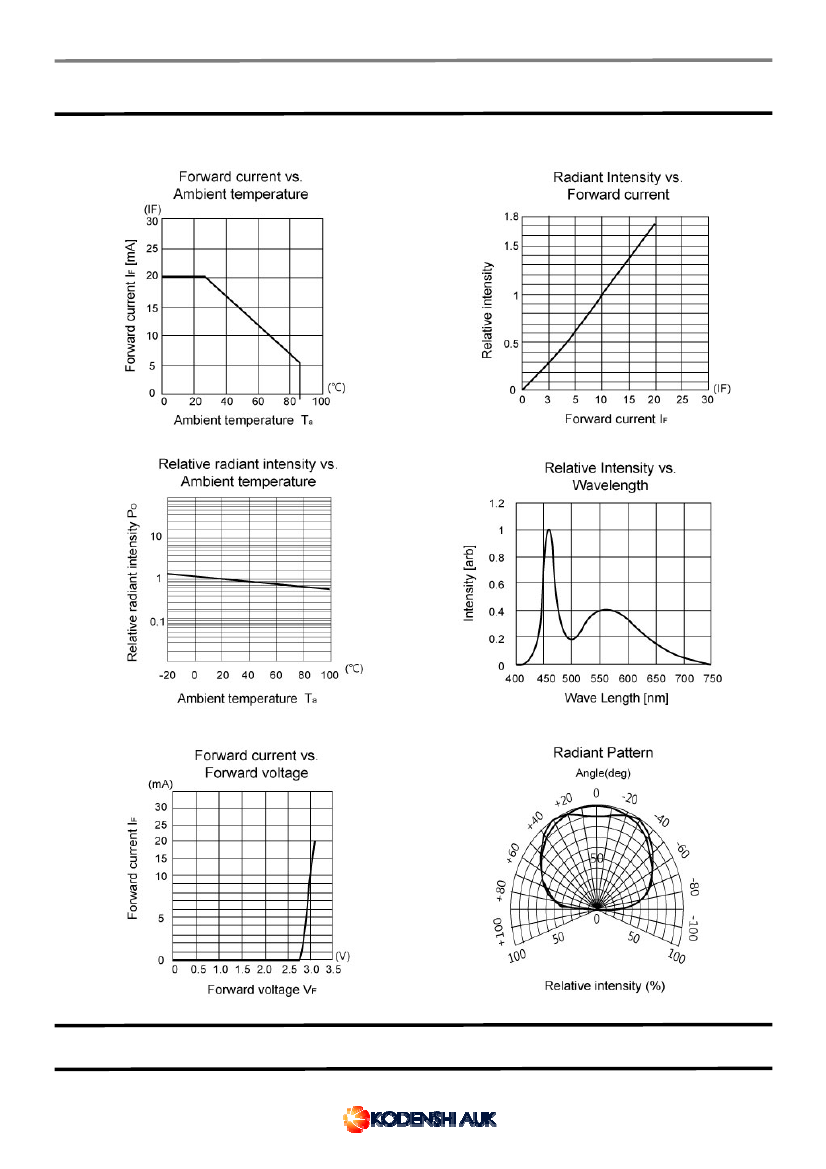

7. Characteristic Graphs
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
Rev.O date: 01-FEB-11
AUK-LDM-001(A)
