AUK CORP.
KB464AO60 (KLB-521 O)
1. Descriptions
KB464AO60 (KLB-521 O) is a high bright AlInGaP orange LED and has the optimized
optical characteristics. Technology : AlInGaP
2. Features
◆
Small Footprint Surface Mount Package ( 4.6 L × 4.7 W × 3.3 H [mm])
◆
Forward Voltage(VF) from 1.8 to 2.5V @ Forward Current(IF)=20mA
◆
Operation Temperature from -30℃ to +85℃
◆
Soldering methods : IR reflow soldering
◆
Taping : 8
㎜
conductive black carrier tape & antistatic clear cover tape
3. Application
◆
Automotive : audio and watch back light
◆
Indoor Display Modules
◆
Signal and symbol luminaire
◆
Amusement
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
Rev.O date: 08-AUG-11
AUK-LDM-001(A)
AUK CORP.
KB464AO60 (KLB-521 O)

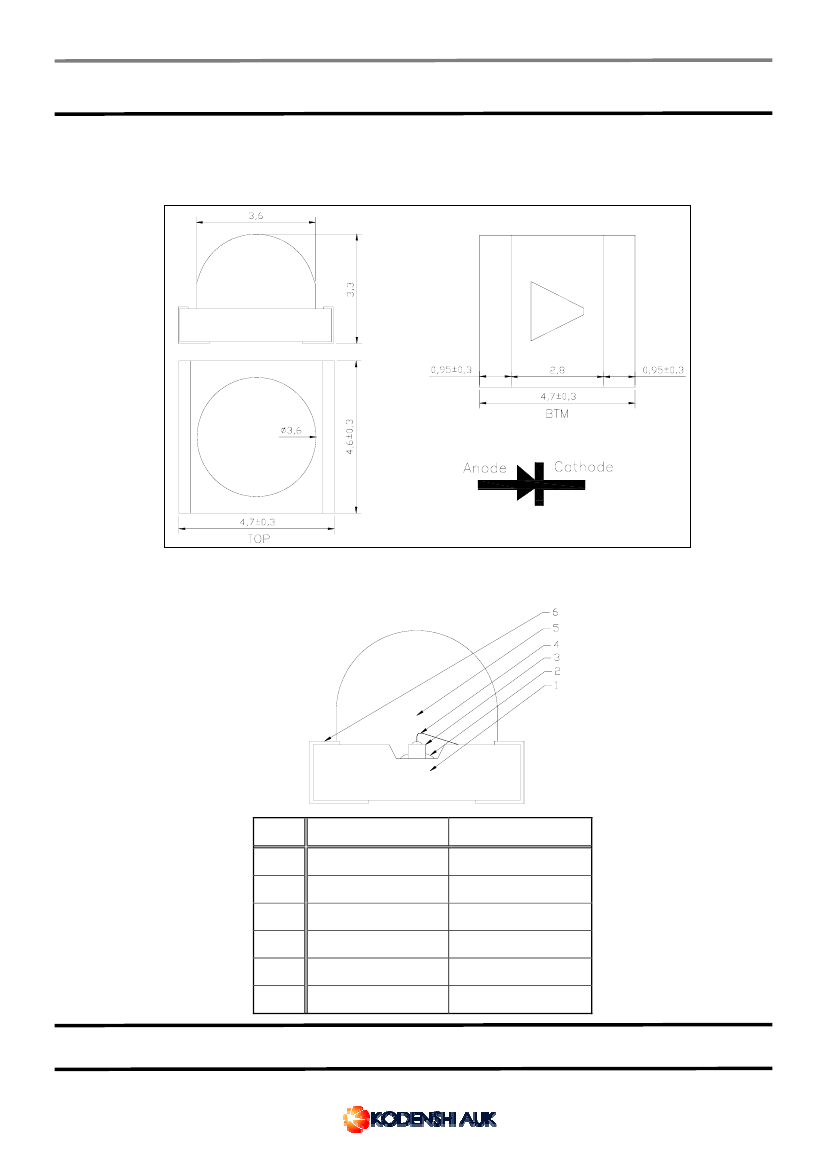

4. Outline Dimensions and Material Descriptions
◆
Outline Dimensions
◆
Material Descriptions
No.
①
②
③
④
⑤
⑥
ITEM
Package
Paste
LED Chip
Wire
EMC
Lead
Material
PCB
Ag Epoxy
AlInGaP
Au
Clear Epoxy
Cu
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
Rev.O date: 08-AUG-11
AUK-LDM-001(A)
AUK CORP.
KB464AO60 (KLB-521 O)
5. Absolute Maximums
ITEM
Forward Current
Peak Forward Current
*１
Power Dissipation
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature*２
*1.Duty Ratio £ 1/10, @1
㎑
*2. Soldering time £ 5 Sec
Symbol
I
F
I
FP
P
D
V
R
Topr
Tstg
Tsd
MIN
-
-
-
-
-30
-40
MAX
30
100
75
5
85
100
260
Unit
mA
mA
mW
V
℃
℃
℃
Conditions
5 Sec
6. Electro-Optical Characteristics (T
A
= 25℃)
ITEM
Forward Voltage
Intensity
Doninant Wavelength
Reverse Current
FWHM
Half angle
Symbol
V
F
I
V
W
D
I
R
△λ
△Θ
MIN
1.8
1
600
-
-
TYP
2.1
2
-
-
15
±40
MAX
2.5
-
616
50
-
Unit
V
cd
nm
µA
nm
deg
Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
Rev.O date: 08-AUG-11
AUK-LDM-001(A)
AUK CORP.
KB464AO60 (KLB-521 O)

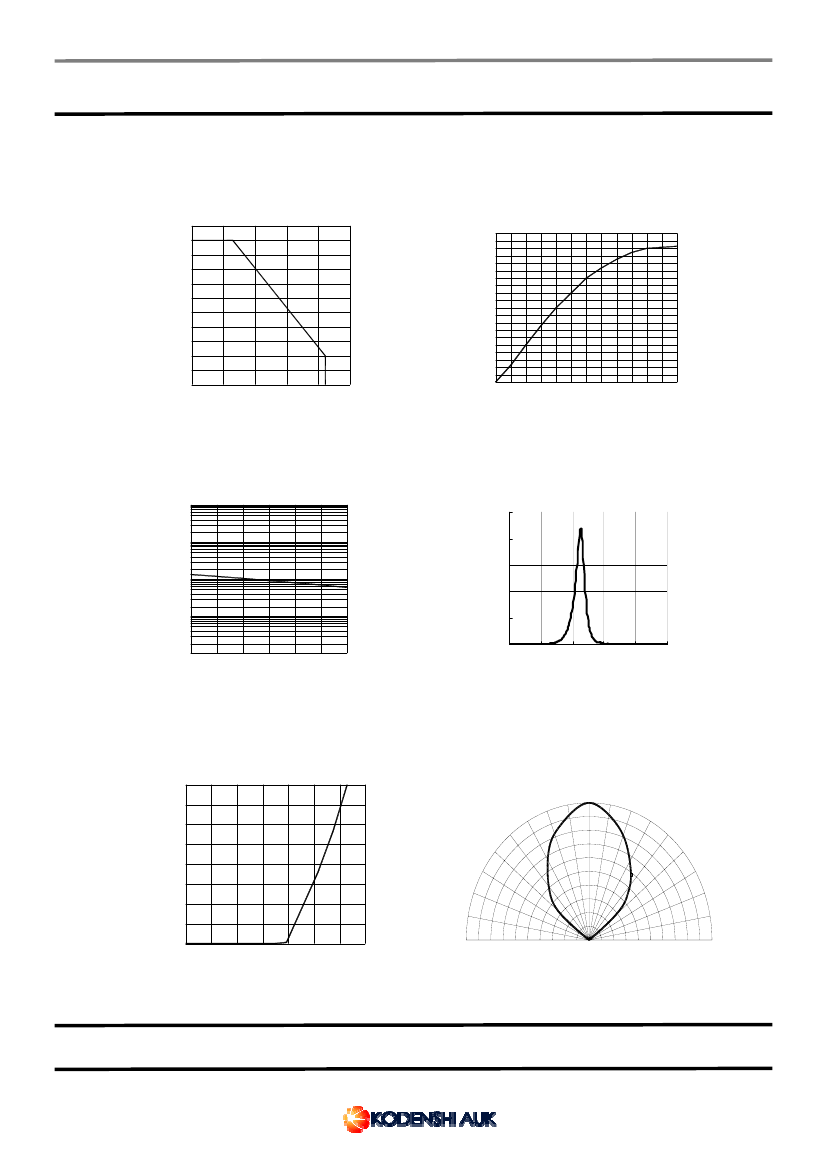

7. Characteristic Graphs
Forward current vs.
Ambient temperature
20
Forward current I
F
[mA]
Relative intensity
3.0
Radiant Intensity vs.
Forward current
2.0
10
1.0
0.5
0
0
0
20
40
60
80
100
Ambient temperature T
a
[℃]
0
5
10 15 20 30 40 50 60 70 80 90 100
Forward current I
F
[mA]
Relative radiant intensity vs.
Ambient temperature
Relative radiant intensity P
O
0.5
Intensity [arb.]
10
Relative intensity vs.
Wavelength
0.4
0.3
0.2
0.1
0
500
1
0.1
-20
0
20
40
60
80
100 (℃)
550
600
650
700
750
Ambient temperature T
a
[℃]
W ave Length[nm]
Forward current vs.
Forward voltage
80
70
60
50
40
30
20
10
0
0
Radiant Pattern
Angle(deg)
-10
-20
-30
-40
-50
-60
0
10
20
30
40
50
60
Forward current I
F
[mA]
-70
70
-80
80
0.5 1.0 1.5 2.0 2.5 3.0 3.5
Forward voltage V
F
[V]
50
50
0
Relative intensity[%]
The contents of this data sheet are subject to change without advance notice for the purpose of improvement.
When using this product, would you please refer to the latest specifications.
Rev.O date: 08-AUG-11
AUK-LDM-001(A)
