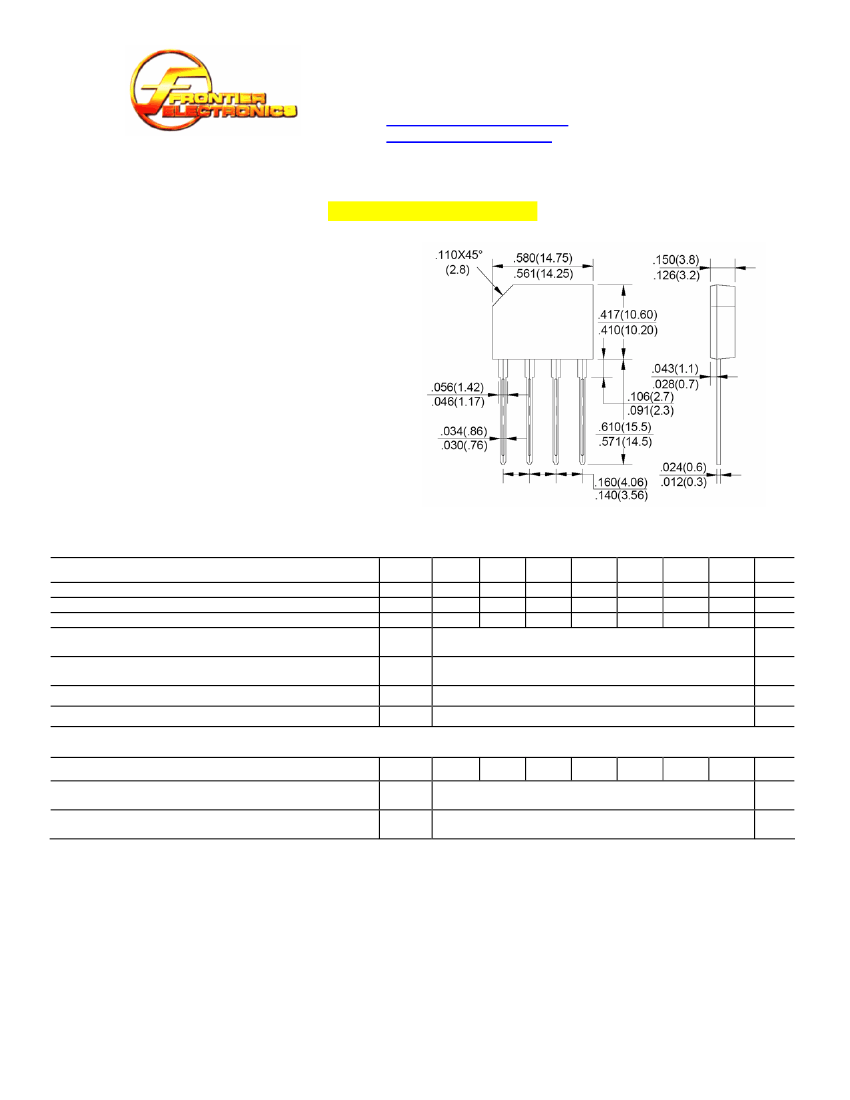

2A GLASS PASSIVATED BRIDGE RECTIFIER
KBP2005G THRU KBP210G
FEATURES
GLASS PASSIVATED DIE CONSTRUCTION
LOW FORWARD VOLTAGE DROP
HIGH CURRENT CAPABILITY
HIGH SURGE CURRENT CAPABILITY
HIGH RELIABILITY
IDEAL FOR PRINTED CIRCUIT BOARDS
MECHANICAL DATA
CASE: MOLDED PLASTIC, DIMENSIONS IN INCHES
AND (MILLIMETERS)
TERMINALS: PLATED LEADS SOLDERABLE PER
MIL-STD-202 METHOD 208
POLARITY: AS MARKED ON BODY
MOUNTING POSITION: ANY
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED
SINGLE PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%
RATINGS
MAXIMUM RECURRENT PEAK REVERSE VOLTAGE
MAXIMUM RMS VOLTAGE
MAXIMUM DC BLOCKING VOLTAGE
MAXIMUM AVERAGE FORWARD RECTIFIED OUTPUT
CURRENT AT 40°C TA ( NOTE 1 )
PEAK FORWARD SURGE CURRENT, 8.3ms SINGLE HALF
SINE-WAVE SUPERIMPOSED ON RATED LOAD
STORAGE TEMPERATURE RANGE
OPERATING TEMPERATURE RANGE
SYMBOL
KBP2005G KBP201G KBP202G KBP204G KBP206G KBP208G KBP210G UNITS
V
RRM
V
RMS
V
DC
I
O
I
FSM
T
STG
T
OP
50
35
50
100
70
100
200
140
200
400
280
400
2.0
40
- 55 TO + 150
- 55 TO + 150
600
420
600
800
560
800
1000
700
1000
V
V
V
A
A
℃
℃
ELECTRICAL CHARACTERISTICS (A
T
T
A
=25°C UNLESS OTHERWISE NOTED)
CHARACTERISTICS
SYMBOL
KBP2005G KBP201G KBP202G KBP204G KBP206G KBP208G KBP210G UNITS
MAXIMUM FORWARD VOLTAGE DROP PER BRIDGE ELEMENT
V
F
1.1
AT 2.0A PEAK
MAXIMUM REVERSE CURRENT AT RATED DC BLOCKING
I
R
10
VOLTAGE PER ELEMENT
NOTE: 1. LEADS MAINTAINED AT AMBIENT TEMPERATURE AT A DISTANCE OF 9.5 mm FORM THE CASE.
V
μA
KBP2005G THRU KBP210G
Page: 1

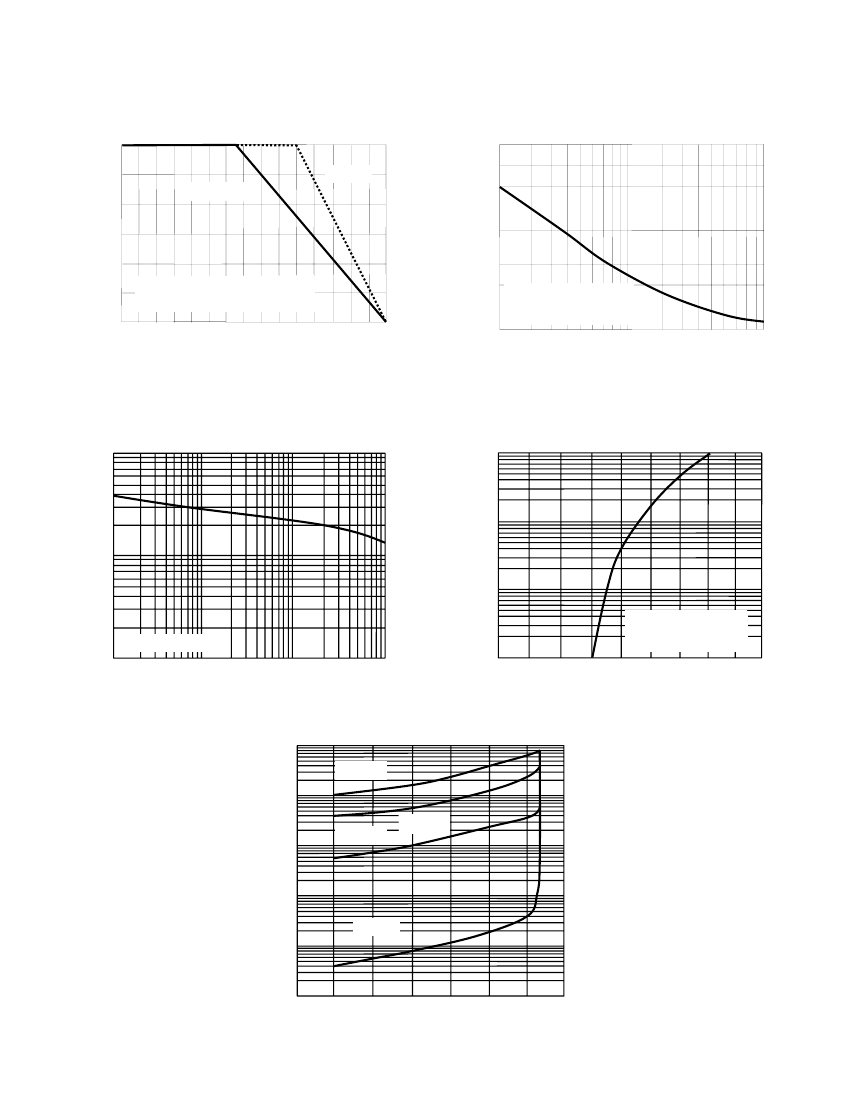

RATINGS AND CHARACTERISTIC CURVES KBP2005G THRU KBP210G
FIG. 1 - FORWARD CURRENT DERATING CURVE FOR
INSTANTANEOUS FORWARD CURRENT
FIG. 2 – MAXIMUM NON-REPETITIVE SURGE CURRENT
AVERAGE FORWARD OUTPUT CURRENT
AMPERES
2.0
CASE
AMBIENT
1.0
40
SINGLE PHASE HALF WAVE 60Hz
RESISTIVE OR INDUCTIVE LOAD
0
0
20
40
60
80
100
120
140
PULSE WIDTH 8.3ms
SINGLE HALF-SINE-WAVE
（JEDEC
METHOD）
0
1
2
5
10
20
50
100
TEMPERATURE (℃)
NUMBER OF CYCLES AT 60H
Z
100
INSTANTANEOUS FORWARD CURRENT,（A）
FIG. 3 - TYPICAL FORWARD CHARACTERISTICS
FIG. 4 - TYPICAL FORWARD CHARACTERISTICS
10
CAPACITANCE,（pF）
1.0
10
0.1
T
J
=25℃
PULSE WIDTH：300us
0
0
0.2
0.4
0.6
0.8
1.0
1.2 1.4
1.6 1.8
1.0
0.1
T
J
=25℃, f = 1MHz
1.0
4.0
10
100
FIG. 5 - TYPICAL REVERSE
CHARACTERISTICS
1000
INSTANTANEOUS REVERSE CURRENT ,（mA）
T
J
=150℃
100
T
J
=125℃
10
T
J
=100℃
1.0
T
J
=25℃
0.1
0.01
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE,（%）
KBP2005G THRU KBP210G
Page: 2
