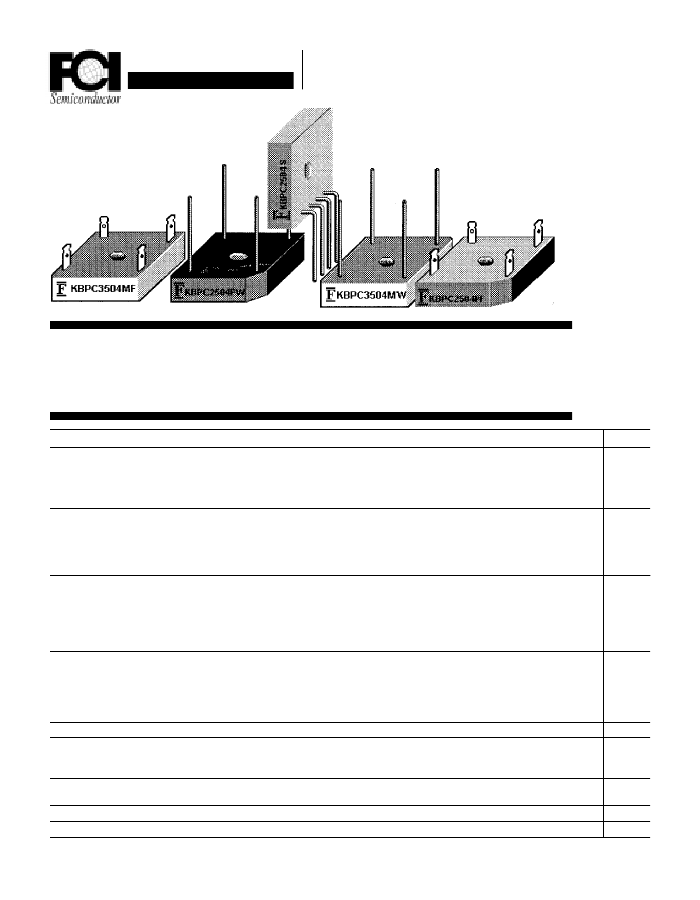

Data Sheet
10 to 40 Amp
SINGLE PHASE SILICON BRIDGE
Description
Features
n
BUILT-IN INTEGRAL HEAT SINK
n
UL RECOGNITION AVAILABLE
n
UP TO 400 AMP SURGE OVERLOAD RATING
n
OPTION OF WIRE LEADS OR
FASTON TERMINALS
KBPC10 . . . 40XX Series
-00
50
35
50
KBPC10
KBPC15
KBPC25
KBPC35
KBPC40
-01
100
70
100
-02
200
140
200
-04
400
280
400
10
15
25
35
40
-06
600
420
600
-08
800
560
800
-10
1000
700
1000
-12
1200
840
1200
Electrical Characteristics @ 25
o
C.
Maximum Ratings
Peak Repetitive Reverse Voltage...V
RRM
RMS Reverse Voltage...V
R(rms)
DC Blocking Voltage...V
DC
Average Forward Rectified Current...I
F(av)
Units
Volts
Volts
Volts
Amps
Amps
Amps
Amps
Amps
KBPC10
KBPC15
KBPC25
KBPC35
KBPC40
Forward Voltage...V
F
KBPC10, I
F
=
5A
KBPC15, I
F
= 7.5A
KBPC25, I
F
= 12.5A
KBPC35, I
F
= 17.5A
KBPC40, I
F
= 20.0A
Isolation Voltage Case to Leads...V
ISO
DC Reverse Current...I
R
@ Rated DC Blocking Voltage per Leg
T
A
= 25°C
T
A
= 125°C
Typical Thermal Resistance...R
θJC
Junction to Case per Leg
Typical Junction Capacitance...C
J
Operating & Storage Temperature Range...T
J
, T
STRG
Non-Repetitive Peak Forward Surge
Current...I
FSM
.............................................
.............................................
.............................................
.............................................
.............................................
.............................................
.............................................
.............................................
.............................................
.............................................
.............................................
.............................................
.............................................
.............................................
.............................................
.............................................
...............................................
...............................................
...............................................
...............................................
...............................................
200 ............................................... Amps
300 ............................................... Amps
300 ............................................... Amps
400 ............................................... Amps
400 ............................................... Amps
1.1 ............................................... Volts
1.1 ............................................... Volts
1.1 ............................................... Volts
1.1 ............................................... Volts
1.1 ............................................... Volts
2500 ............................................... Volts AC
µAmps
µAmps
°C
/ W
pF
°C
............................................. 5.0 ...............................................
............................................. 500 ...............................................
............................................. 1.9 ...............................................
............................................. 300 ...............................................
......................................... -55 to150 ..........................................
Page 3-28

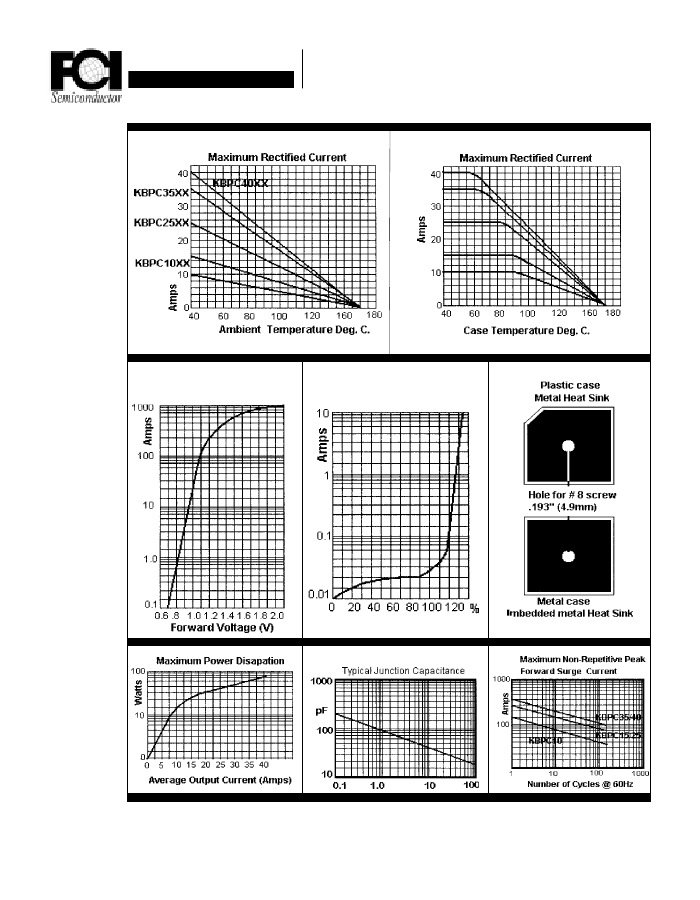

KBPC10XX . . . 40XX Series
Data Sheet
10 to 40 Amp
SINGLE PHASE SILICON BRIDGE
KBPC10XX . . . 40XX Series

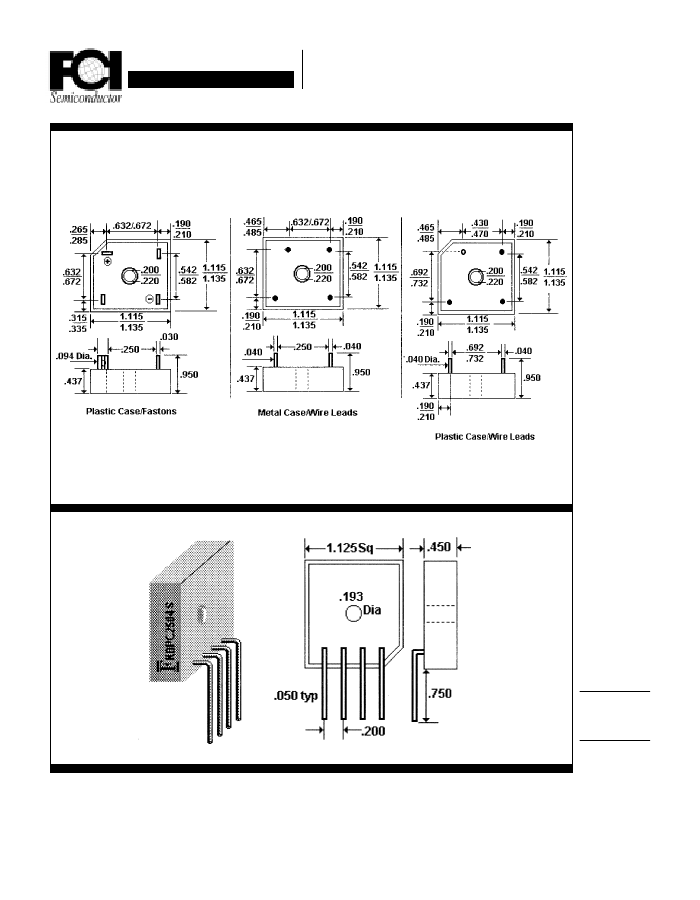

Case - Metal or Molded Plastic
AC In
Terminals - Plated .25" Faston or Plated Copper Wire
Leads .040" Diameter
Weight - 0.706 Ounces, 20 Grams
DC Out
Mounting Position - Any with Bolt Down with Silicone
Thermal Compound Between Bridge and
Mounting Surface for Optimum Heat
Transfer
Mounting Torque - 20 Inch Pound Max
FCIS KBPC Series of Bridges Can Be Ordered with Options on Terminals and Case Materials.
How To Specify Case Material and Terminal Options:
n
For Metal Case, Order Suffix
(1) M
n
For Plastic Case, Order Suffix
(1) P
n
For Faston Terminals, Order Suffix
(2) F
n
For Wire Lead Terminals, Order Suffix
(2) W
n
For a UL Recognized Device, Order Suffix
(3) U
Ordering Information
KBPC Series Examples
To Order a 25 Amp, 400 Volt Bridge with Faston Leads and a Plastic Case:
Specify -
KBPC2504PF
. . . Where
P = Plastic
and
F = Faston Terminals
To Order a 35 Amp, 800 Volt Bridge with Wire Leads and a Metal Case:
Specify -
KBPC3508MW
. . . Where
M = Metal
and
W = Wire Leads
(Terminals)
To Order a 15 Amp, 200 Volt, UL Recognized Bridge with Wire Leads and a Plastic Case:
Specify -
KBPC1502PWU
. . . Where
P = Plastic
and
W = Wire Leads
(Terminals) and
U = UL Recognized
NOTE:
Fast Recovery Bridges (Diodes) Are Available; Please Contact FCI Components.
KBPC - S Series Examples
To Order Bridges with the In-Line Pin Configuration, Select the Current and Voltage Desired and Add
S
as the Suffix, as
shown in the following example.
To Order a 35 Amp, 800 Volt Bridge with In-Line Wire Leads:
Specify -
KBPC3508S
. . . Where
S = In-Line Wire Lead Terminals
Page 3-31
