75827-2122

Description
Board Connector, 40 Contact(s), 4 Row(s), Straight, 0.073 inch Pitch, Solder Terminal, Locking, Gray Insulator
CategoryThe connector    The connector

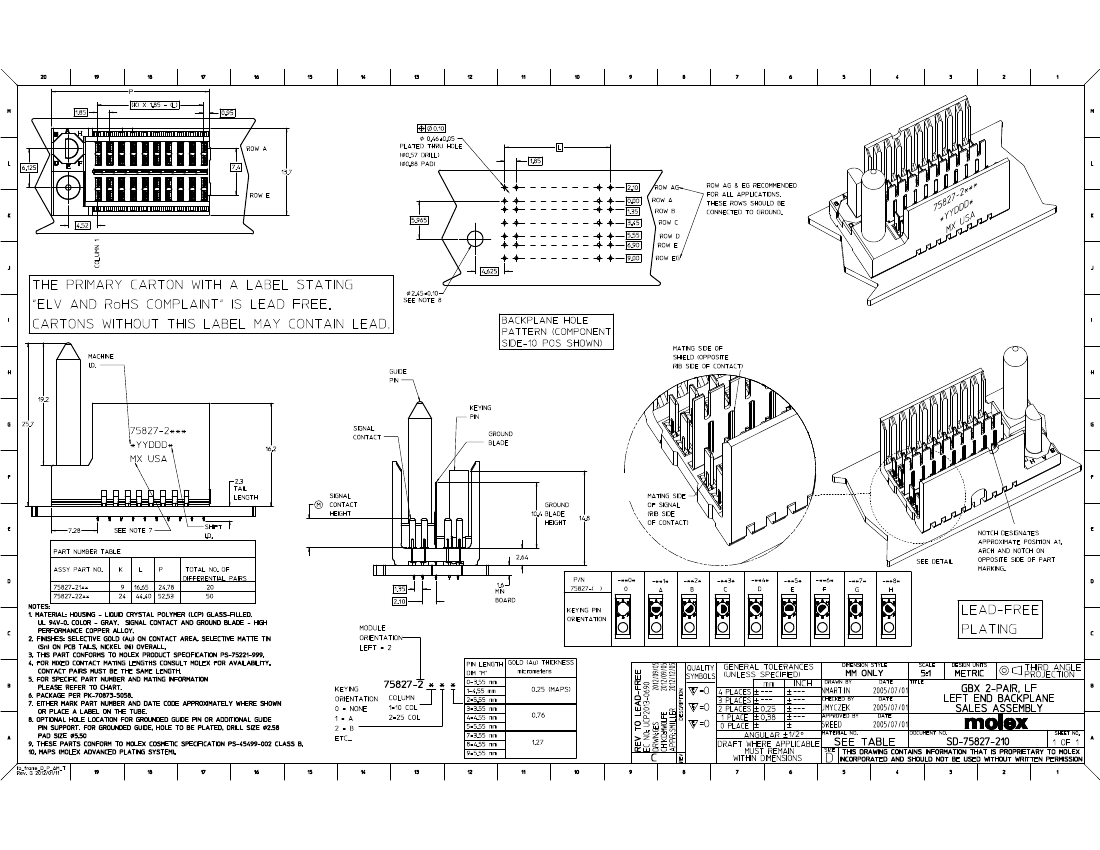

File Size193KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

75827-2122 Overview

Board Connector, 40 Contact(s), 4 Row(s), Straight, 0.073 inch Pitch, Solder Terminal, Locking, Gray Insulator

75827-2122 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.539 inch
subject depth0.583 inch
body length0.976 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Insulator colorGRAY
insulator materialGLASS FILLED LIQUID CRYSTAL POLYMER
Manufacturer's serial number75827-2
Plug contact pitch0.073 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded4
PCB contact patternRECTANGULAR
GuidelineUL
reliabilityCOMMERCIAL
Terminal pitch1.8542 mm
Termination typeSOLDER
Total number of contacts40
