87397-1406

Description
Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator
CategoryThe connector    The connector
File Size69KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home

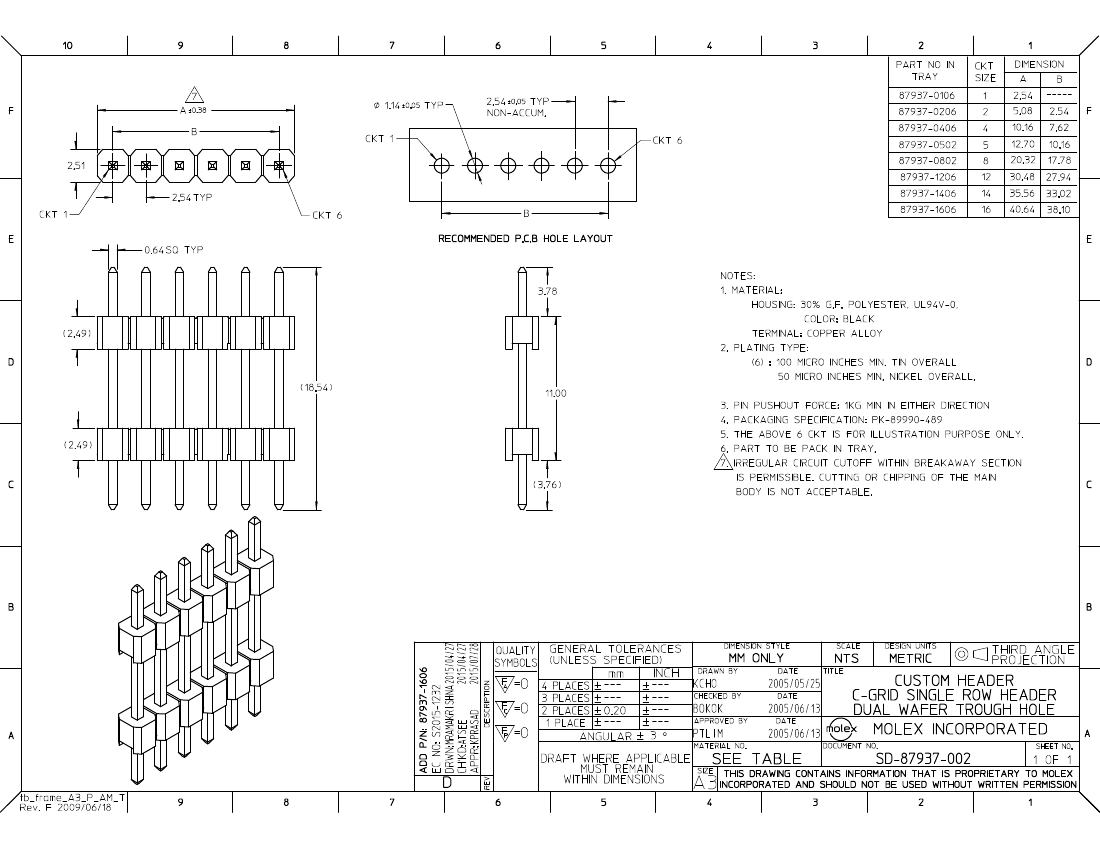

Download Datasheet Parametric View All

87397-1406 Overview

Board Connector, 14 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator

87397-1406 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.099 inch
subject depth0.433 inch
body length1.5 inch
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Insulator colorBLACK
insulator materialGLASS FILLED POLYESTER
Manufacturer's serial number87397
Plug contact pitch0.1 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
PCB contact patternRECTANGULAR
Plating thickness100u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.148 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts14
