KWM-30572CG

Description
5 x 7 Dot Matrix (3.0mm Dot) LED Display
File Size55KB,1 Pages
ManufacturerLucky Light Electronic
Websitehttp://www.lucky-light.com
Download Datasheet Compare View All

KWM-30572CG Overview

5 x 7 Dot Matrix (3.0mm Dot) LED Display

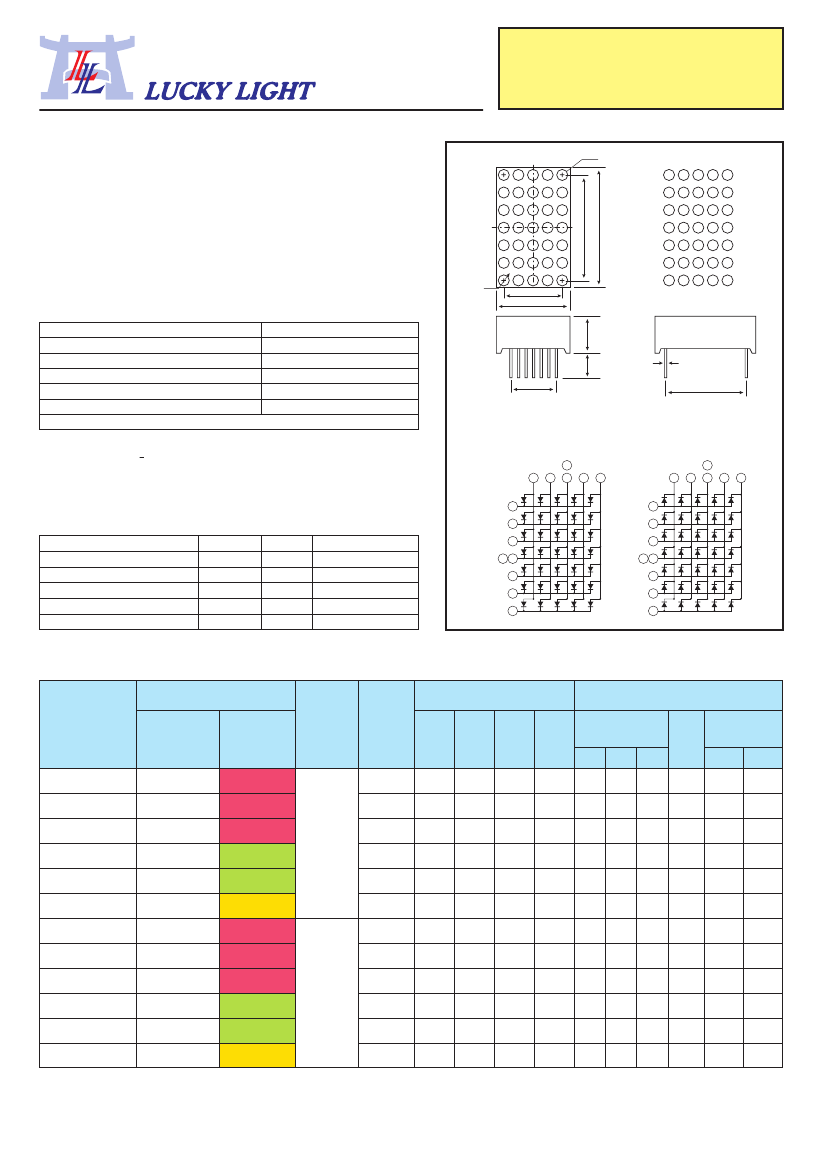

KWM-30572 SERIES
5 x 7 Dot Matrix (3.0mm Dot)
LED Display
DESCRIPTION:
The KWM-30572 series is 31.80mm (1.25") height 5 x 7 multi-color dot matrix
display.
This multi-color series is suitable for use in single/multi-line message display,
large area graphics display and electronic games.
All devices are available as either common row anode or common row cathode.
PACKAGE DIMENSIONS
φ3.0
COL 1
2
3
4
5
1
2
4.57*6=27.42
3
31.80
4
5
6
7
ROW
+
PIN1
4.57*4=18.28
22.75
ABSOLUTE MAXIMUM RATINGS: (Ta=25 C)
Parameter
Max
Reverse Voltage per segment
5V
Reverse Current per segment (Vr = 5V)
100µA
Derating Linear from 25
o
C per segment
0.4mA/
o
C
Operating Temperature Range
-40
o
C To 85
o
C
Storage Temperature Range
-40
o
C To 100
o
C
Soldering Temperature 1.6mm(1/16") from body for 5 sec. at 260
o
C
NOTES : 1. All dimensions are in millimeters (inches).
2. Tolerance is +0.25mm(0.010) unless otherwise specified.
3. Specifications are subject to change without notice.
4. NP: No Pin.
5. NC: No Connect.
o
8.0
6.30
2.54*6=15.24
φ0.5
22.86
INTERNAL CIRCUIT DIAGRAM
ROW CATHODE
COL 1
2
PIN
NO.
3
11
4
4
10
5
6
ROW ANODE
COL 1
PIN
NO.
2
3
3
11
4
4
10
5
6
13
3
13
ROW
9
1
2
3
PIN
NO.
ROW
9
1
2
3
PIN
NO.
TESTING CONDITION FOR EACH PARAMETER :
Parameter
Forward Voltage
Peak Emission Wave Length
Spectral Line Half-Width
Reverse Current
Average Luminous Intensity
Symbol
Vf
λρ
∆λ
Ir
Iv
Unit
V
nm
nm
µA
µ
cd
Test Condition
If=20mA
If=20mA
If=20mA
Vr=5V
If=10mA
14
8
14
8
4
12 5
5
6
7
1
7
2
4
12 5
5
6
7
1
7
2
PART NO. SELECTION AND APPLICATION INFORMATION (RATINGS AT 25 C AMBIENT)
Chip
Part No.
Raw
Material
GaP
GaAsP/GaP
GaAlAs
GaP
GaP
GaAsP/GaP
GaP
Emitted
Color
Bright Red
Hi-Eff Red
Super Red
Green
Super Green
Yellow
Bright Red
Hi-Eff Red
Super Red
Green
Super Green
Yellow
Common
Cathode
Common
Anode
C.C
or
C.A
Wave
Length
λρ
(nm)
700
635
660
565
570
585
700
635
660
565
570
585
Absolute Maximum Ratings
∆λ
Pd
If
Electro-optical Characteristic
o
If
If
Vf (V)
Iv (µcd)
(Peak)
(Rec)
Per Dot
Per Dot
(nm) (mW) (mA) (mA) Min. Typ. Max. mA Min. Typ.
90
45
20
30
30
30
90
45
20
30
30
30
100
100
100
100
100
100
100
100
100
100
100
100
50
50
50
50
50
50
50
50
50
50
50
50
100
100
100
100
100
100
100
100
100
100
100
100
1.7
1.7
1.5
1.7
1.7
1.7
1.7
1.7
1.5
1.7
1.7
1.7
2.4
1.9
1.9
2.2
2.2
1.9
2.4
1.9
1.9
2.2
2.2
1.9
2.8 10-20 450
2.6 10-20 900
950
1800
KWM-30572A5
KWM-30572A3
KWM-30572AS
KWM-30572A2
KWM-30572AG
KWM-30572A6
KWM-30572C5
2.6 10-20 1600 3000
2.6 10-20 800
2.6 10-20 850
2.6 10-20 800
2.8 10-20 450
2.6 10-20 900
1700
1850
1700
950
1800
KWM-30572C3 GaAsP/GaP
KWM-30572CS
KWM-30572C2
KWM-30572CG
GaAlAs
GaP
GaP
2.6 10-20 1600 3000
2.6 10-20 800
2.6 10-20 850
2.6 10-20 800
1700
1850
1700
KWM-30572C6 GaAsP/GaP
REMARKS : 1. The average luminous intensity is obtained by summing the luminous intensity of each segment and dividing by the total number of segments.
2. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE (International Commission on Illumination) eye-response curve.
3. Clean only by pure water, isopropanol, ethanol, Freon TF (or equivalent).
