ST62Exx-EPB

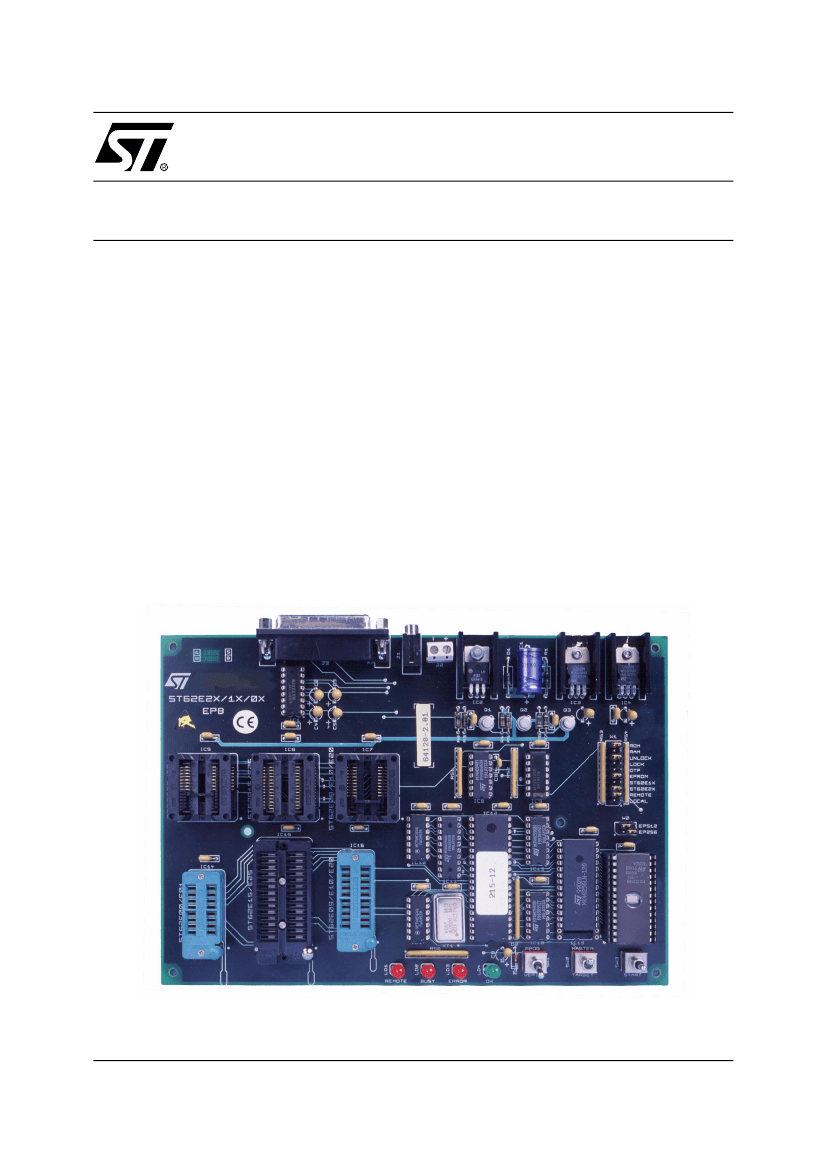

EPROM PROGRAMMING BOARDS FOR ST62 MCU FAMILY
HARDWARE FEATURES
s
Programs the ST62Exx EPROM and OTP
MCUs
s
Standalone and Remote modes
s
All packages supported (except SSOP)
SOFTWARE FEATURES
s
Windows 95, 98, NT software
s
S19 or INTEL hex file formats
DESCRIPTION
Different programming boards are designed for
programming the various EPROM and OTP devic-
es of the ST62 microcontroller family. For a partic-
ular device, all available packages (except SSOP)
are supported by the same programming board.
It can run either in standalone or remote mode
(connected to a PC).
In standalone mode, the microcontrollers can be
programmed by simply pressing a key to start cop-
ying the code from a master EPROM device or a
master microcontroller. Two-color LEDs indicate if
the operation has passed or failed.
In standalone mode an EPROM memory or a
master MCU is plugged into the programming
board. The code from the EPROM or the master
MCU is read and programmed into the ST62
EPROM or OTP device. Both VERIFY and BLANK
CHECK functions are provided.
In remote mode, the programming board is con-
nected to a PC through an RS232 serial channel
or a parallel port. Object code in either S19 or IN-
TEL HEX format is read from disk file to program
the ST62 EPROM or OTP device. The Windows
software also offers VERIFY, BLANK CHECK,
READ MASTER functions. The software allows
various user friendly facilities, such as re-instating
the same programming session, user selectable
programming steps; it also allows serial number-
ing with auto-incrementation.
October 2000
This is advance information from STMicroelectronics. Details are subject to change without notice.
1/3
643
ST62Exx-EPB
ORDERING INFORMATION
Sales Types
Supported Devices
(3)
ST62T00
ST62T01
ST62E01
ST62T03
ST62T08
ST62T09
ST62T10
ST62T15
ST62T18
ST62E18
ST62T20
ST62E20
ST62T25
ST62E25
ST62T28
ST62E28
ST62T30
ST62E30
ST62T32
ST62E32
ST62T40
ST62E40
ST62T42
ST62E42
ST62T46
ST62E46
ST62T52
ST62T53
ST62T55
ST62T60
ST62E60
ST62T62
ST62E62
ST62T63
ST62T65
ST62E65
ST62T80
ST62E80
ST62T85
ST62E85
Supported Packages
ST62E2XC- EPB/xxx
1
DIP16
DIP20
DIP28
SO16
SO20
SO28
ST62E3X-EPB/xxx
1
DIP28
SO28
SDIP42
ST62E4XB-EPB/xxx
1
SDIP56
QFP64
QFP80
ST626XC-EPB/xx
2
DIP16
SO16
DIP20
SO20
DIP28
SO28
ST62E8X-EPB/xxx
1
QFP100
QFP80
Notes
:
1. ST62Exx-EPB/110 : 110V Power Supply
ST62Exx-EPB/220 : 220V Power Supply
2. ST62Exx-EPB/US : 110V Power Supply
ST62Exx-EPB/EU : 220V Power Supply
ST62Exx-EPB/UK : 240V Power Supply
3. Each EPB supports all variants of its relating device when relevant (/SW, /HW, B or C)
2/3
644
ST62Exx-EPB
Notes:
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences
of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted
by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject
to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not
authorized for use as critical components in life support devices or systems without the express written approval of STMicroelectronics.
The ST logo is a registered trademark of STMicroelectronics
©2000
STMicroelectronics - All Rights Reserved.
Purchase of I
