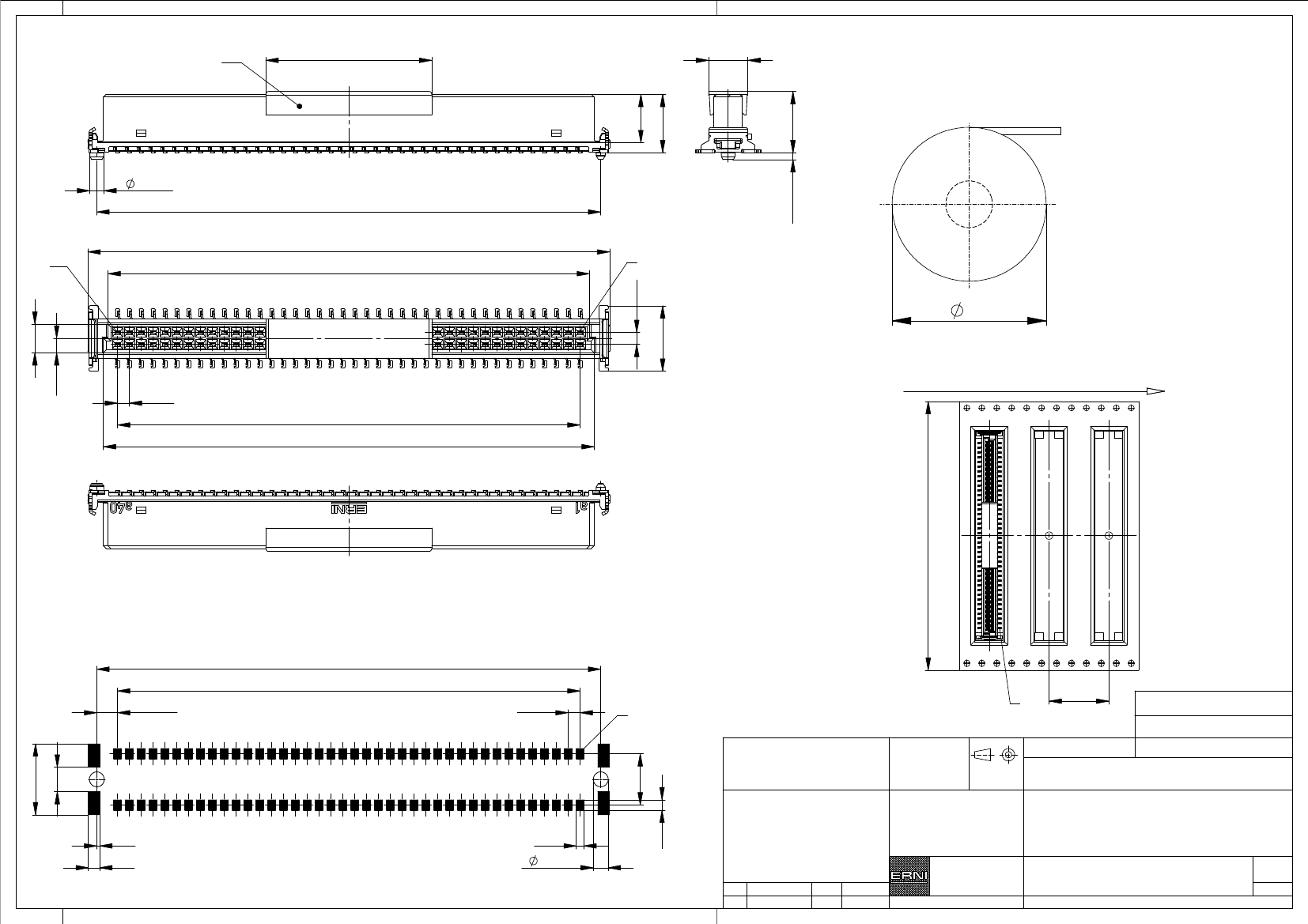

Verpackt im Gurt nach DIN IEC 60286-3
Ansaughaube
17,76
4,2
Tape on Reel Packaging according to DIN IEC 60286-3
Verpackungseinheit: 280 Stück
hood
Packaging unit: 280 pcs
5,2
6,25
6,55
0,75
-0,05
a1
51,55
1,27
1,5
-0,03
53,95
±0,03
55,88
a40
330
3,05
7
1,55
Abspulrichtung -
Reel off Direction
1,27
39 x 1,27 = 49,53
52,55
Anforderungsstufe 1
Performance Level 1
Kontaktbereich vergoldet
Mating Area gold plating
Anschlussbereich verzinnt 4-6 µm
Terminal Area 4-6 µm tin plating
Koplanarität der Anschlüsse
≤
0,1 mm
Leiterplatten-Layout Vorschlag für SMT
Coplanarity Area of Termination
≤
0,1 mm
PCB-Layout Proposal for SMT
53,95
±0,03
39 x 1,27 = 49,53
2,21
±0,03
1,27
a1
a1
3:1
16
72
BA 7-13 - 8mm Bauhöhe
type7-13 - low profile
Copyright by ERNI GmbH
Proprietary notice pursuant to ISO 16016 to be observed.
Information:
Tolerances
All Dimensions
in mm
Scale
7,6
2,6
5,5
0,3
1,2
0,8
1,6
-0,03
All rights reserved.
Only for Information.
To ensure that this is the latest
version of this drawing, please
contact one of the ERNI companies
before using.
d
Index
03.02.2014
Date
Designation
1,1
Subject to modification without
prior notice.
Drawing will not be updated.
Federl. SMC-B 80-SMD-BA7-13
Female SMC-B 80-SMD-type7-13
www.ERNI.com
Class
100403210030
SMCB
K
A3
