RF AMPLIFIER
MODEL
BXMP1048
Features
High Output Power: +26 dBm Typical
High Gain: 22 dB Typical
Environmental Screening Available
Available as:
SMA Replacable Female Connectors
Intermodulation Performance at 25 ºC
Second Order Harmonic Intercept Point ..... +55 dBm (Typ.)
Second Order Two Tone Intercept Point* ..... +49 dBm (Min.)
Third Order Two Tone Intercept Point* ......... +37 dBm (Min.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
VSWR
In
Out
Vdc
mA
TYPICAL
Ta= 25 ºC
450 - 2800 MHz
22
+26
-40
1.7:1
1.7:1
3.0
+15
210
MIN/MAX
Ta = -40 ºC to +85 ºC
450 - 2800 MHz
20 Min./24 Max.
+23 Min.
-35
1.8:1 Max.
1.8:1 Max.
4.0 Max.
+15
250 Max.
Absolute Maximum (No Damage) Ratings
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature ................................. -62ºC to +125 ºC
Case Temperature .................................................. +125 ºC
DC Voltage .......................................................... +18 Volts
Continuous RF Input Power (CW) ......................... +15 dBm
Noise Figure (dB)
Power
Note: Care should always be taken to effectively ground the case of each unit.

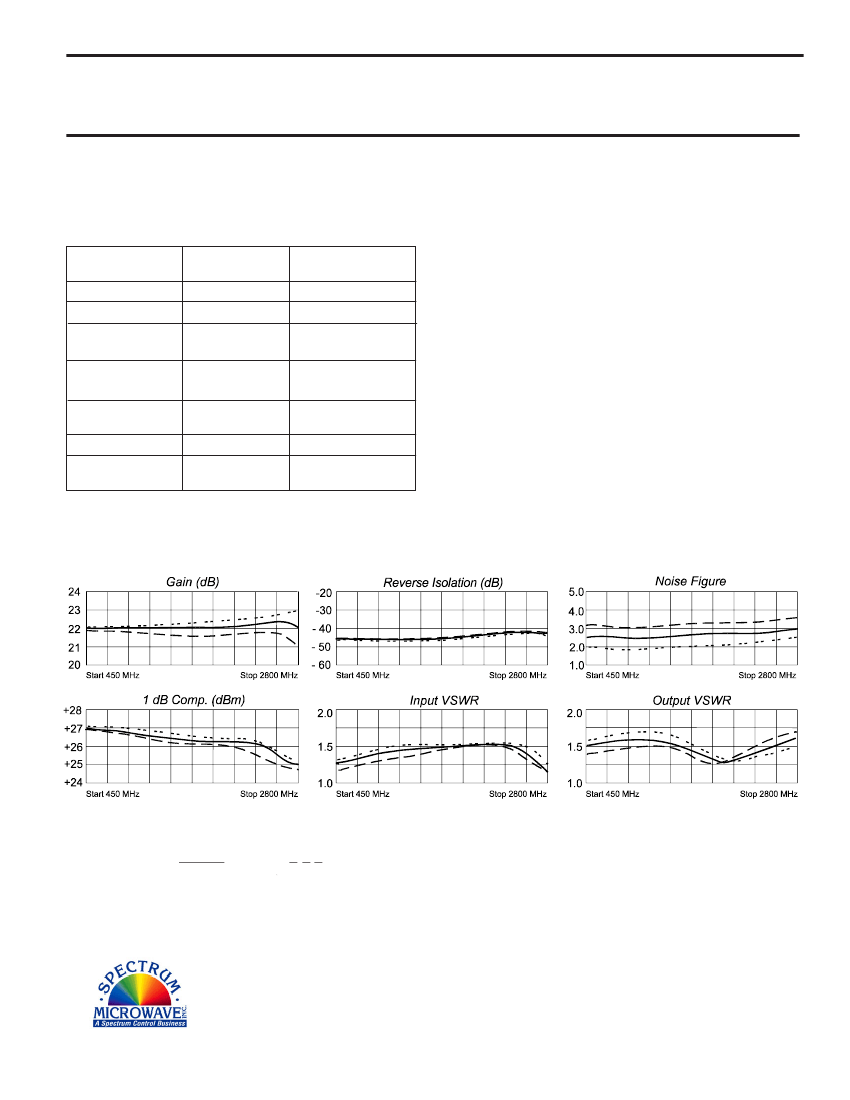

Typical Performance Data
Legend
+25 ºC
+85 ºC - - - - - - -40 ºC
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
Rev.
2/25/11
www.SpectrumMicrowave.com
