72020-902 datasheet, PDF - EEWORLD Datasheet

72020-902: DescriptionBoard Connector, 42 Contact(s), 7 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle; CategoryThe connector The connector; File Size120KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

72020-902 Overview

Board Connector, 42 Contact(s), 7 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compli
Other features	12 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	72020
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	42
UL Flammability Code	94V-0

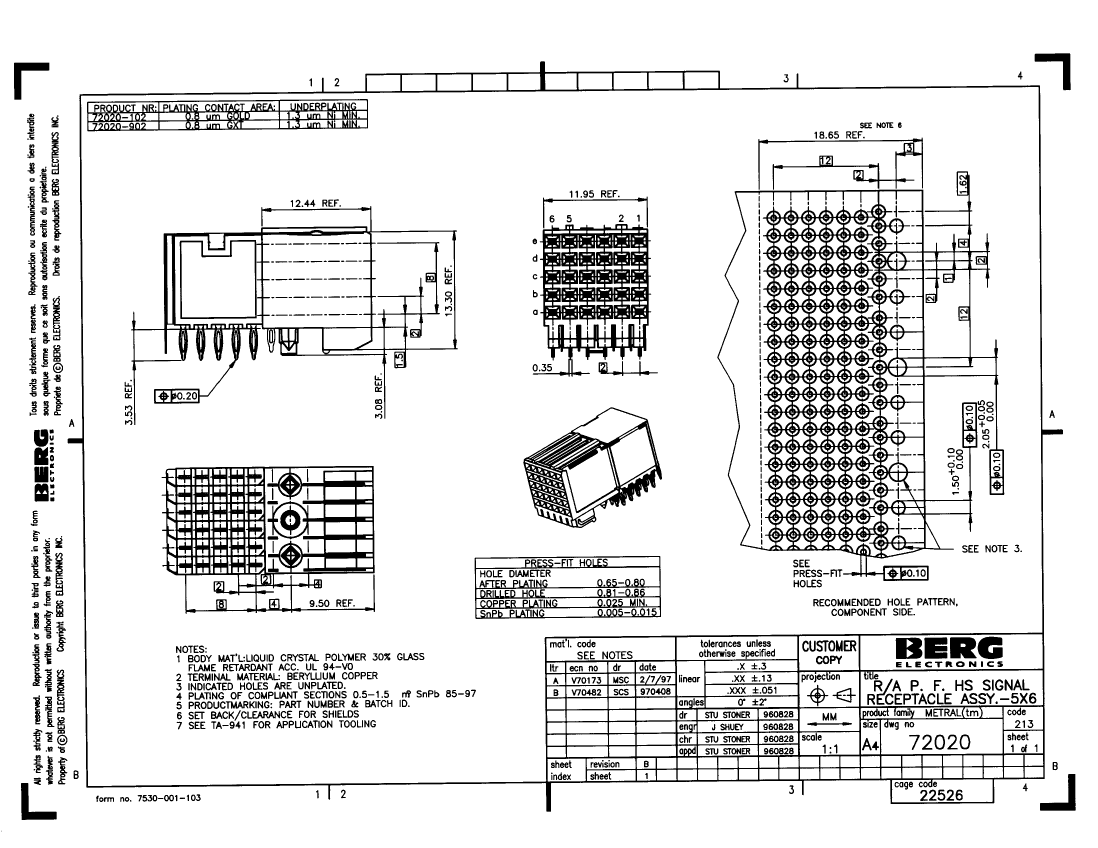

PDM: Rev:B

STATUS:

Released

Printed: Jan 23, 2003

	72020-902	72020-102
Description	Board Connector, 42 Contact(s), 7 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle	Board Connector, 42 Contact(s), 7 Row(s), Female, Right Angle, Press Fit Terminal, Receptacle
Maker	Amphenol	Amphenol
Reach Compliance Code	compli	compli
Other features	12 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	12 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	FEMALE	FEMALE
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
MIL compliance	NO	NO
Manufacturer's serial number	72020	72020
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	42	42
UL Flammability Code	94V-0	94V-0
