2583-5-24-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2583-5-24-2

2583-5-24-2: DescriptionBoard Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size88KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2583-5-24-2 Overview

Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle

2583-5-24-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.228 inch
subject depth	0.273 inch
body length	1.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2583
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

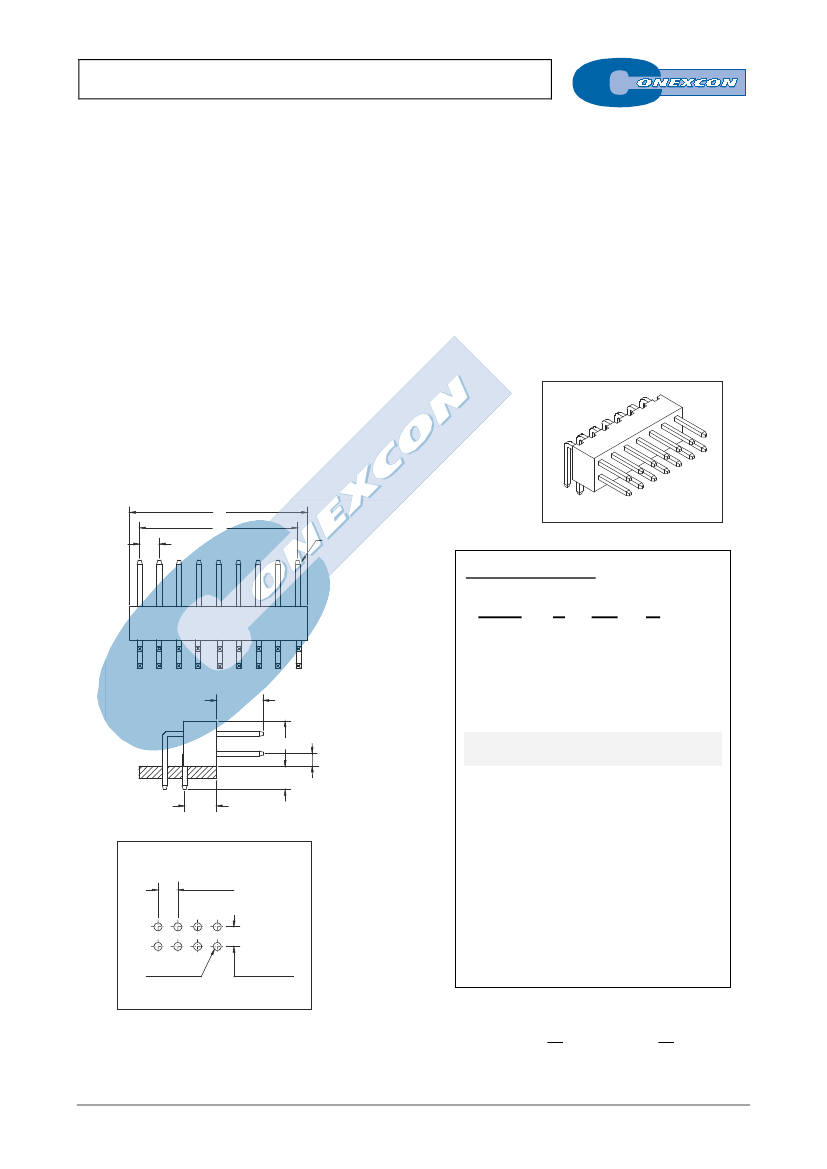

DUAL ROW RIGHT ANGLE PIN HEADER

2583 SERIES.

2.54 mm (0.100”) pitch.

General Features

Electrical Features



Available in 4 through 80 circuits



Mates with sockets 2.54 mm pitch 2201, 5453, 2202, 2444,



2470, 2248, 5452, 5552, 5458, 5408, 5459, 5455, 5454, 5472,

•

5474,2199, 2203, 2472, 5425, 5356, 2576, 5456, 2471 series



0,64 mm. square pin with different plating



Different pin length available. Consult Sales Office

Materials



Voltage rating: < 250V

Current rating: < 3 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 600 V AC/minute



Insulation resistance: >1000 MΩ



Capacitance: < 2 pF at 1 KHz

Mechanical Features



Insulator: PBT UL 94 V-0

Contact: brass

Operating temperature: -40ºC to +105ºC

RoHS compliant



Pin retention force to insulator: > 0,50 Kgf



Durability: 50 cycles

Dimensional Information

2.54

0.64 mm.

Ordering Information:

2583-

T-

XX-

1. Connector Series

H (6.0)

2. (T) Contact Plating

5.80

1.63

F (3.0)

4.40



T =

Tin plated



T =

Gold flash over nickel

Recommended Finish

RECOMMENDED HOLE PATTERN

2.54±0.05

.100±.002



T =

15µ” gold over nickel

T =

30µ” gold over nickel

T =

13.

Sel. gold flash over nickel overall

T =

15.

15µ" sel. gold over nickel overall

T =

16.

30µ" sel. gold over nickel overall

3. (XX) Number of circuits



Available in 4 through 80 circuits

5. (C) Pin Dimensions

1.02±0.05

.040±.002

2.54±0.05

.100±.002



C =

Dim.

= 6.00 mm. Dim.

= 3.00 mm.



C =

Dim.

= 8.00 mm. Dim.

= 2.50 mm.

DIMENSIONS

2.54







−







2.54













(XX) = Number of circuits

E-XX
