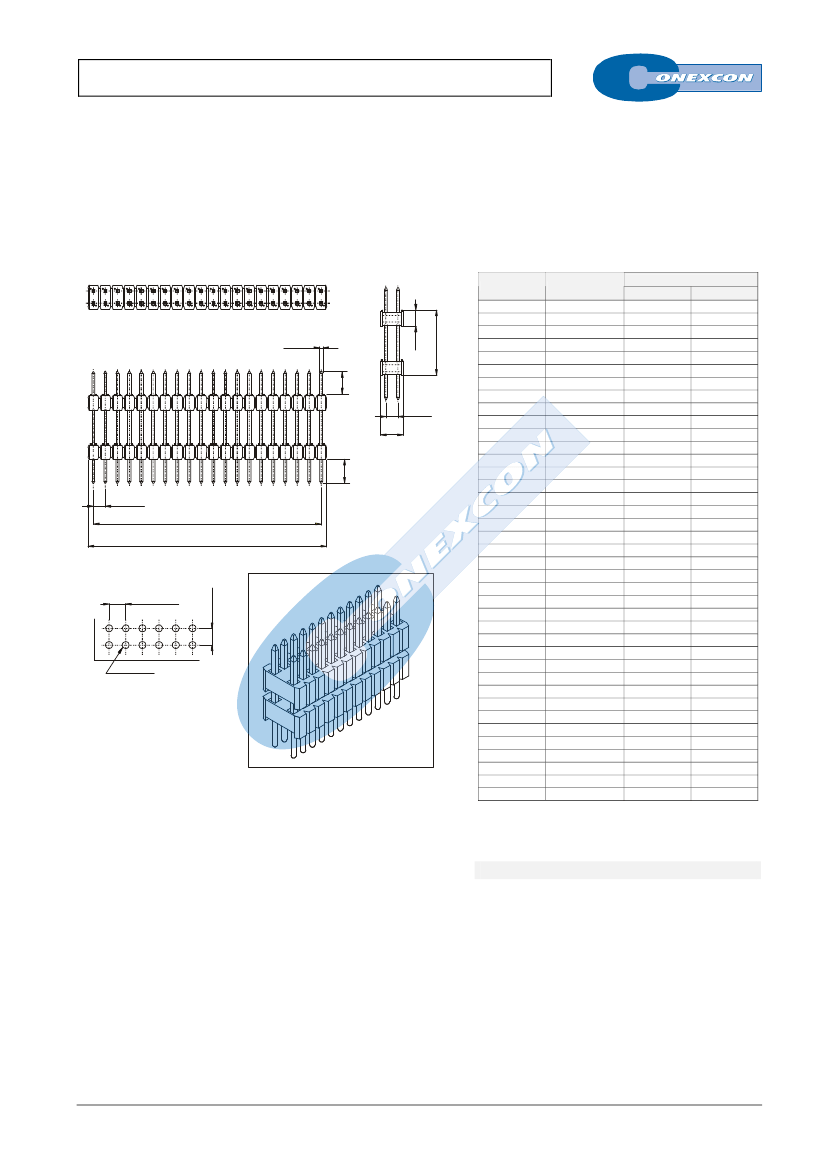

DUAL ROW DOUBLE BODY STRAIGHT HEADER
2666 SERIES.
2.54 x 2.54mm(0.100 X 0.100”). For PCB Solder
Features
Available in 4 through 80 circuits
Mates with 2.54mm(.100”) dual row sockets
Material: Glass filled polyester UL 94V-0. Colour Black
0.64mm(.025”) square pin in copper alloy
Different pin length and plating options are available
Stackable row by row and end to end
Easy breakaway to desired circuit size
For other options consult the Sales Office
Ordering and Dimensional Information:
Circuit Size
04
06
Part Number
2666-T04C
2666-
T06C
2666-
T08C
2666-
T10C
2666-
T12C
2666-
T14C
2666-
T16C
2666-
T18C
2666-
T20C
2666-
T22C
2666-
T24C
2666-
T26C
2666-
T28C
2666-
T30C
2666-
T32C
2666-
T34C
2666-
T36C
2666-
T38C
2666-
T40C
2666-
T42C
2666-
T44C
2666-
T46C
2666-
T48C
2666-
T50C
2666-
T52C
2666-
T54C
2666-
T56C
2666-
T58C
2666-
T60C
2666-
T62C
2666-
T64C
2666-
T66C
2666-
T68C
2666-
T70C
2666-
T72C
2666-
T74C
2666-
T76C
2666-
T78C
2666-
T80C
Dimensions
A
2,54(0,100)
5,08(0,200)
7,62(0,300)
10,16(0,400)
12,70(0,500)
15,24(0,600)
17,78(0,700)
20,32(0,800)
22,86(0,900)
25,40(1,000)
27,94(1,100)
30,48(1,200)
33,02(1,300)
35,56(1,400)
38,10(1,500)
40,64(1,600)
43,18(1,700)
45,72(1,800)
48,26(1,900)
50,80(2,000)
53,34(2,100)
55,88(2,200)
58,42(2,300)
60,96(2,400)
63,50(2,500)
66,04(2,600)
68,58(2,700)
71,12(2,800)
73,66(2,900)
76,20(3,000)
78,74(3,100)
81,28(3,200)
83,82(3,300)
86,36(3,400)
88,90(3,500)
91,44(3,600)
93,98(3,700)
96,52(3,800)
99,06(3,900)
B
5,08(0,200)
7,62(0,300)
10,16(0,400)
12,70(0,500)
15,24(0,600)
17,78(0,700)
20,32(0,800)
22,86(0,900)
25,40(1,000)
27,94(1,100)
30,48(1,200)
33,02(1,300)
35,56(1,400)
38,10(1,500)
40,64(1,600)
43,18(1,700)
45,72(1,800)
48,26(1,900)
50,80(2,000)
53,34(2,100)
55,88(2,200)
58,42(2,300)
60,96(2,400)
63,50(2,500)
66,04(2,600)
68,58(2,700)
71,12(2,800)
73,66(2,900)
76,20(3,000)
78,74(3,100)
81,28(3,200)
83,82(3,300)
86,36(3,400)
88,90(3,500)
91,44(3,600)
93,98(3,700)
96,52(3,800)
99,06(3,900)
101,60(4,000)
Dimensional Information:
0.64
.025
H
2.54
.100
08
D
10
12
14
16
18
5.08
.200
F
2.54
.100
2.54
.100
20
22
24
26
28
30
32
34
A
B
36
38
40
42
44
46
48
50
52
54
56
58
2.54±0.05
2.54±0.05
.100± .002
.100±.002
1.200±.10
.004 ±.047
RECOMMENDED HOLE PATTERN
60
62
64
66
68
70
72
74
76
78
80
T = Contact Plating
T =
2.
Tin plated
T =
3.
Gold flash over 50µ" nickel
T =
4.
10µ” gold over 50µ” nickel
T =
5.
15µ” gold over 50µ” nickel
T =
6.
30µ” gold over 50µ” nickel
C = Pin Dimmension
(consult attached table)
