1110-22-106-01 datasheet, PDF - EEWORLD Datasheet

1110-22-106-01: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size232KB，1 Pages; ManufacturerMethode Electronics Inc.

Download Datasheet Parametric View All

1110-22-106-01 Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Natural Insulator, Receptacle

Parameter Name	Attribute value
Maker	Methode Electronics Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH TOP POLARIZING
body width	0.25 inch
body length	0.59 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
maximum insertion force	2.78 N
Insulator color	NATURAL
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	1100
Plug contact pitch	0.1 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
polarization key	HOUSING SIDE
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.14 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6
Evacuation force-minimum value	.556 N

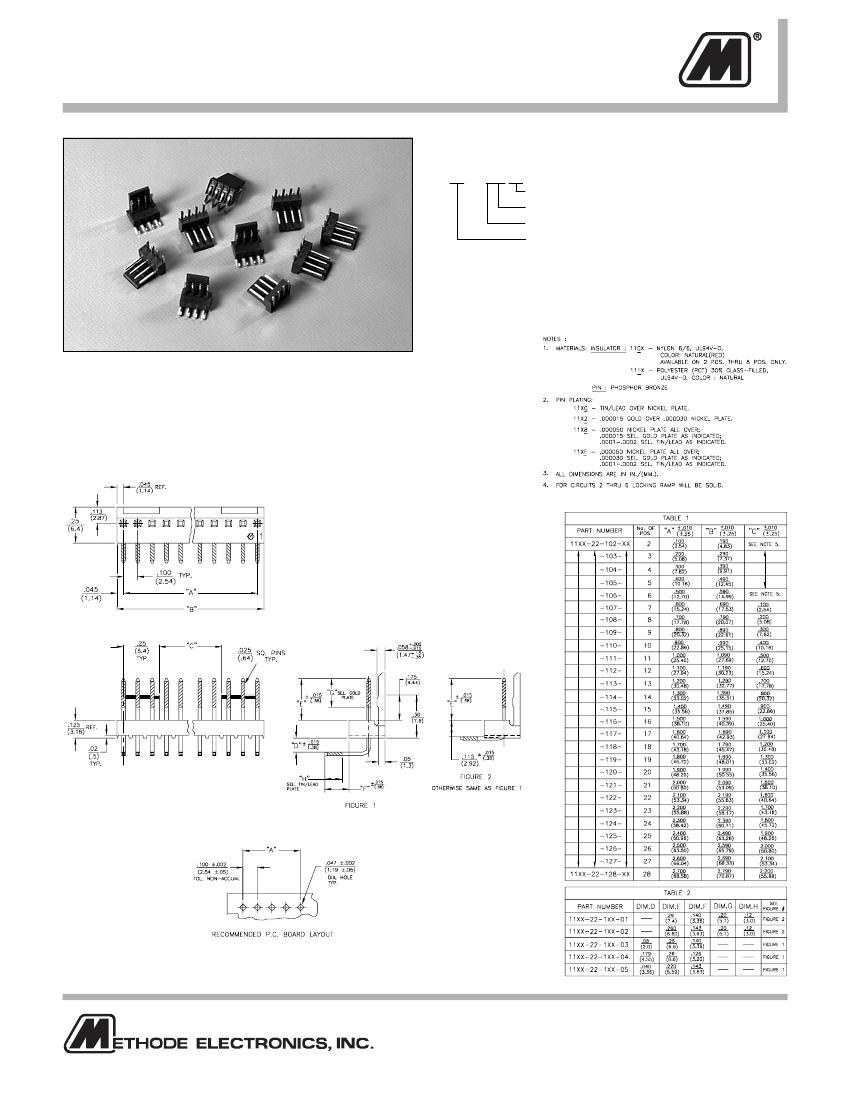

.100” (2.54mm) Single Row, Through Hole,

Right Angle, Top Polarizing Locking Headers

(Tall Back)

1100 SERIES “TERMACON”

PART NUMBER LEGEND

11XX-22-1XX-XX

PIN LENGTH

(SEE TABLE 2)

NUMBER OF POSITIONS PER ROW

(SEE TABLE 1)

PIN PLATING

(SEE NOTE 2)

INSULATOR MATERIAL

(SEE NOTE 1)

MATING CONNECTORS: 1300 SERIES CRIMP OR IDC

STYLE CONNECTORS

Connector Products

1700 Hicks Road • Rolling Meadows, IL 60008 USA

Telephone: 847.392.3500 • Fax: 847.392.9404

email: mcpsales@methode.com • Web Page: www.methode.com
