2122-36SF1BW datasheet, PDF - EEWORLD Datasheet

2122-36SF1BW: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerWieson Technologies Co., Ltd.

Download Datasheet Parametric View All

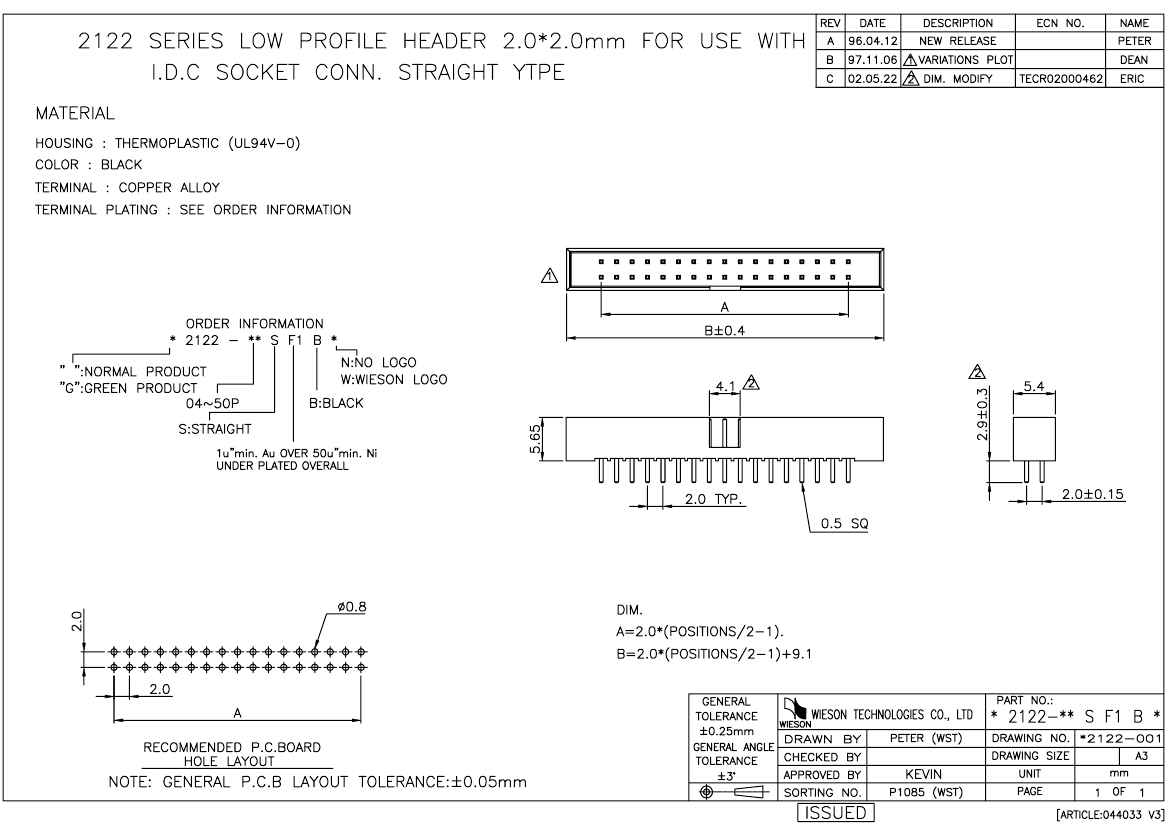

2122-36SF1BW Overview

Board Connector, 36 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

Parameter Name	Attribute value
Maker	Wieson Technologies Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.213 inch
subject depth	0.222 inch
body length	1.697 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	2122
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	1u inch
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.114 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	36
