BF050-06-C-A-0400-0300-N-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> BF050-06-C-A-0400-0300-N-G

BF050-06-C-A-0400-0300-N-G: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size89KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BF050-06-C-A-0400-0300-N-G Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle,

BF050-06-C-A-0400-0300-N-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.157 inch
subject depth	0.079 inch
body length	0.236 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	BF050
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

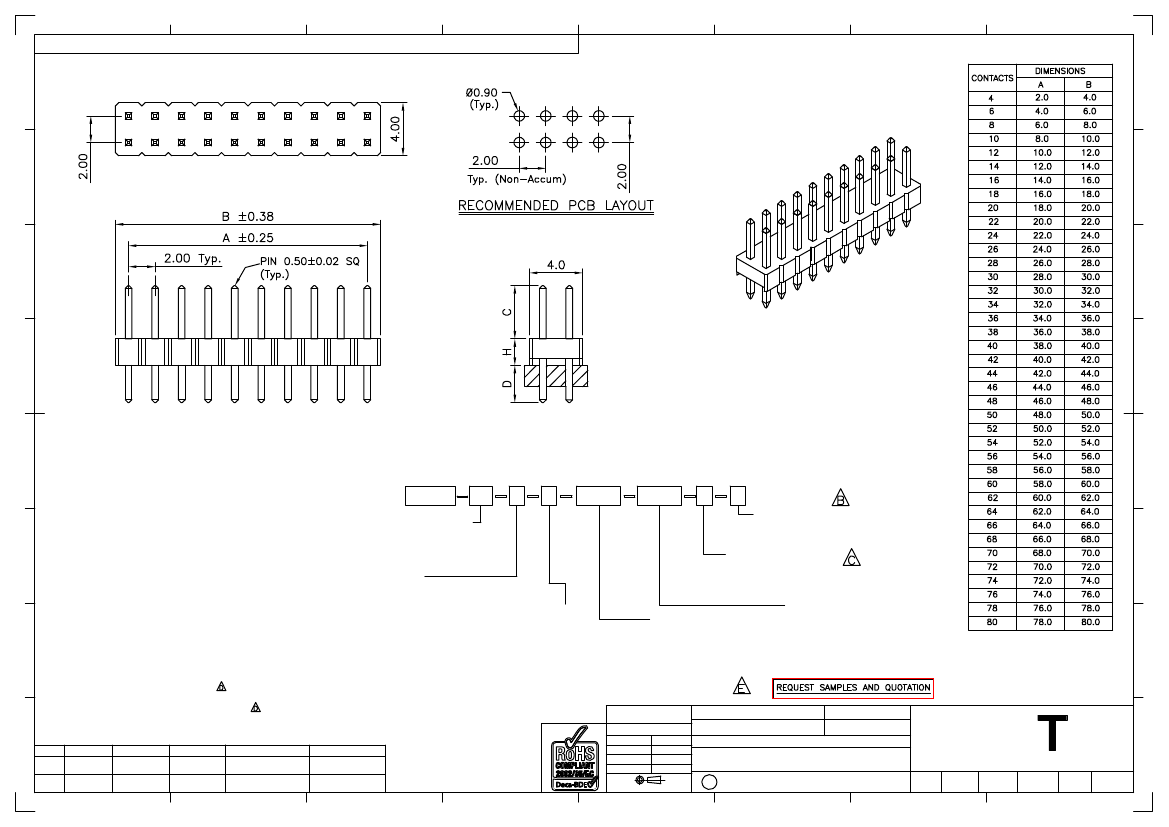

Global Connector Technology Ltd. - BF050: 2.0mm PITCH PIN HEADER, DUAL ROW, THROUGH HOLE, VERTICAL

FEATURES

特点

EASILY BREAKABLE NOTCHES

易折断驳口

CUSTOM PIN LENGTH,

STANDOFFS FACILITATE POST SOLDER CLEANING.

支脚设计易于清洁定½焊接点

Ordering Grid

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 2 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MEGOHMS MIN.

No. of Contacts

CONTACT RESISTANCE

接触电阻值

: 20 mOHMS MAX.

04 to 80

DIELECTRIC WITHSTANDING

耐电压

: AC 500 V

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

Contact Plating

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

A = Gold Flash All Over

OR POLYESTER

聚酯

, PBT, UL94-V0

B = Selective Gold Flash Contact Area/

SOLDERING PROCESS

可焊性

Tin On Tail

NYLON 6T (STANDARD

标准物料

) -

C = Tin All Over

IR REFLOW

回流焊

: 260°C for 10 sec.

G = 10µ" Gold Contact Area/Tin On Tail

WAVE

波峰焊

:230°C for 5-10 sec.

I = 30µ" Gold Contact Area/Tin On Tail

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

PBT (OPTION

可选物料

) - MANUAL SOLDER

人工焊接

: 330°C for 3-5 sec.

Standard = Gold Flash All Over

(NOT SUITABLE FOR HI-TEMP PROCESS

不适合高温处理

)

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

:250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BF065

BF075

BF080

BF095

BF100

BF105

BF115

BF120

BF050

XXXX

Packing Options

G = Plastic Box (Standard)

D = Tube

E = Tube with Cap

Insulator Material

N = Nylon 6T (Standard)

L = LCP

P = PBT

Insulator

Height 'H'

A = 1.50mm

B = 2.00mm

Standard = 2.00mm

Dimension C (1/100mm)

(Post Height)

Standard - 4.00mm = 0400

Standard - 6.00mm = 0600

Or specify Dimension C

e.g. 2.50mm = 0250

TOL +/- 0.2mm

Part Number:-

Dimension D (1/100mm)

(Tail Length)

Standard - 3.00mm = 0300

Or specify Dimension D

e.g. 2.50mm = 0250

TOL +/- 0.2mm

Tolerances

(Except as noted)

Date:-

Dimensions in mm

X.°±5°

X.X ± 0.20

.X°±2°

X.XX ± 0.15 .XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

Third Angle Projection

X. ± 0.30

BF050

Description:-

31 OCT 07

DETAIL

REV

DATE

LYH

DRAWING

RELEASE

31/10/07

PACKING OPTIONS

CORRECTION TO

CHANGED

ORDERING GRID

27/04/09

03/06/09

AMENDMENT TO

CHANGE TO SOLDER

TEMP. INFORMATION

STANDARD DIMENSIONS

30/07/09

08/12/09

2.0mm PITCH PIN HEADER, DUAL ROW,

THROUGH HOLE, VERTICAL

www.globalconnectortechnology.com

Scale

NTS

Material

See Note

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by

LYH

E & OE

Sheet No.

1/1
