D-SUB-212AE37MSBBB04 datasheet, PDF

Datasheet> All Categories > The connector> The connector> D-SUB-212AE37MSBBB04

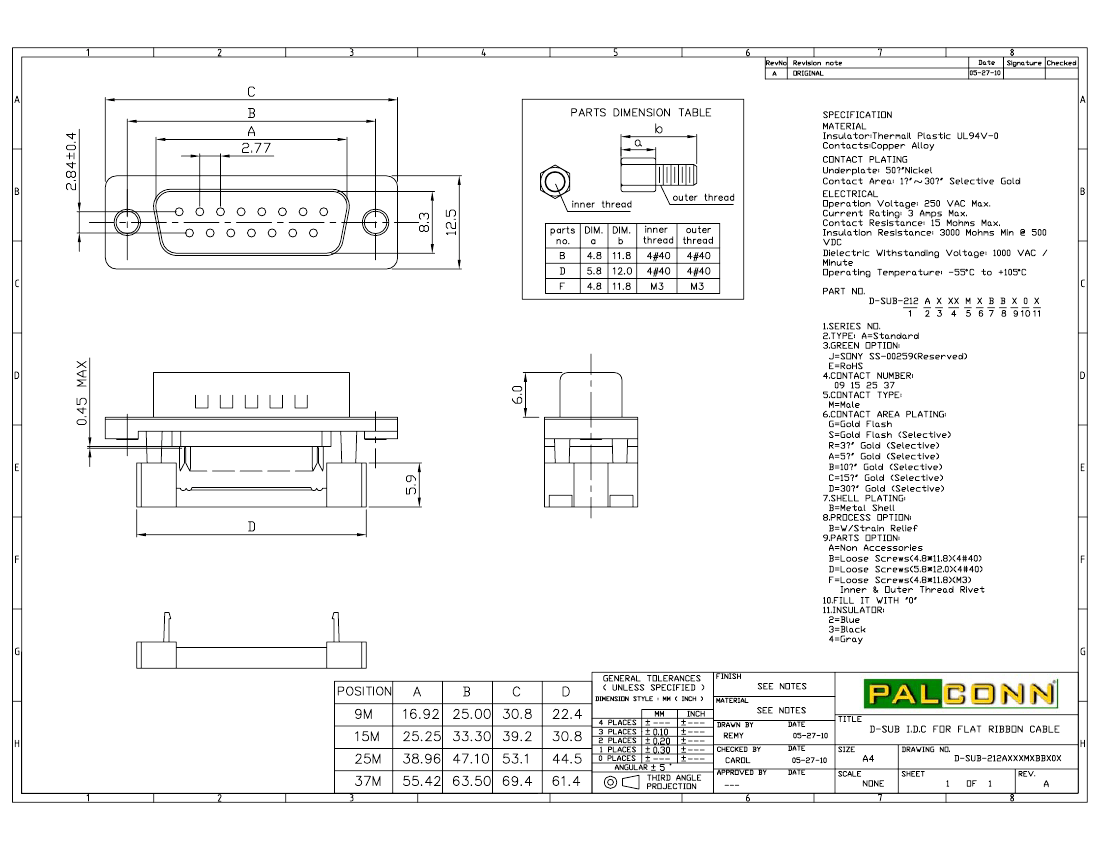

D-SUB-212AE37MSBBB04: DescriptionD Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerPalPilot; Environmental Compliance

Download Datasheet Parametric Compare View All

D-SUB-212AE37MSBBB04 Overview

D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle

D-SUB-212AE37MSBBB04 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	PalPilot
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.492 inch
body length	2.732 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	3000000000 Ω
Insulator color	GRAY
Manufacturer's serial number	212
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	W/STRAIN RELIEF
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	37

Preview

Download Datasheet

View All

D-SUB-212AE37MSBBB04 Related Products

	D-SUB-212AE37MSBBB04	D-SUB-212AE37MGBBB04	D-SUB-212AE09MGBBB04	D-SUB-212AE09MSBBB04	D-SUB-212AE15MGBBB04	D-SUB-212AE15MSBBB04
Description	D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle	D Type Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle	D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle	D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle	D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle	D Type Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, #4-40, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
body width	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch	0.492 inch
body length	2.732 inch	2.732 inch	1.213 inch	1.213 inch	1.543 inch	1.543 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	3000000000 Ω	3000000000 Ω	3000000000 Ω	3000000000 Ω	3000000000 Ω	3000000000 Ω
Insulator color	GRAY	GRAY	GRAY	GRAY	GRAY	GRAY
Manufacturer's serial number	212	212	212	212	212	212
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Installation option 1	#4-40	#4-40	#4-40	#4-40	#4-40	#4-40
Installation option 2	W/STRAIN RELIEF	W/STRAIN RELIEF	W/STRAIN RELIEF	W/STRAIN RELIEF	W/STRAIN RELIEF	W/STRAIN RELIEF
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	37	37	9	9	15	15
Maker	PalPilot	PalPilot	PalPilot	PalPilot	-	-
