A2546WV-2X02P

Description
Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size93KB,1 Pages
ManufacturerJoint Tech Electronic Industrial Co., Ltd.
Download Datasheet Parametric View All

A2546WV-2X02P Overview

Board Connector, 4 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Receptacle

A2546WV-2X02P Parametric

Parameter NameAttribute value
MakerJoint Tech Electronic Industrial Co., Ltd.
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.2 inch
subject depth0.1 inch
body length0.2 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberA2546
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thicknessFLASH inch
Rated current (signal)3 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts4
JOINT TECH ELECTRONIC IND. CO., LTD.
JOY DAY INDUSTRIAL CO., LTD.
UNIT
SCALE
SHEET
TITLE:
mm
1 of 1
DRAWN BY
APPROVED BY
董正一
董正一
2001.02.01 2001.02.01
GENERAL TOLERANCE
ANGLE±
X.X±0.25
X.XX±0.15
DRAW NO.:
X.XXX±0.05
A2546WV-2XNP
B2
B1
B0
REVISE
REVISE
NEW RELEASE
2007.11.09
2006.09.02
2006.02.20

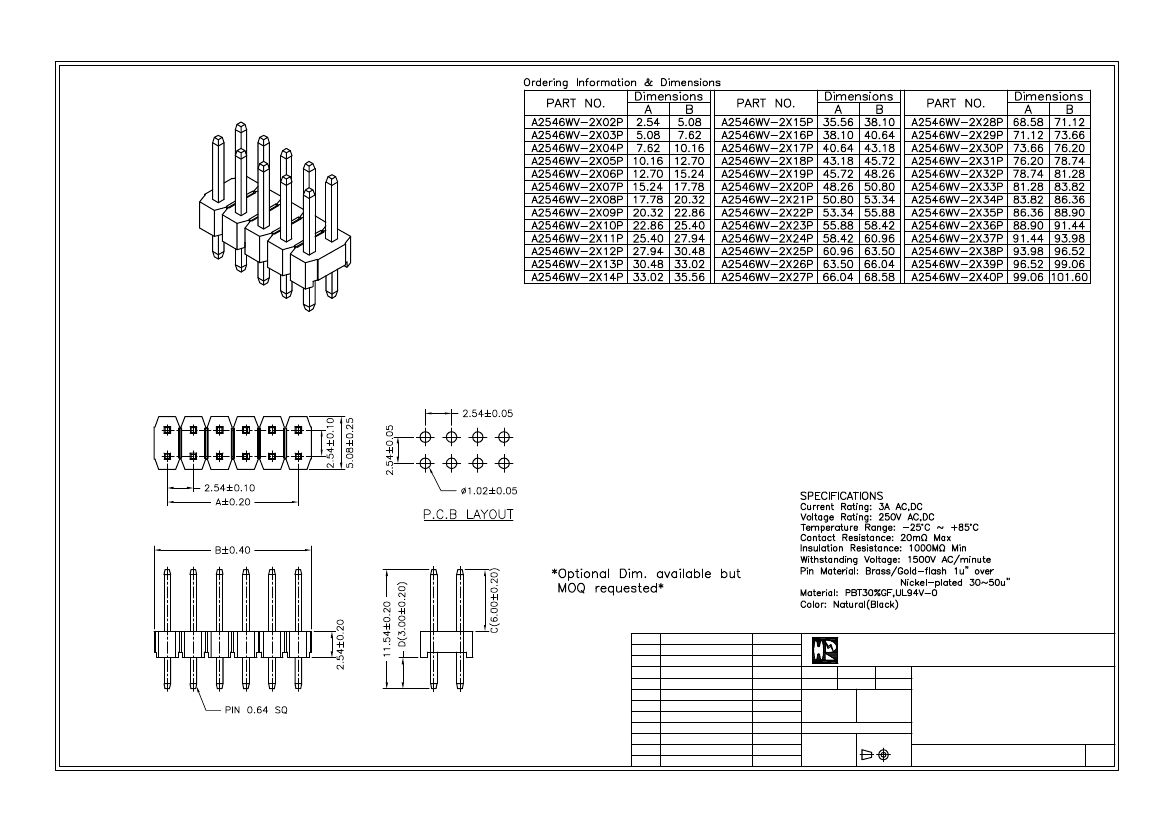

2.54mm PITCH
180°DUAL ROW
PIN HEADER
REV.
B2
REV.
DESCRIPTION
DATE
