FH20-H-13 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> FH20-H-13

FH20-H-13: DescriptionBoard Connector, 13 Contact(s), 1 Row(s), 0.079 inch Pitch, Plug; CategoryThe connector The connector; File Size151KB，1 Pages; ManufacturerMorethanall Co., Ltd.; Websitehttp://www.morethanall.com

Download Datasheet Parametric Compare View All

FH20-H-13 Overview

Board Connector, 13 Contact(s), 1 Row(s), 0.079 inch Pitch, Plug

FH20-H-13 Parametric

Parameter Name	Attribute value
Maker	Morethanall Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	1000 PIECES PER BAG
body width	0.132 inch
subject depth	0.228 inch
body length	1.102 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	LOOSE
contact mode	RECTANGULAR
insulator material	NYLON
Manufacturer's serial number	FH20
Plug contact pitch	0.079 inch
Number of rows loaded	1
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal length
Total number of contacts	13

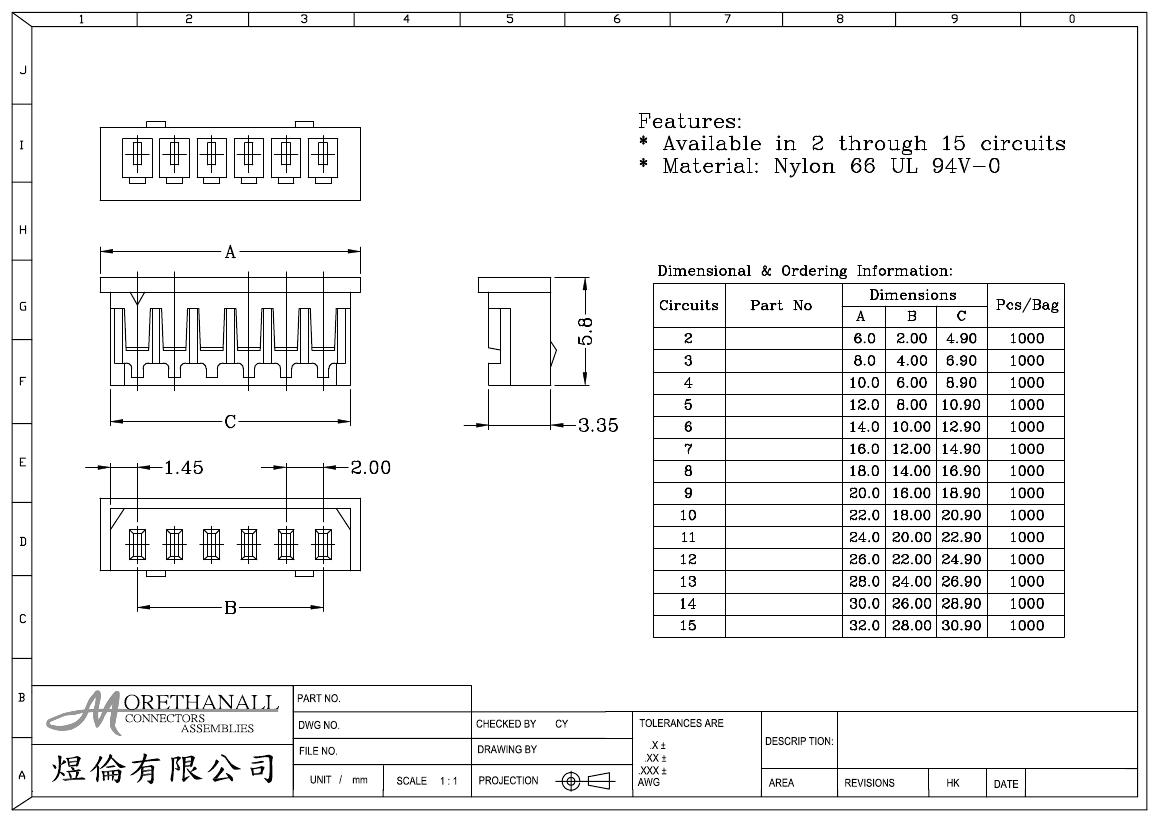

Preview

Download Datasheet

View All

FH20-H-02

FH20-H-03

FH20-H-04

FH20-H-05

FH20-H-06

FH20-H-07

FH20-H-08

FH20-H-09

FH20-H-10

FH20-H-11

FH20-H-12

FH20-H-13

FH20-H-14

FH20-H-15

FH20-H-xx

FH20-H-13 Related Products

	FH20-H-13	FH20-H-04	FH20-H-05	FH20-H-10	FH20-H-12	FH20-H-15	FH20-H-11
Description	Board Connector, 13 Contact(s), 1 Row(s), 0.079 inch Pitch, Plug	Board Connector, 4 Contact(s), 1 Row(s), 0.079 inch Pitch, Plug	Board Connector, 5 Contact(s), 1 Row(s), 0.079 inch Pitch, Plug	Board Connector, 10 Contact(s), 1 Row(s), 0.079 inch Pitch, Plug	Board Connector, 12 Contact(s), 1 Row(s), 0.079 inch Pitch, Plug	Board Connector, 15 Contact(s), 1 Row(s), 0.079 inch Pitch, Plug	Board Connector, 11 Contact(s), 1 Row(s), 0.079 inch Pitch, Plug
Maker	Morethanall Co., Ltd.	Morethanall Co., Ltd.	Morethanall Co., Ltd.	Morethanall Co., Ltd.	Morethanall Co., Ltd.	Morethanall Co., Ltd.	Morethanall Co., Ltd.
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown
Other features	1000 PIECES PER BAG	1000 PIECES PER BAG	1000 PIECES PER BAG	1000 PIECES PER BAG	1000 PIECES PER BAG	1000 PIECES PER BAG	1000 PIECES PER BAG
body width	0.132 inch	0.132 inch	0.132 inch	0.132 inch	0.132 inch	0.132 inch	0.132 inch
subject depth	0.228 inch	0.228 inch	0.228 inch	0.228 inch	0.228 inch	0.228 inch	0.228 inch
body length	1.102 inch	0.394 inch	0.472 inch	0.866 inch	1.024 inch	1.26 inch	0.945 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contactor design	LOOSE	LOOSE	LOOSE	LOOSE	LOOSE	LOOSE	LOOSE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	FH20	FH20	FH20	FH20	FH20	FH20	FH20
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Number of rows loaded	1	1	1	1	1	1	1
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	13	4	5	10	12	15	11
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99
