DBCIDCC424AG1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> DBCIDCC424AG1

DBCIDCC424AG1: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,24 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,LOCKING,BLACK; CategoryThe connector The connector; File Size97KB，1 Pages; ManufacturerAlpha 3 Manufacturing; Environmental Compliance

Download Datasheet Parametric View All

DBCIDCC424AG1 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,24 CONTACTS,PIN,0.1 PITCH,R ANGLE PC TAIL TERMINAL,LOCKING,BLACK

DBCIDCC424AG1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Alpha 3 Manufacturing
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.358 inch
body length	1.499 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	3000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	C4
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

IDC

Industry compatible

Competitively priced

Gold plated contacts

2.54 mm pitch

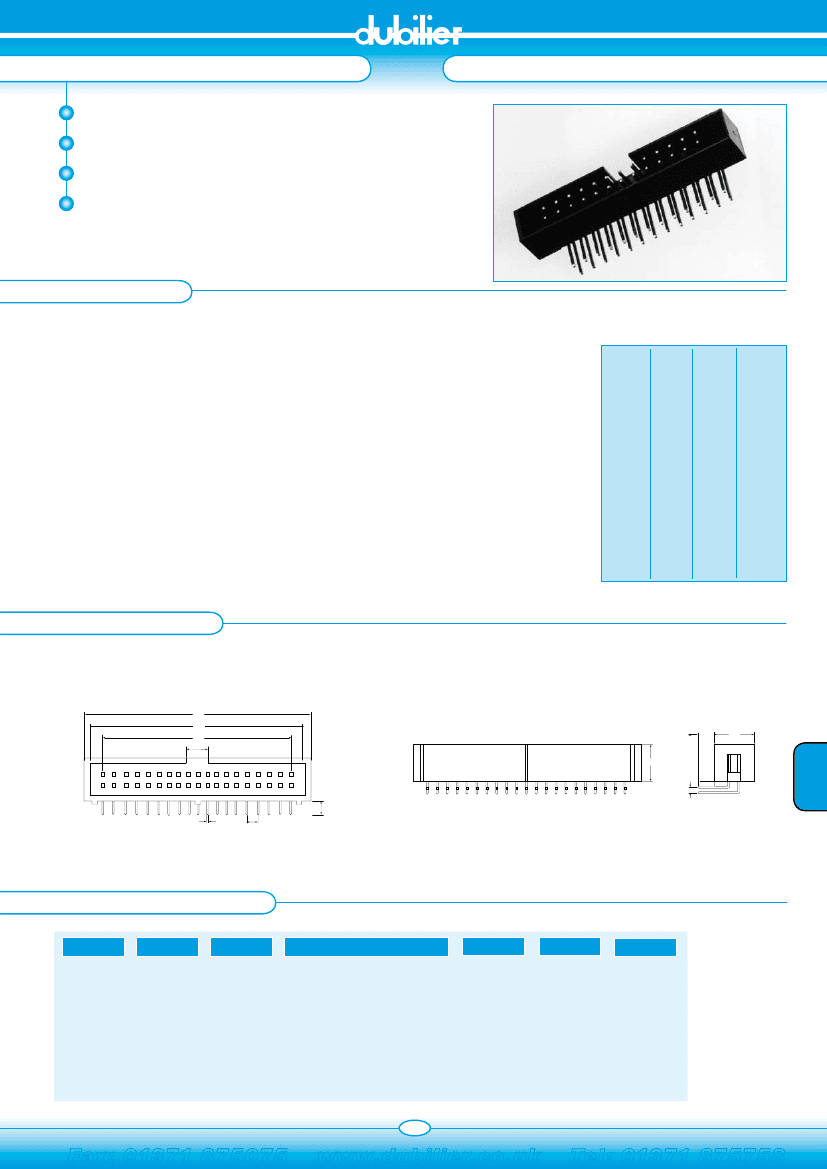

BOX HEADER RIGHT ANGLE

SPECIFICATION

Material & Finish

Contact Material:

Insulator Material:

Current Rating:

Brass

PBT & Glass-Fibre Reinforced UL-94V-0

2 A DC

30M Ω Max

3000M Ω Min

Position

20.30

25.38

27.92

33.00

38.08

40.62

45.70

50.78

58.40

63.48

68.56

71.10

83.80

88.88

18.10

23.18

25.72

30.80

35.88

38.42

43.50

48.58

56.20

61.28

66.36

68.90

81.60

86.88

10.16

15.24

17.78

22.86

27.94

30.48

35.56

40.64

48.26

53.34

58.42

60.96

73.66

78.74

Contact Resistance:

Insulator Resistance:

Dielectric Withstanding

Voltage:

500V AC for One Minute

-40°C to + 105°C

Operating Temperature:

A A

B B

4.4

4.4 4.4

OUTLINE DRAWING

3.6

3.6 3.6

0.64

0.64 0.64

2.54

2.54 2.54

4.4

9.1

9.1 9.1

3.3

9.1

9.1 9.1

SECTION 15

2.54

2.54 2.54

3.6

0.64

2.54

9.1

ORDERING INFORMATION

DBC

Dubilier

Connectors

9.1

2.54

IDC

Connector

Series

26=26way

30=30way

34=34way

40=40way

44=44way

50=50way

60=60way

64=64way

Contact Material

A=Brass

Contact Plating

G= Gold Flash

Colour

1=Black

Nº of Ways

08=8way

10=10way

12=12way

14=14way

16=16way

20=20way

24=24way

323

Fax: 01371 875075

www.dubilier.co.uk

Tel: 01371 875758
