KT2016A38400DCU28T: DescriptionClipped Sine Output Oscillator, 38.4MHz Nom, SMD, 4 PIN; CategoryPassive components oscillator; File Size142KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric Compare View All

KT2016A38400DCU28T Overview

Clipped Sine Output Oscillator, 38.4MHz Nom, SMD, 4 PIN

KT2016A38400DCU28T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Kyocera
Reach Compliance Code	unknown
Other features	TR
Ageing	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	2%
Installation features	SURFACE MOUNT
Nominal operating frequency	38.4 MHz
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	2.0mm x 1.6mm x 0.8mm
Maximum supply voltage	3.45 V
Minimum supply voltage	1.68 V
Nominal supply voltage	2.8 V
surface mount	YES

Preview

Download Datasheet

View All

Temperature Compensated Crystal Oscillators (TCXO)

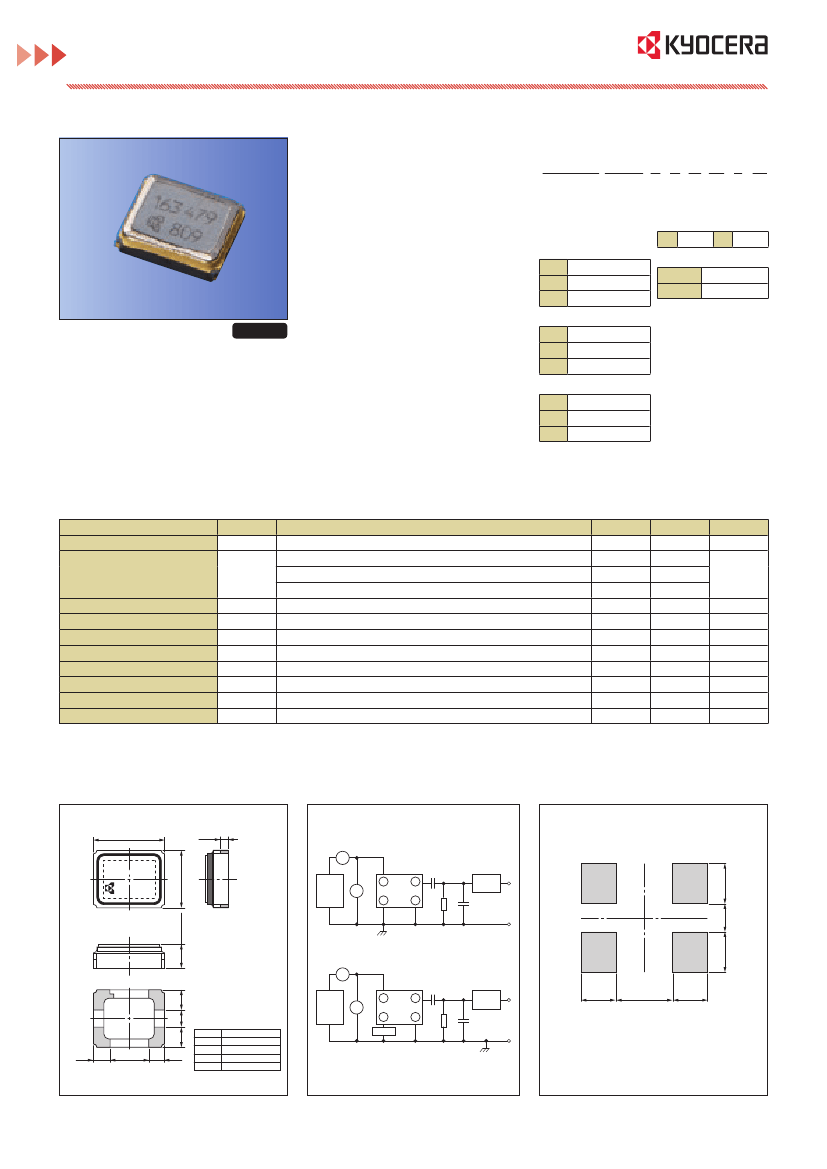

Surface Mount Type TCXO (LSI Type) KT2016 Series

2.0×1.6mm

Features

• Miniature SMD type

(2.0×1.6×0.8mm)

• AFC function available

• Freq. temp. characteristics.

:

±2.0×10

-

6

/

-30

to

+85°C

• 1.68 to 3.45V drive available

• Reflow compatible

How to Order

KT2016A 26000 D C W 28 T xx

①

②

③ ④ ⑤ ⑥ ⑦ ⑧

⑥

Supply Voltage

28

2.8V

30

3.0V

①

Series

②

Output Frequency

③

Freq. Temp. Chrst.

B

C

D

C

E

G

W

V

U

±1.0×10

-

6

±1.5×10

-

6

±2.0×10

-

6

-30°C

-20°C

-10°C

+85°C

+80°C

+75°C

⑦

Voltage Control Range

T

Other

*

TCXO

VCTCXO

Applications

RoHS Compliant

• 3G (CDMA, W-CDMA, TD-SCDMA),

GPRS, GSM, W-LAN, WiMAX

• Low power radio communications

④

Lower Operating Temp.

⑧

Option Code

*

Customer Spec.

⑤

Upper Operating Temp.

Packaging (Tape & Reel 4000 pcs./ reel)

Specifications

Item

Output Frequency Range

Frequency Tolerance

Frequency Aging

Storage Temperature Range

Operating Temperature Range

Voltage Control Range

Supply Voltage

Output Level

Current Consumption

Harmonics

Symbol

fo

f

_tol

f

_age

T

_stg

T

_use

f

_cont

V

CC

Vpp

I

CC

—

Conditions

Standard Frequency: 13, 19.2, 26, 38.4, 52

vs Temperature

vs Load

vs Voltage

Per Year

Min.

13

-2

-0.1

-0.2

-1

-40

-30

±8

1.68

0.8

—

Max.

52

+2

+0.1

+0.2

+1

+85

±15

3.45

—

2

-5

Units

MHz

×10

-

6

×10

-

6

°C

×10

-

6

V

Vp-p

mA

dBc

Positive

Clipped Sine

*

, Load: 10k ohm / / 10pF

*

: A DC-cut capacitor is not embedded in this crystal oscillator. Connect a DC-cut capacitor (≥1nF) to the line-out terminal of the oscillator.

Please contact us for other specifications.

Dimensions

2.0±0.15

#4

#3

1.6±0.15

0.27

(Unit: mm)

Test Circuit

Test circuit 1

Non VC Function

A

Co

POWER

SUPPLY

Vcc

Recommended Land Pattern

(Unit: mm)

Marking Area

Spectrum Analyzer &

Counter, Oscilloscope

FET

PROBE

V

1

TCXO

2

RL

CL

0.8 max.

Test circuit 2

With VC Function

A

Co

Spectrum Analyzer &

Counter, Oscilloscope

FET

PROBE

#1

#2

0.6

POWER

SUPPLY

Vcc

4

V

1

Vcon

TCXO

3

2

RL

0.6

1.2

0.6

0.4

CL

0.4

#4

1.20

#3

0.4

#1pin

#2pin

#3pin

#4pin

Pin Configuration

Vcon/ GND

GND

OUTPUT

+Vcc

0.6

Note: A capacitor of value 0.01µF between V

cc

and GND is recommended.

RL=10kΩ±10% CL=10pF±10%

•

CL include Probe Capacitance

Co: DC Cut Capacitance

0.8

0.4

#1

#2

0.8

4

3

KT2016A38400DCU28T Related Products

	KT2016A38400DCU28T	KT2016A13000BCW30T	KT2016A19200CCV30T	KT2016A38400CEV30T	KT2016A26000DEW28T	KT2016A13000BCV30T
Description	Clipped Sine Output Oscillator, 38.4MHz Nom, SMD, 4 PIN	Clipped Sine Output Oscillator, 13MHz Nom, SMD, 4 PIN	Clipped Sine Output Oscillator, 19.2MHz Nom, SMD, 4 PIN	Clipped Sine Output Oscillator, 38.4MHz Nom, SMD, 4 PIN	Clipped Sine Output Oscillator, 26MHz Nom, SMD, 4 PIN	Clipped Sine Output Oscillator, 13MHz Nom, SMD, 4 PIN
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknow	unknow	unknow	unknown	unknown
Other features	TR	TR	TR	TR	TR	TR
Ageing	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO
frequency stability	2%	1%	1.5%	1.5%	2%	1%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	38.4 MHz	13 MHz	19.2 MHz	38.4 MHz	26 MHz	13 MHz
Maximum operating temperature	75 °C	85 °C	80 °C	80 °C	85 °C	80 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-20 °C	-20 °C	-30 °C
Oscillator type	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE	CLIPPED SINE
Output impedance	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω	10000 Ω
Output level	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V	0.8 V
physical size	2.0mm x 1.6mm x 0.8mm	2.0mm x 1.6mm x 0.8mm	2.0mm x 1.6mm x 0.8mm	2.0mm x 1.6mm x 0.8mm	2.0mm x 1.6mm x 0.8mm	2.0mm x 1.6mm x 0.8mm
Maximum supply voltage	3.45 V	3.45 V	3.45 V	3.45 V	3.45 V	3.45 V
Minimum supply voltage	1.68 V	1.68 V	1.68 V	1.68 V	1.68 V	1.68 V
Nominal supply voltage	2.8 V	3 V	3 V	3 V	2.8 V	3 V
surface mount	YES	YES	YES	YES	YES	YES
Maker	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera	-
